1. Overview of Aluminum Oxide Ceramic Rod
1.1 Definition and Formation

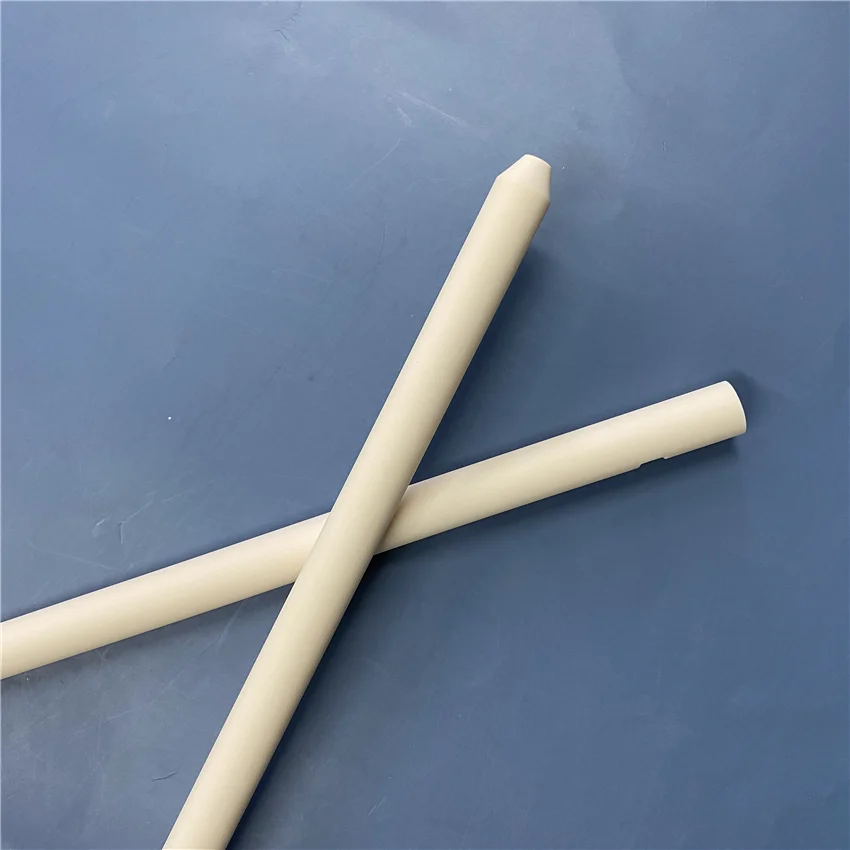

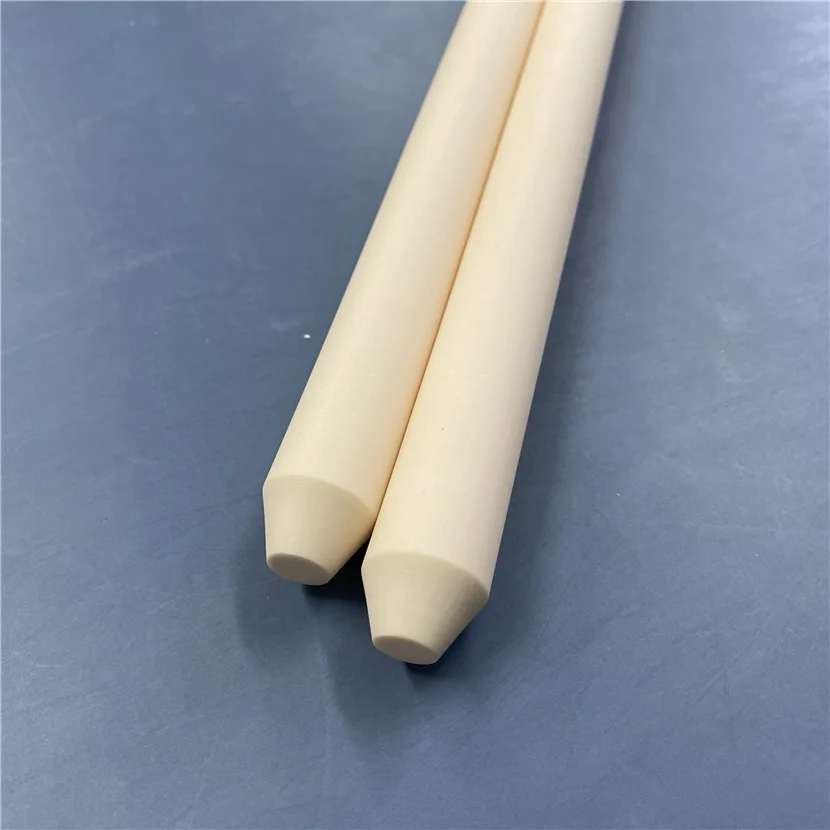

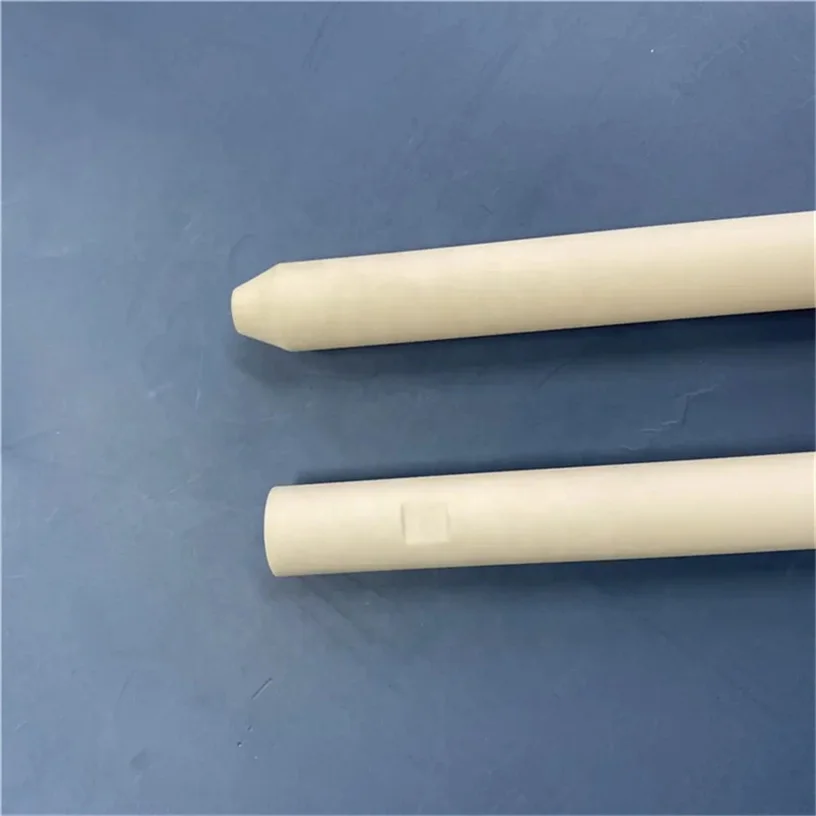

Aluminum oxide ceramic rod, also known as alumina ceramic rod or Al₂O₃ ceramic shaft, is a high-performance advanced structural ceramic component manufactured from high-purity alumina powder. As one of the most widely applied engineering ceramic products, it is universally recognized as a reliable substitute for metal, alloy and plastic parts in harsh working conditions, with balanced performance in mechanical strength, thermal stability and electrical insulation.
The production of alumina ceramic rods follows a precise industrial sintering process. High-purity alumina powder is first uniformly mixed with trace sintering aids and binders, then formed into rod-shaped green bodies via cold isostatic pressing, which ensures consistent internal density and eliminates internal defects. The formed green bodies are then sintered in high-temperature kilns at over 1500℃, where alumina crystals undergo solid-phase diffusion and densification to form a rigid, stable ceramic structure. Finally, precision grinding, polishing and dimensional inspection are carried out to achieve tight tolerance and fine surface finish, meeting the assembly requirements of different industrial scenarios.
1.2 Classification and Grade Standards
Based on alumina purity and performance positioning, industrial alumina ceramic rods are mainly divided into two mainstream grades: 95% aluminum oxide ceramic rod and 99% high-purity aluminum oxide ceramic rod.
95% Aluminum Oxide Ceramic Rod: With 95wt% Al₂O₃ content and a small amount of sintering modifiers, this is the most cost-effective general-purpose grade. It balances reliable performance and moderate manufacturing cost, and adapts to most conventional industrial working conditions. Sintered at 1580–1650℃, it meets general industrial advanced ceramic quality standards, and is the most widely used model in wear-resistant parts, insulating components and conventional high-temperature fixtures.
99% High-Purity Aluminum Oxide Ceramic Rod: Featuring 99wt% ultra-high-purity Al₂O₃ with extremely low impurity content, this is the high-end grade for precision and extreme working environments. Sintered at 1700–1800℃, it has significantly optimized density, hardness, high-temperature stability and corrosion resistance, complying with high-grade precision ceramic quality specifications. It is the preferred material for high-temperature furnace core components, precision instrument parts, semiconductor processing fixtures and other high-demand scenarios.
Both grades support full customization of diameter, length and dimensional tolerance, with optional secondary processing such as mirror polishing, glazing and surface metallization.
2. Core Characteristics of Aluminum Oxide Ceramic Rod
2.1 Physical & Mechanical Characteristics
The core competitive advantages of alumina ceramic rods come from their excellent mechanical properties and stable physical performance, which are derived from the dense, uniform sintered alumina crystal structure.
High densification and low porosity: Different from porous mineral materials, sintered alumina ceramics have a nearly fully dense internal structure. The 95% grade has a volume density of ≥3.65 g/cm³ with extremely low open porosity, while the 99% grade reaches ≥3.85 g/cm³ with near-zero water absorption, effectively preventing the penetration of liquid, gas and impurities during operation.
Superior wear and scratch resistance: Alumina ceramic has extremely high surface hardness, far exceeding ordinary metal and alloy materials. The 95% grade has a Rockwell hardness of HRA 85–87, and the 99% grade reaches HRA 88–92. In long-term friction working conditions, its service life is 5–10 times that of traditional steel parts, greatly reducing equipment maintenance frequency and replacement costs.
Stable structural load-bearing capacity: Alumina ceramic rods maintain excellent structural stability under static and dynamic stress. The flexural strength of the 95% grade reaches 280–320 MPa, and the 99% grade reaches 300–350 MPa, with excellent dimensional stability and no deformation under long-term load. The inherent limitation is the brittleness of ceramic materials, which is not suitable for strong impact scenarios, and can be optimized through reasonable structural design.
Excellent electrical insulation performance: As a classic high-insulation material, alumina ceramic has extremely low dielectric loss and high breakdown voltage strength. Both 95% and 99% grades maintain stable insulation performance at room temperature and high temperature, making them an ideal choice for high-voltage components, electronic device substrates and insulating structural parts.
2.2 Chemical & Thermal Properties
Alumina ceramic rods exhibit exceptional environmental stability in high-temperature and corrosive working conditions, which is an irreplaceable advantage over most metal and polymer materials.
Outstanding high-temperature resistance: Alumina ceramic maintains stable mechanical and physical properties under continuous high temperature. The 95% grade supports long-term stable operation at 1600℃, and the 99% grade can work reliably at up to 1700℃ for a long time. With low thermal conductivity and good thermal shock resistance, it is widely used in high-temperature furnace tubes, heating element supports, sintering fixtures and other components.
Excellent chemical inertness: Alumina ceramic has strong corrosion resistance to most acids, alkalis, salts and organic solvents. It does not react with most chemical media at room temperature and even at medium-high temperature, and will not precipitate harmful impurities, ensuring the cleanliness and stability of the working process. Only hydrofluoric acid and high-temperature molten strong alkali can cause obvious corrosion to it.
Non-toxic and environmentally friendly: High-purity alumina ceramic is a non-toxic, odorless and pollution-free inorganic material with stable chemical properties. It complies with general industrial safety and food contact standards, and can be safely used in food processing, medical equipment and other scenarios with high hygiene requirements.
Alumina ceramic rods maintain stable mechanical and physical properties under continuous high temperature, delivering outstanding thermal performance for industrial thermal scenarios.
The 95% grade supports long-term stable operation at 1600℃, and the 99% grade can work reliably at up to 1700℃ for a long time. With moderate thermal conductivity and good thermal shock resistance, it is widely used in high-temperature furnace tubes, heating element supports, sintering fixtures and other components, serving as an efficient and reliable high-temperature structural material for industrial thermal processing scenarios.
3. Key Advantages of Alumina Ceramic Rods
3.1 Superior Wear Resistance with Extended Service Life
With hardness and wear performance far higher than common metals, alumina ceramic rods deliver 5–10 times longer service life than traditional steel parts in friction and wear conditions, reducing equipment downtime, maintenance frequency and replacement costs, with lower total cost of ownership in long-term operation.
3.2 Stable Performance in Harsh Environments
It adapts to multiple harsh working conditions including high temperature, chemical corrosion and high-voltage insulation at the same time, maintaining stable operation where metals and plastics fail, and is suitable for complex and extreme industrial scenarios.
3.3 High Dimensional Precision & Clean Surface
Precision machining can achieve micron-level tolerance with a high-gloss, burr-free surface. No harmful substances are precipitated during operation, meeting the requirements of precision assembly and clean working conditions, and adapting to high-end fields such as semiconductors and medical care.
3.4 Cost-Effective High-Performance Material
Compared with special ceramics such as silicon carbide and silicon nitride, alumina ceramic has abundant raw material reserves and mature production technology. It delivers excellent comprehensive performance at a more competitive cost, and is the preferred general-purpose solution for high-performance ceramics in the industrial field.
4. Industry-Specific Applications
4.1 Mechanical Equipment Manufacturing
Used as wear-resistant shafts, plungers, guide rods and positioning pins to replace stainless steel and bearing steel, applied in pump valves, textile machinery and packaging equipment, greatly extending the service life of wearing parts and reducing operation and maintenance costs.
4.2 High-Temperature Thermal Industry
Serving as high-temperature furnace support rods, thermocouple protection tubes, sintering fixtures and heating element carriers, used in high-temperature kilns for metallurgy, electronics and new material sintering, working stably for a long time under temperatures above 1600℃.
4.3 Electrical & Electronic Industry
Applied as high-voltage insulating rods, electronic component support columns and semiconductor processing fixtures. With excellent high-temperature insulation performance and clean surface, it fits fields such as high and low voltage electrical appliances, semiconductor packaging and photovoltaic manufacturing.
4.4 Chemical & Environmental Protection
Used as stirring rods, pump shafts and filter supports in corrosive working conditions, resistant to acid and alkali media, suitable for chemical reactions, sewage treatment, new energy battery production and other corrosive environments.
4.5 Medical & Precision Instrument
Used for medical equipment structural parts, precision instrument guide rods and detection probe housings, meeting the requirements of high precision and high hygiene level with its non-toxic, wear-resistant and high dimensional accuracy characteristics.
