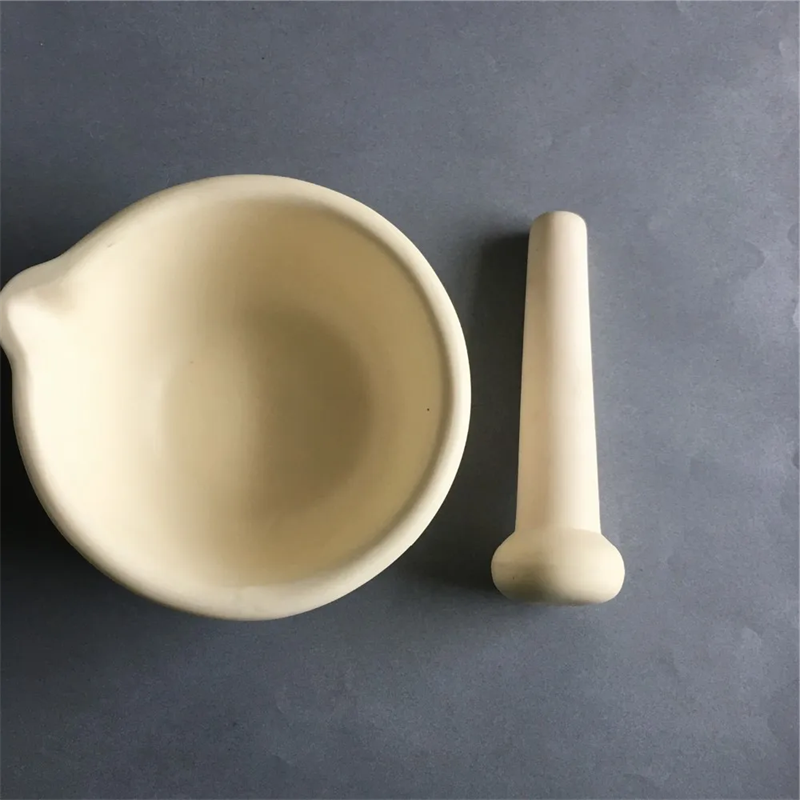

Getting reliable lab results really hinges on having particles evenly distributed throughout samples, something that happens when we properly mix them up. When scientists grind stuff manually using those old fashioned porcelain mortars and pestles, they actually get to feel how fine or coarse the particles are becoming. This hands on approach makes all the difference for things that might melt or change if exposed to too much heat, which is why many researchers still prefer this method despite newer equipment being available. The folks at ACS Sustainable Chemistry wrote about this back in 2022, pointing out how mechanical grinders can sometimes cook the sample instead of just breaking it down.
The smooth, non porous nature of porcelain helps stop contamination from happening between different samples, which matters a lot in labs that need to meet ISO 17025 standards. Glazed porcelain doesn't react chemically with acids or bases during processing, something that agate and stainless steel can't claim. Because of this dependable performance, most pharmaceutical labs tend to go with porcelain for making API powders. Some recent tests on materials back this up, showing why over four out of five labs in the industry have made the switch to porcelain equipment.
When dealing with sensitive stuff like plant extracts or water-containing crystals, hand grinding actually does a better job at keeping samples intact. The problem with mechanical grinders is they create heat through friction. Studies show this heat often goes above 40 degrees Celsius in around two thirds of situations, and that kind of warmth changes what's chemically going on in the sample. Porcelain is different because it doesn't conduct heat so well, so temperatures don't climb as much during processing. Researchers back in 2023 ran tests comparing methods and discovered that when preparing samples for X-ray analysis, manual grinding gave results that were about 22 percent purer. This makes a real difference for those working in geological research where sample quality matters most.
Laboratory-grade porcelain consists of kaolin (40–50%), feldspar (25–35%), and quartz (20–30%). Fired at 1,300–1,400°C, this blend undergoes vitrification, forming a dense, glass-like structure with less than 0.5% porosity. According to a 2023 Material Analysis Report, this near-zero porosity prevents sample absorption, maintaining purity during grinding.
With a Mohs hardness of 7–8, porcelain resists abrasion better than borosilicate glass (5.5) or acrylic (2–3). Its alumina-silicate matrix is chemically inert across pH 1–14 and resistant to organic solvents, making it ideal for preserving sample integrity in chromatography and spectroscopy applications.
Porcelain’s low thermal expansion coefficient (4.5 × 10⁻⁶/°C) reduces cracking risks during exothermic reactions. Capable of withstanding temperatures up to 1,000°C, it outperforms polymer tools that deform above 80°C. This stability supports downstream processes like calcination or ashing without tool failure.
Porcelain mortars and pestles work by combining downward pressure with side-to-side grinding motions to break down materials. When someone presses down on the pestle, it cracks apart crystal formations inside the material being ground. At the same time, moving the pestle back and forth across the surface shears these already broken pieces into even smaller fragments. According to research published in the Journal of Materials Processing last year, this combination approach creates about 40 percent better consistency compared to just pressing straight down or grinding sideways alone. What makes porcelain particularly effective is its rough inner surface which contains tiny abrasive spots. These help grind materials rated at 6 or below on the Mohs scale without adding any metal particles to the mix, something that matters a lot when purity is important for certain applications.
| Material | Avg. Particle Size Achieved (µm) | Contamination Risk | Thermal Stability Threshold |
|---|---|---|---|
| Porcelain | 15-20 | Low | 450°C |
| Agate | 10-15 | None | 300°C |
| Stainless Steel | 25-50 | High (Fe, Cr ions) | 800°C |
While agate achieves finer powders, porcelain balances performance and durability—delivering 85% of agate’s efficiency with 50% greater resistance to impact fractures. For heat-sensitive samples, porcelain limits temperature spikes to under 12°C during grinding, avoiding the thermal issues common with metal systems.
Skilled technicians achieve ±5% particle size consistency compared to ±18% among novices. Optimal technique includes:
Improper cleaning accounts for 72% of contamination incidents in lab settings. To maintain purity:
Per ASTM C242-22, rapid temperature shifts reduce porcelain’s fracture resistance by 40%. Key handling practices include:
Manual porcelain grinding excels in three key scenarios:
Despite widespread automation, a 2024 lab equipment survey revealed that 83% of pharmaceutical QC labs continue to use porcelain mortars for final API verification.
Using porcelain tools helps keep medicinal compounds free from contamination during processing, which matters a lot when it comes to how well drugs work. These tools don't react chemically, so they're great for grinding substances that absorb moisture easily, such as ascorbic acid, without causing unwanted oxidation reactions. Looking at research published in the Journal of Pharmaceutical Innovation back in 2022, scientists found something interesting about manual grinding methods. They observed around 15 percent improvement in particle size distribution for those sensitive active pharmaceutical ingredients that can't handle much heat. This kind of consistency actually makes a real difference in how predictable a drug's effects will be once inside the body.
Many geologists prefer using unglazed porcelain mortars when they need to grind up rock samples for those XRF and XRD tests. The porcelain has a Mohs hardness around 6.5 which makes it great because it doesn't contaminate the sample with metals like stainless steel would, especially important when working with stuff like chromite or garnet. Some recent research comparing different methods found that this approach keeps about 98 or 99 percent accuracy when looking for those really tiny amounts of rare earth elements down there under 5 parts per million. That kind of precision matters a lot for accurate geological analysis.
The non porous nature of porcelain makes it great for grinding spices and plant materials without retaining oils, which solves a big problem with cross contamination during lipid analysis. Labs report getting particles below 100 microns most of the time, and this leads to about 34 percent speedier extraction of carotenoids than what happens with plastic grinders. Plus, porcelain can handle frozen samples right out of the freezer at around minus 20 degrees Celsius, so those tricky volatile organic compounds stay intact for proper phytochemical testing. This really matters for researchers who need reliable results from their sample prep work.
