CE RoHS Certificate air Treatment 220V 60g Quartz Tube Ozone Generator Module

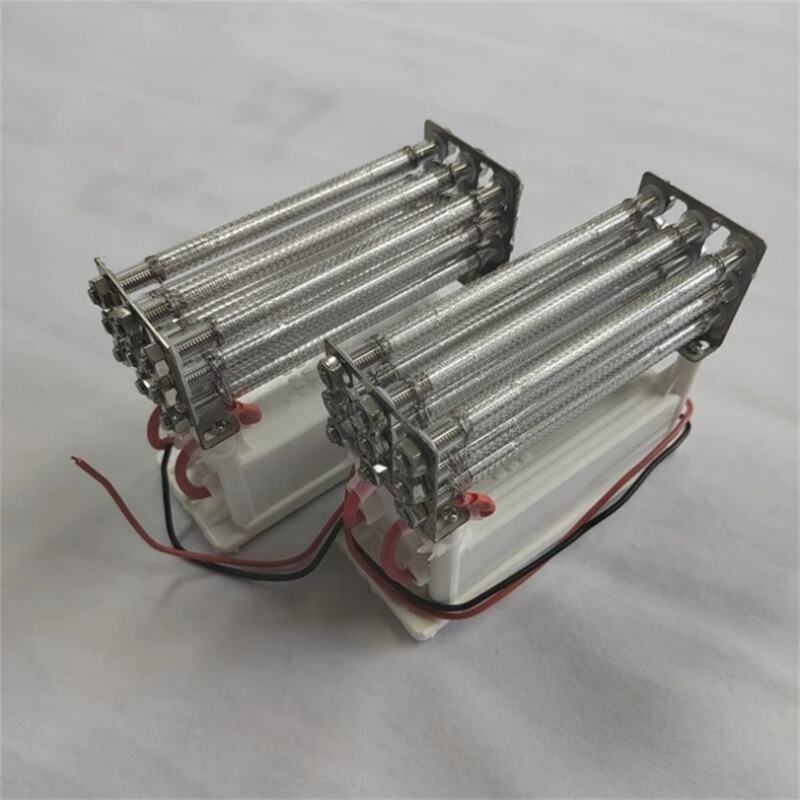

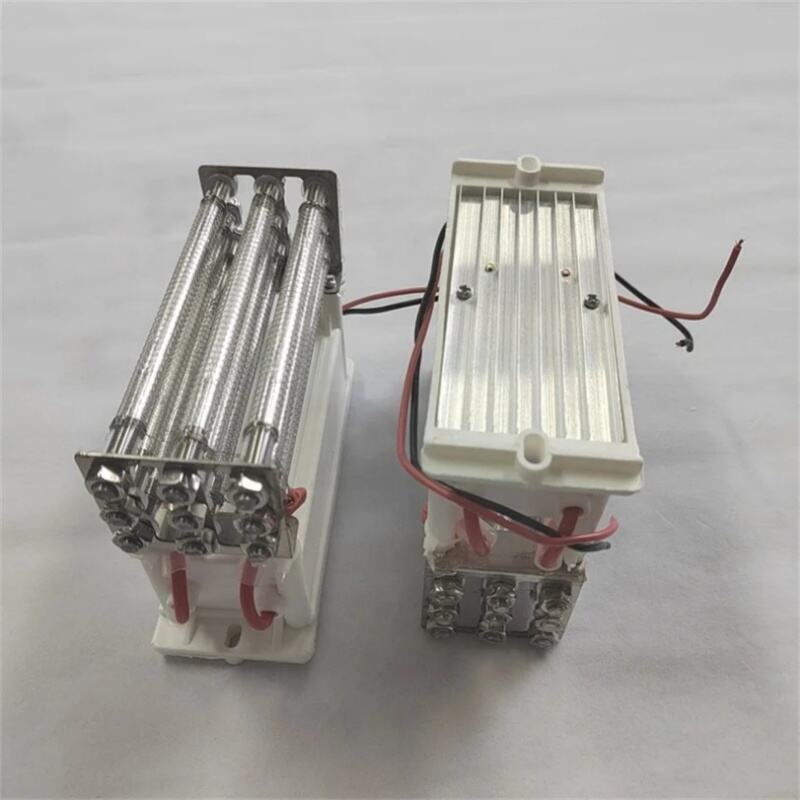

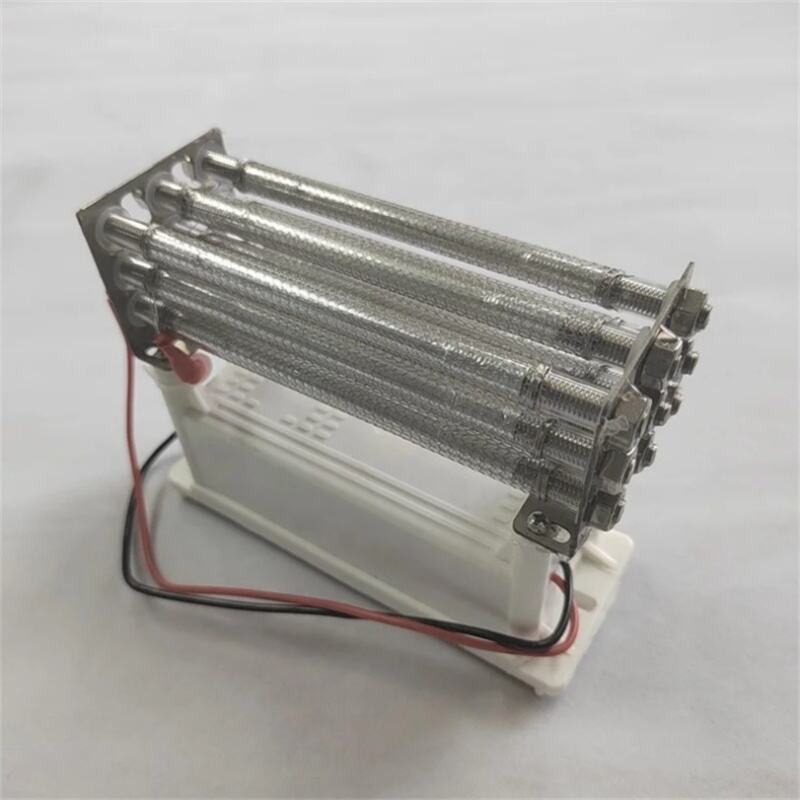

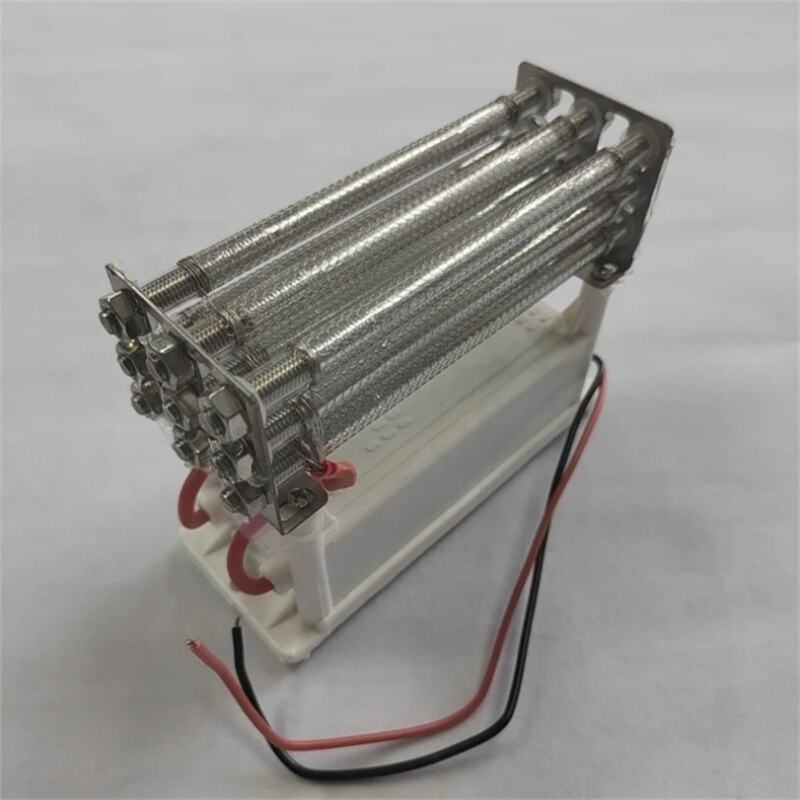

Main Component:High-purity transparent quartz discharge tubes, aluminum mesh electrode layers, integrated high-voltage transformer, insulated plastic housing and fixed wiring terminals, forming an all-in-one modular ozone generating unit as shown in the picture.

Porosity:Airtight dense quartz tube body with zero internal micro-pores, fully separating air flow and high-voltage discharge zones to prevent ozone leakage.

Shape Form:Assembled integrated module with standard red & black power wires, built-in multi-group quartz tubes supporting stable 60g/h ozone output, rated for 220V AC input voltage.

1.2 Production Craft & Market Positioning

Processing Type:

Quartz tube precision cutting → metal electrode coating → high-voltage circuit welding → insulation sealing → 48-hour aging performance testing

Industrial Standard:

Passed CE electromagnetic compatibility certification and RoHS hazardous substance restriction certification, meeting global electrical safety standards for air purification equipment

Core Positioning:Ready-to-install core ozone generating component for air treatment equipment manufacturers, designed for medium-space deodorization, microbial inhibition and air purification projects

2. Core Characteristics

2.1 Stable 60g/h Ozone Output

Ozone Parameter:Continuous steady 60 grams per hour ozone production under rated 220V power supply, small fluctuation range of output volume
Air Matching:Matched with external air pump to adjust ozone concentration flexibly, adapt to different space purification demands

2.2 High Purity Quartz Tube Discharge Structure

Tube Property:High temperature resistant quartz raw material, anti-oxidation and not easy to age under long-term high-voltage discharge
Electrode Layout:Aluminum mesh evenly wrapped outside quartz tubes, uniform discharge surface to avoid local overheating and tube breakdown

2.3 220V Fixed Voltage Operating System

Voltage Matching:Direct 220V alternating current input, no extra voltage converter required, simplify equipment assembly structure
Circuit Protection:Built-in over-current and overheat protection circuit, automatically cut off power when abnormal temperature or current occurs

2.4 Complete Safety Certification Standard

Certification Attribute:All raw materials and finished modules pass RoHS test with no restricted heavy metals; whole unit meets CE EMC safety test standards
Insulation Design:Plastic sealed shell isolates high-voltage components, prevent electric leakage risk during equipment operation

3. Advantages of Quartz Tube Module

3.1 Long Service Life & Stable Continuous Operation

Durability Advantage:Quartz tube structure avoids rapid aging of ceramic ozone plates, service life 3–5 times longer than flat ozone modules
Continuous Work:Support 24-hour non-stop running without obvious ozone output attenuation, suitable for long-cycle air treatment projects

3.2 High Ozone Conversion Efficiency & Low Energy Consumption

Energy Saving Benefit:Uniform discharge design improves oxygen-to-ozone conversion rate, reduce power loss compared with ordinary ozone generating parts
Space Efficiency:Compact integrated module saves internal installation space of finished air treatment machines, optimize equipment structural design

3.3 Safe & Low Maintenance Operation

Safety Performance:Built-in dual protection circuit plus fully insulated housing, effectively reduce electric shock and short-circuit hidden dangers
Low Maintenance:Smooth quartz tube surface is not easy to accumulate dust, only simple regular air blowing cleaning required, no frequent part replacement

3.4 Global Compatibility & Customization Support

Voltage Adaptation:Standard 220V model fits power grid of most European, Southeast Asian and Middle Eastern countries
Customization Option:Adjustable quartz tube quantity, ozone output value and wire length according to customers’ finished equipment design requirements

4. Application of Quartz Tube Module

4.1 Commercial Space Air Purification Equipment

Core Application:matched with large commercial air disinfection machines for shopping malls, hotels and office buildings
Working Demand:Eliminate peculiar odor, inhibit airborne microorganisms and purify circulating air in medium-sized closed spaces

4.2 Water & Wastewater Treatment Equipment

Usage Scenario:Support industrial water sterilization, swimming pool water disinfection and domestic sewage deodorization treatment machines
Environment Adaptation:Stable ozone supply for water oxidation, decolorization and microbial removal processes

4.3 Agricultural & Cold Storage Disinfection Devices

Matching Equipment:Cold storage fresh-keeping ozone machines, farm breeding house air disinfection equipment
Value Output:Suppress mold growth and harmful bacteria in storage and breeding spaces, extend product fresh-keeping cycle

4.4 Industrial Workshop & Logistics Sterilization Equipment

High-End Matching:Food processing workshop air disinfection machines, logistics warehouse deodorization and disinfection integrated equipment
Special Demand:Meet large-space long-time continuous disinfection requirements for food, logistics and light manufacturing industries

5. Technical Data

                                                                                          Development History

                                                                                        Patents and certification

We’ve obtained various global certifications including CE, EMC, LVD, RoHS, FDA, MSDS, ISO 9001, SGS and TUV. We also own eight registered trademarks and forty technical patents to support independent R&D.

Our proprietary core technologies run through all product lines: porous ceramics, industrial ceramic components, special glass, metallized ceramics, liquid absorption cotton, ozone generators and silicone goods. All products are manufactured in strict accordance with international quality standards, delivering reliable and high-performance solutions that have gained wide recognition and market trust worldwide.

                                                                                               Package

We adopt scientific and standardized packaging solutions tailored to product characteristics to effectively prevent collision, extrusion, dust and moisture damage. With mature global transportation system and strict shipment inspection procedures, we ensure all products remain intact and stable during long-distance delivery, providing customers with safe, efficient and reliable one-stop logistics service.
