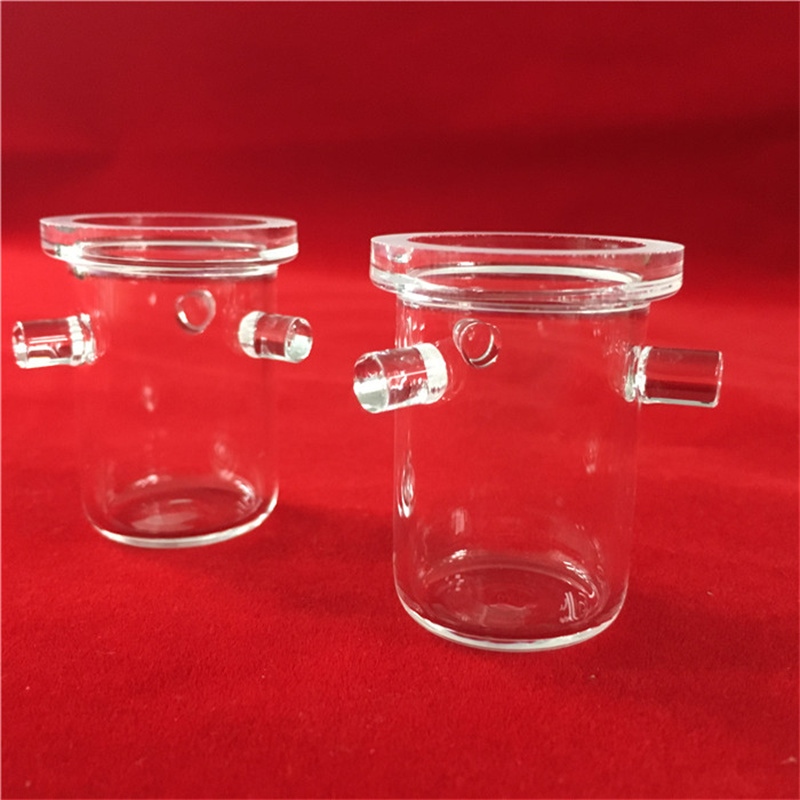

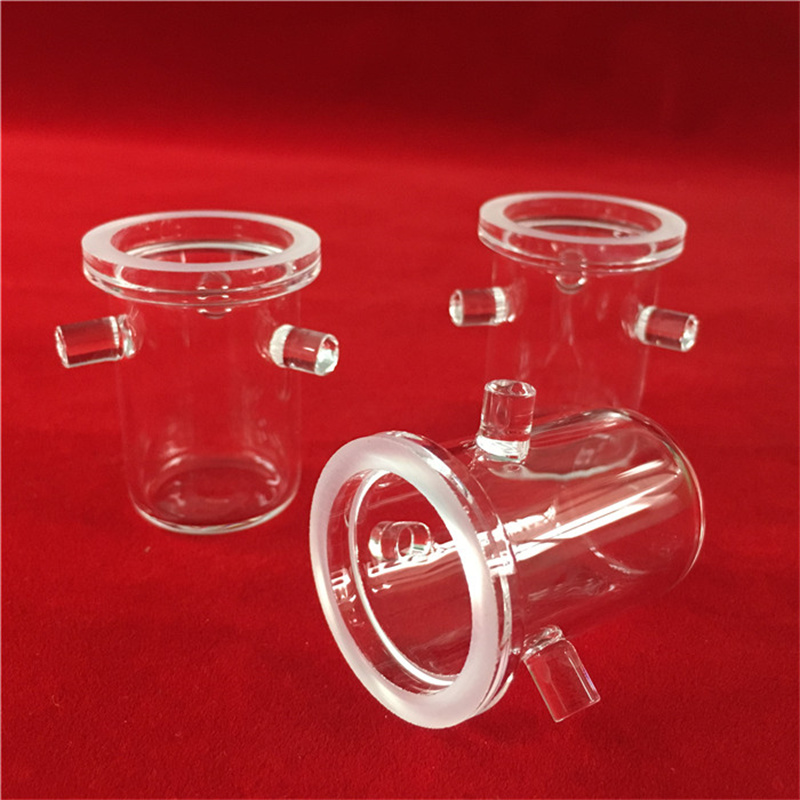

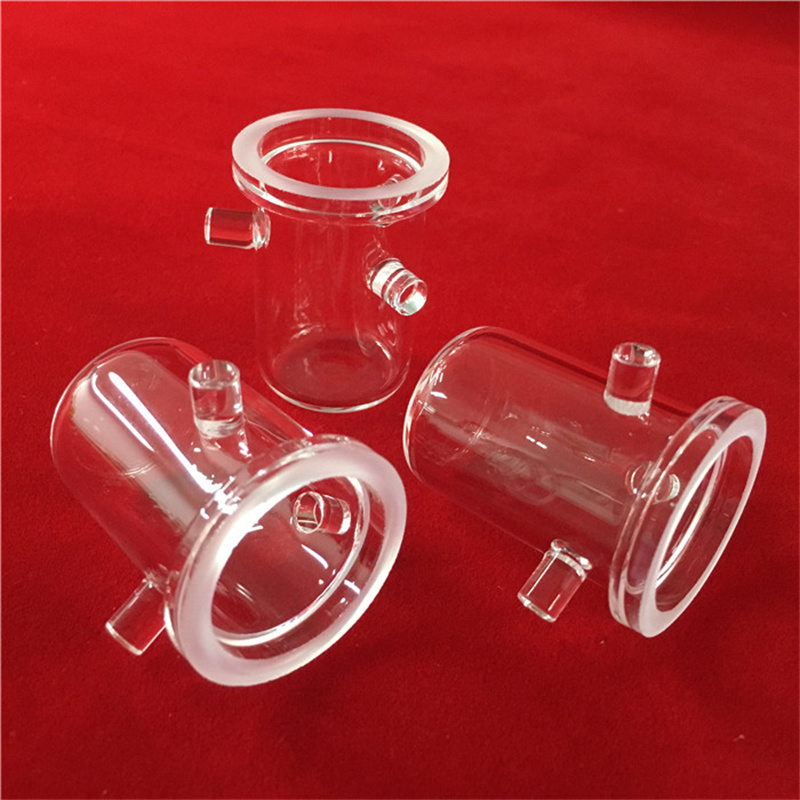

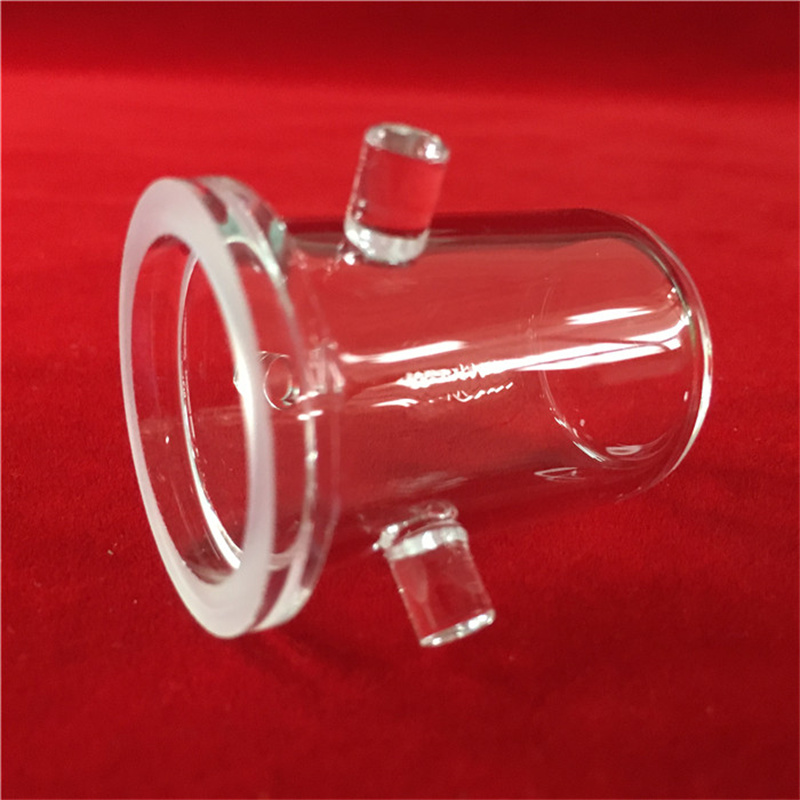

It is a high-purity laboratory or industrial container made from fused silica quartz glass, designed for high-temperature application.
Brief
It is a high-purity laboratory or industrial container made from fused silica quartz glass, designed for high-temperature application.
Details
1) material:High-purity fused quartz
2)Temperature resistance: withstands temperature up to:1200°C
3)Chemical inertness: Resistant to acids, water, and most corrosive substances.
4)Optical clarity: Some variants are teansparent, allowing visual monitoring of reactions.
5)Shapes & Sizes:Available in cylindrical, conical, or custom designs .
Parameter
| Technical Data of Quartz Crucibles | ||
| Property Content | Unit | Property Index |
| Density | g/cm³ | 1.9 - 2.0 |
| Tensile Strength | Pa(N/m²) | 4.9×10⁷ |
| Compression Strength | Pa | >1.0×10⁹ |
| Coefficient of Thermal Expansion | cm/cm/℃ | 5.4×10⁻⁷ |
| Thermal Conductivity | W/m/℃ | Low |
| Specific Heat | J/kg/℃ | 650 |
| Softening Point | ℃ | 1600 |
| Annealing Point | ℃ | 1100 |
