Aluminum nitride (AlN) is not only an inorganic material, but also considered a key material in electronic packaging and semiconductor applications. Its crystal structure dominated by covalent bonds makes it a hexagonal diamond-like nitride and exhibits a wide bandgap (6.2 eV) and significant exciton binding energy, making it a direct bandgap semiconductor. The thermal conductivity of aluminum nitride is as high as about 320W/m·K, comparable to BeO and SiC, and more than 5 times that of Al2O3. At the same time, its thermal expansion coefficient is compatible with silicon and gallium arsenide, further enhancing its application potential in the field of electronic packaging. In addition, aluminum nitride exhibits excellent electrical insulation, mechanical and optical properties, and is non-toxic and resistant to high temperature corrosion, bringing new hope to the semiconductor industry

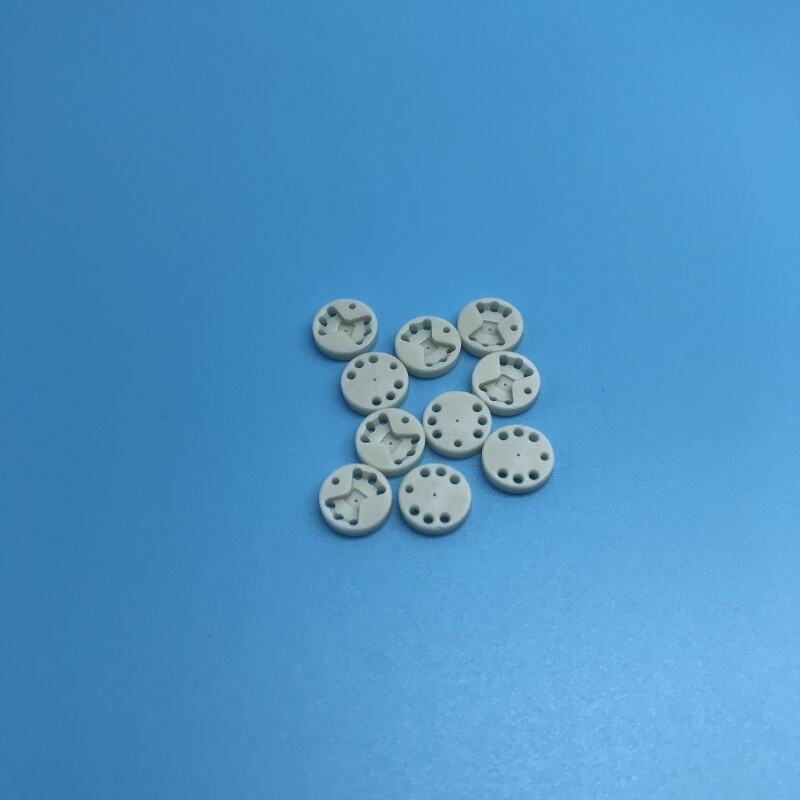

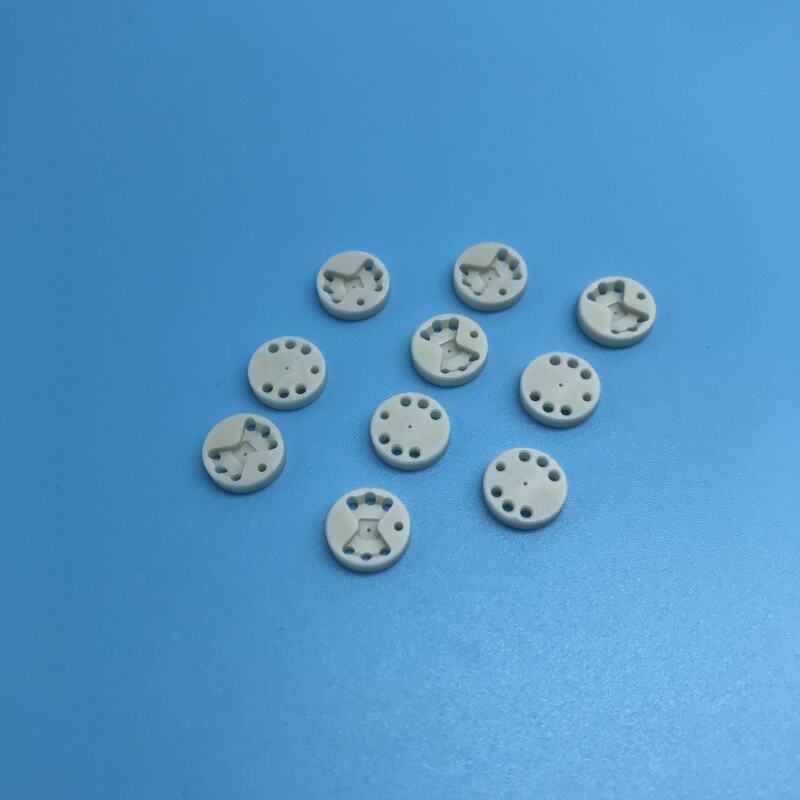

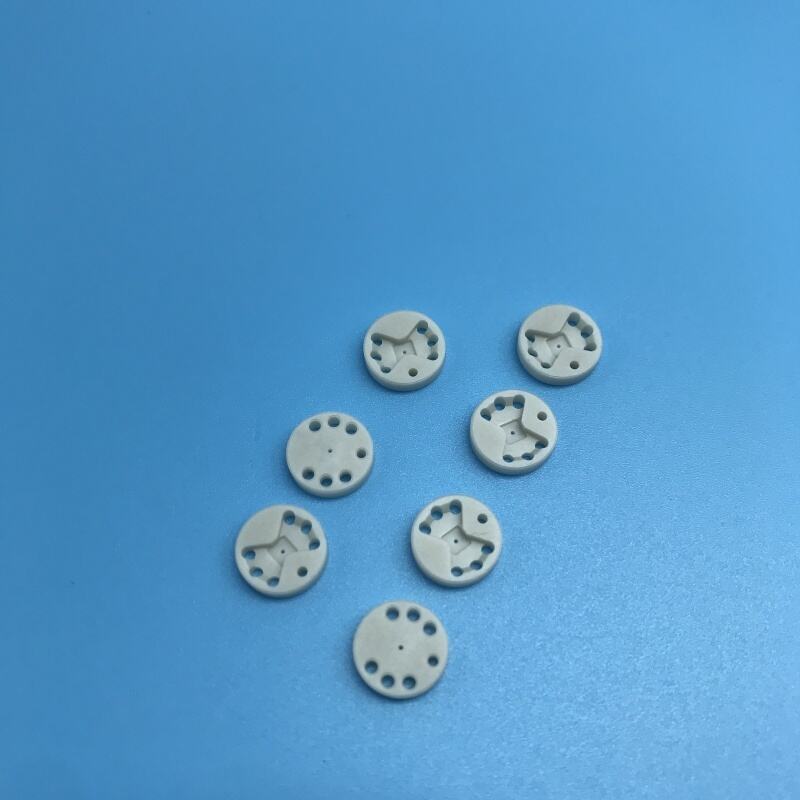

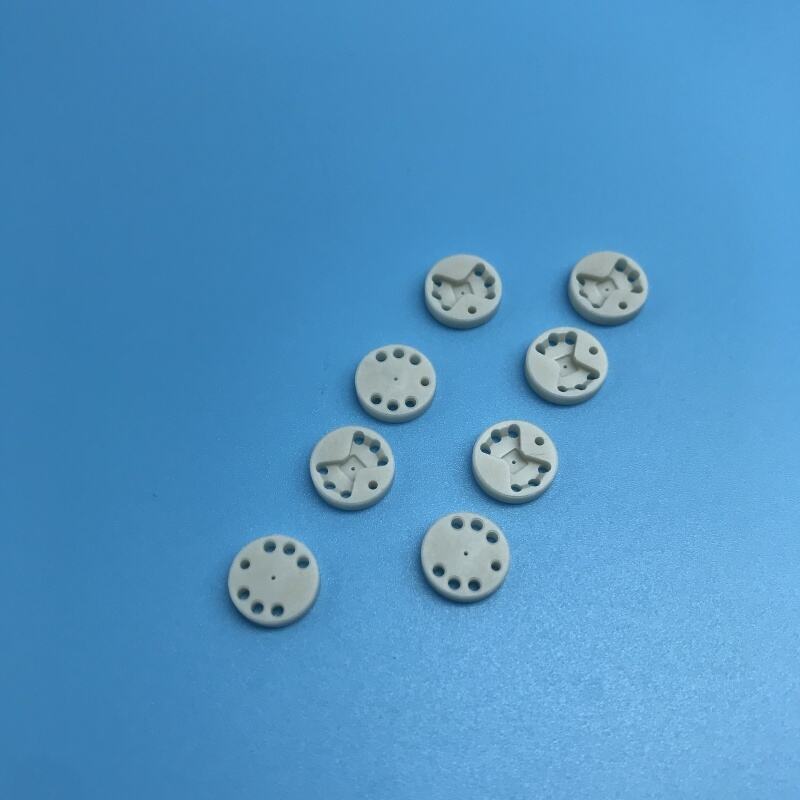

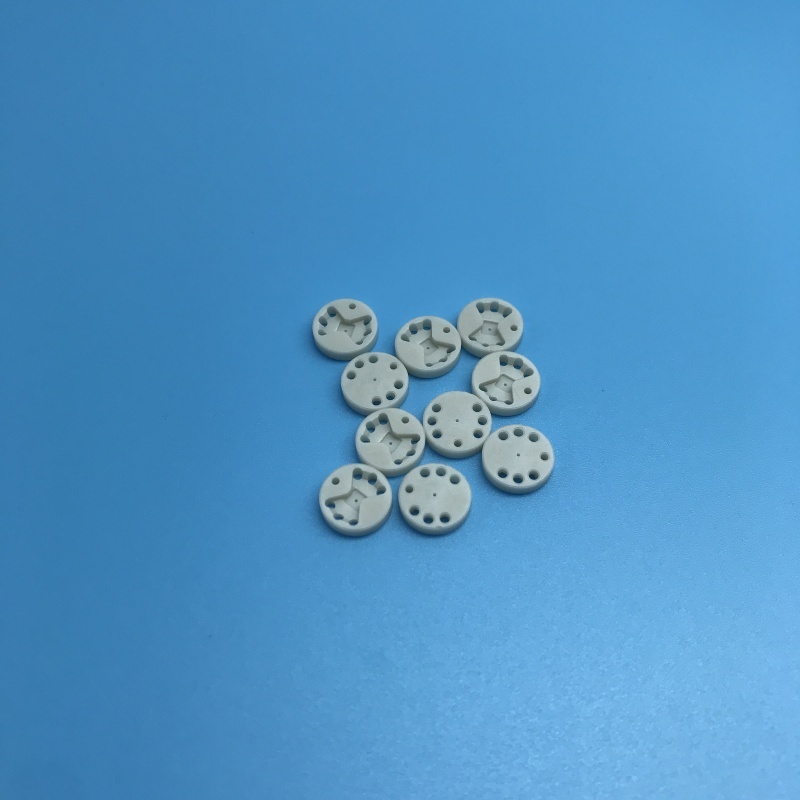

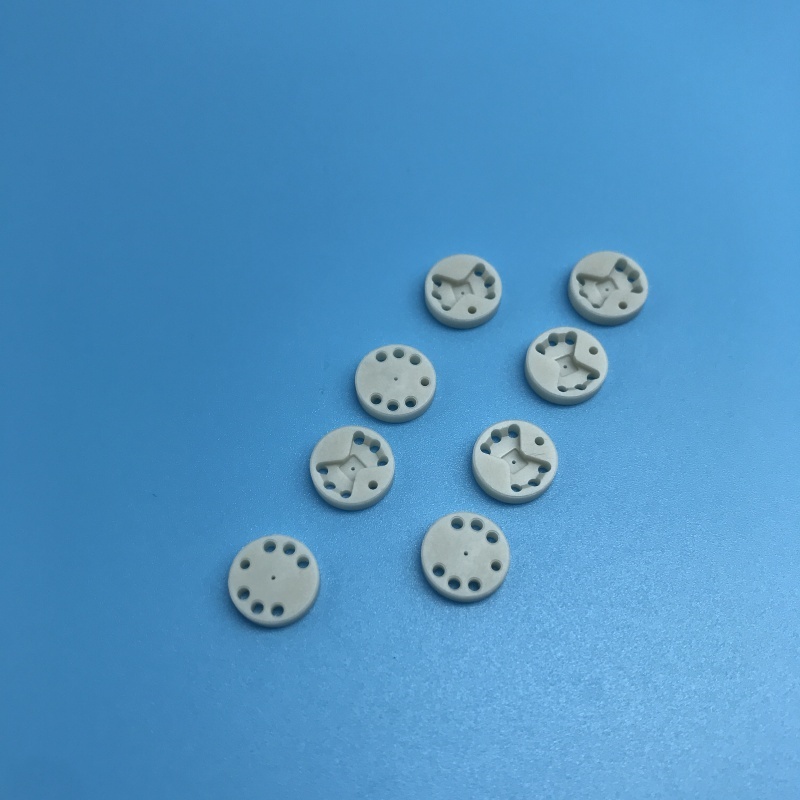

Aluminum Nitride (AlN) ceramic parts are advanced components made from AlN powder via precision molding and high temperature sintering (1700–1900°C) with sintering aids like Y₂O₃. They are widely used in electronics, semiconductors, and aerospace for their exceptional thermal, electrical, and mechanical properties.

Aluminum Nitride ceramic heater has properties of high thermal conductivity, excellent heat equalization and electrical insulation. AlN ceramic heater is widely used for semiconductor manufacturing devices, and it can be used for vacuum evaporation system, sputtering machines and CVD devices.

Core Properties

• Thermal Conductivity: 170–230 W/(m·K), ~6–8× higher than Al₂O₃; some grades reach 260 W/(m·K).
• Thermal Expansion: ~4.5×10⁻⁶/K, closely matching Si (3.5–4×10⁻⁶/K) to minimize thermal stress.
• Electrical Insulation: Resistivity >10¹⁴ Ω·cm at room temperature; remains stable at high temps.
• Mechanical: Vickers hardness ~1200 HV, flexural strength 300–400 MPa, good thermal shock resistance.
• Chemical Stability: Resistant to molten Al/Cu, most acids/bases; stable up to ~1400°C in oxidizing environments.

Key Applications

• Electronic Packaging: Substrates, heat sinks, and packages for high‑power semiconductors (IGBTs, LEDs, RF modules) — solves heat buildup and thermal mismatch with Si.
• Semiconductor Processing: Plasma‑resistant parts (chuck, electrostatic clamp, chamber liners) for etch/deposition tools.
• Aerospace & Defense: Lightweight, high‑temp insulation and thermal management in avionics and propulsion systems.
• Optoelectronics: Laser heat spreaders and optical components requiring low expansion and high thermal conductivity.

Fabrication & Customization

Typical process: Powder mixing → shaping (dry pressing, tape casting, injection molding) → sintering (1700–1900°C with Y₂O₃) → precision machining (grinding, lapping, laser cutting). Parts can be tailored in size, thickness, surface finish, and metallization (e.g., direct copper bonding) to meet specific design needs.

Advantages vs. Alternatives

• Safer than BeO (non‑toxic).
• Better thermal match to Si than SiC.
• Higher thermal conductivity than Al₂O₃ with comparable insulation.

Challenges

• Higher cost than Al₂O₃; sensitive to processing defects affecting thermal conductivity.
• Requires strict moisture control during processing to prevent hydrolysis.

AlN ceramic parts are critical for next-gen electronics and high-tech systems, enabling efficient heat management and reliable performance in extreme conditions.

An AlN ceramic heat shunt is a premium thermal management component

used in high-performance, high-reliability electronics where the simultaneous need for maximum heat transfer and electrical isolation is critical. It solves the classic problem of insulating but thermally resistive interfaces by providing a

path that is both highly conductive and insulating.

Material: Aluminum Nitride (AlN) is an advanced technical ceramic.

Key Property: It has an exceptionally high thermal conductivity for an

electrical insulator. High-purity AlN can have a thermal conductivity rivaling

that of metals like aluminum (≈ 170-220 W/mK).

Other Properties: It is an excellent electrical insulator, has a coefficient of

thermal expansion (CTE) that closely matches silicon and other

semiconductors, and has high mechanical strength and chemical stability.

Primary Applications:

• Power Electronics: Insulating substrates for IGBTs, MOSFETs, power modules, and LED packages. It moves heat from the semiconductor die to the metal baseplate or heatsink without the need for a separate insulating pad (which often has lower thermal conductivity).
• RF/Microwave Packages: As a window frame or lid that provides both a hermetic seal and a path for heat to escape from the internal RF die.
• Laser Diode Carriers: To mount laser diodes, where efficient heat extraction is critical for performance and lifetime, while maintaining electrical isolation.
• High-Voltage, High-Frequency Applications: Where both superior thermal performance and high dielectric strength are required.

 Typical Design & Usage:

An AlN heat shunt often comes as a precisely machined plate, spacer, or

substrate. It might have:

• Metallized traces or pads on one or both sides (using Mo-Mn or thick-film techniques) for brazing or soldering to other components.
• Through-holes or vias for electrical connections.
• It is typically soldered or brazed between the hot component (e.g., a semiconductor die) and the cooling solution (e.g., a copper heat sink).

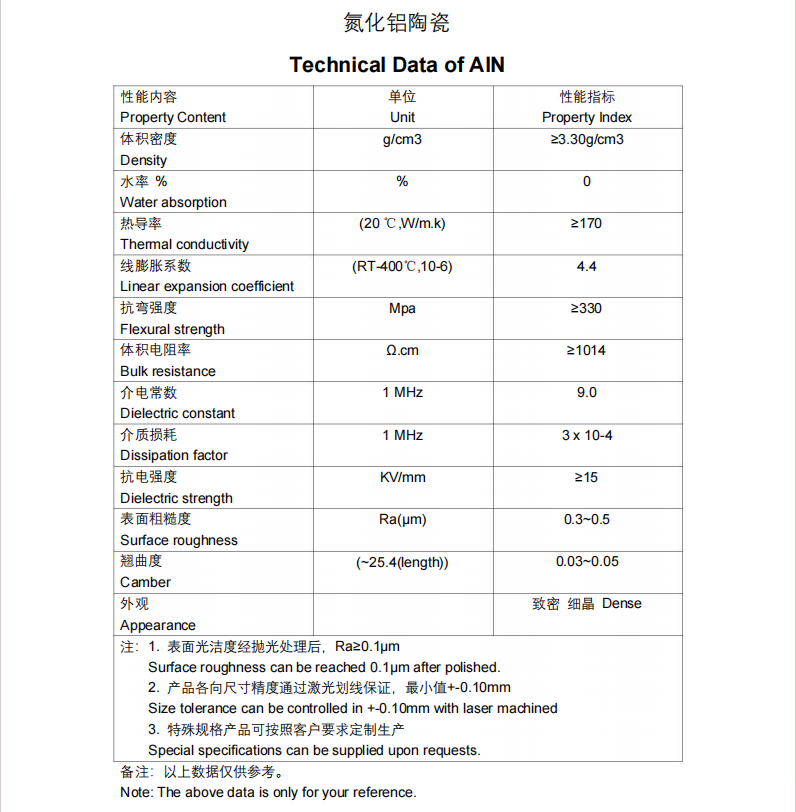

Technical specifications
