1. Overview of Aluminum Nitride (AlN) Ceramic Tubes
1.1 General introduction

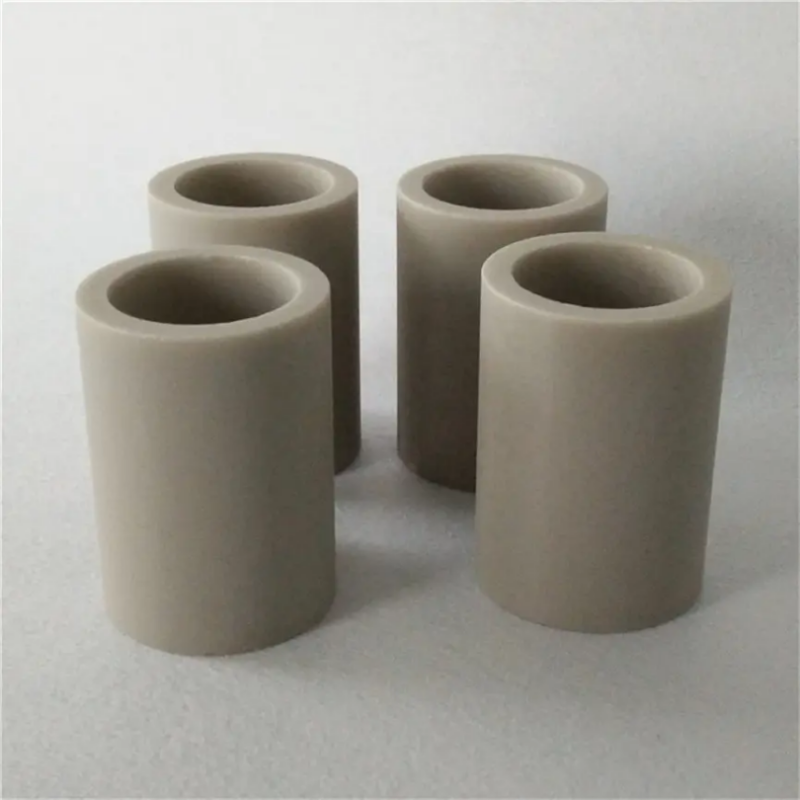

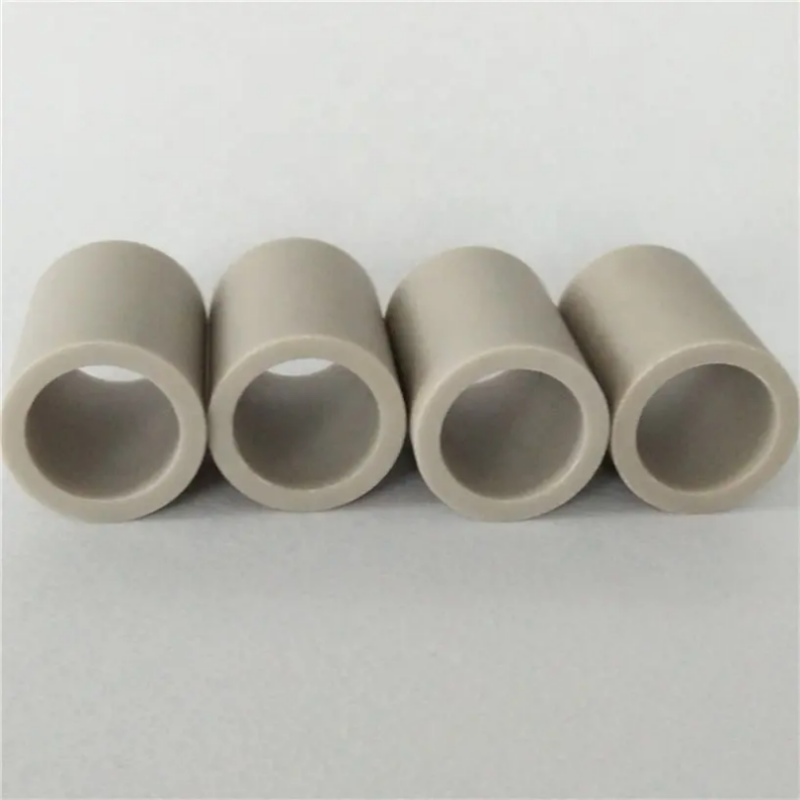

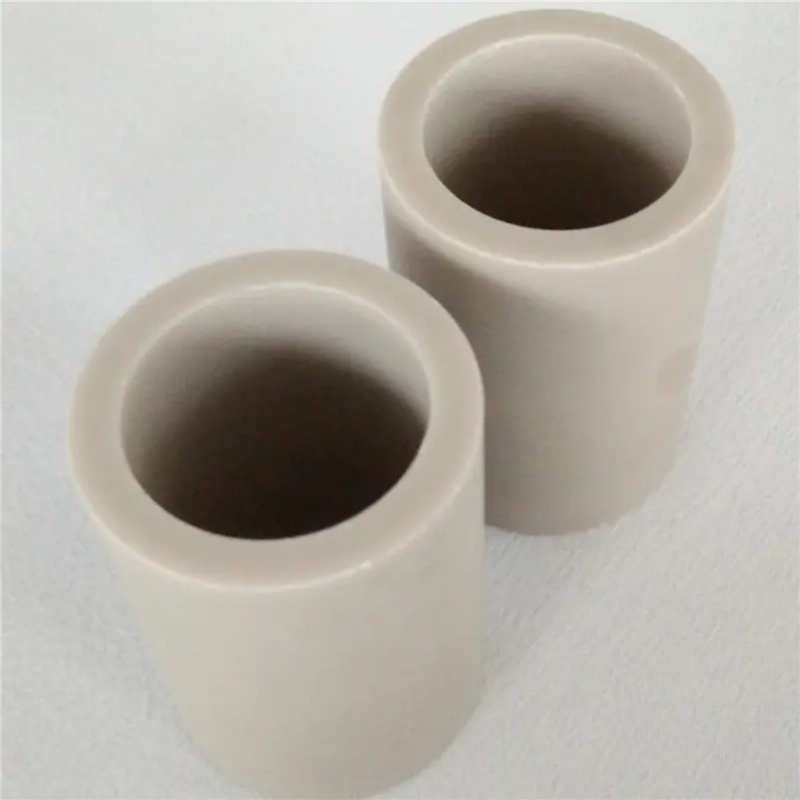

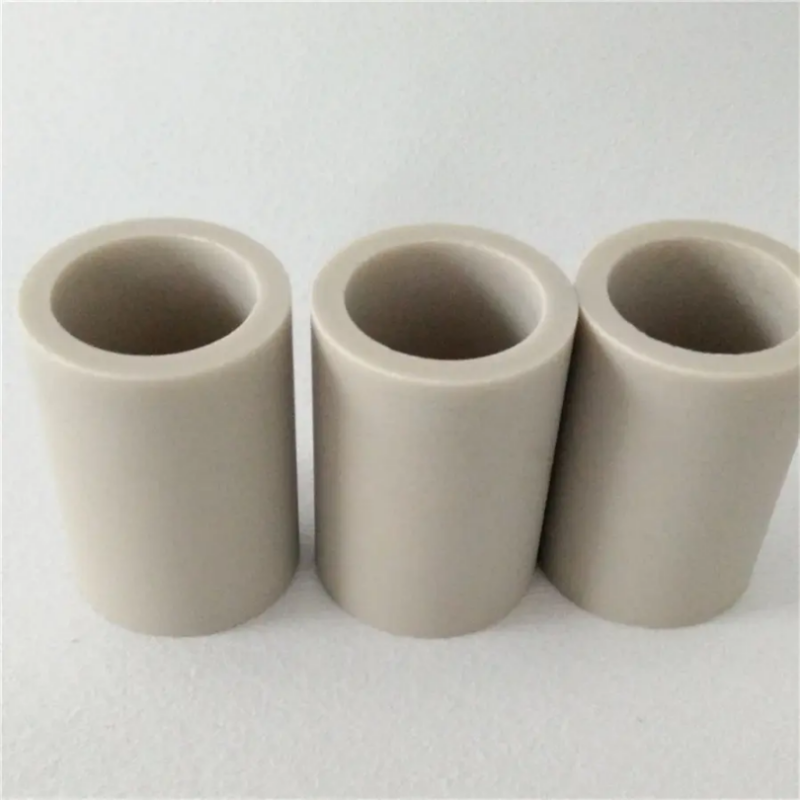

Aluminum Nitride (AlN) ceramic tube is a high-performance hollow cylindrical ceramic component that combines ultra-high thermal conductivity, superior electrical insulation and outstanding high temperature resistance. It is widely adopted in high-power electronics thermal dissipation, high-voltage insulation and high-temperature testing fields, as a premium alternative to ordinary alumina ceramics, beryllium oxide and silicon nitride materials.
1.2 Chemical Composition & Microstructure
- Single-phase dense inorganic ceramic, main component aluminum nitride with tiny sintering aids for compact crystal bonding;
- Fully dense, zero open porosity, smooth solid inner & outer tube walls with excellent air tightness;
- Density: 3.26 g/cm³, lighter than most metal heat sinks, with stable crystal structure without internal crack risks.
2. Manufacturing Process
2.1 Raw Material Batching & Mixing
High-purity AlN powder matched with small amount of sintering additives, uniformly ball milled to remove particle agglomeration, strictly proportioned to guarantee high thermal conductivity and compact sintering effect.
2.2 High Temperature Sintering
Step A: Feed mixed AlN powder into nitrogen atmosphere kilns at 1800–1900 ℃;
Step B: Hold temperature long enough for full densification and grain uniform growth;
Step C: Form compact pure AlN ceramic blank without internal pores;
Step D: Strictly control temperature curve to avoid deformation and internal stress.
2.3 Precision Casting / Extrusion Forming & Controlled Cooling
Step A: Mould AlN powder slurry into hollow tubular blanks via isostatic pressing or extrusion moulds;
Step B: Slow programmed cooling to eliminate uneven internal stress inside tube bodies;
Step C: Cooled tube blanks maintain complete round shape without deformation before post-processing.
2.4 Controlled Finishing Heat Treatment
Secondary annealing treatment to release residual forming stress, improve tube body toughness and avoid cracking during precision machining.
2.5 Blank Cutting & Stock Shaping
Saw large sintered AlN blanks into standard semi-finished tubular stock; grind inner & outer tube surfaces to uniform dimensional standards for commercial supply. Inspect tubes for internal defects (cracks, bubbles, uneven wall thickness) via ultrasonic visual testing; reject defective blanks. This semi-finished tubular stock is raw material set to component manufacturers.
3. Core Performance Profile
3.1 Dominant Thermal Performance (Defining Feature)
- Ultra-high thermal conductivity, close to beryllium oxide but completely non-toxic, ideal for critical heat dissipation scenarios;
- Continuous service temperature: 800 ℃; short peak temperature resistance up to 1000 ℃;
- Excellent thermal stability, withstands rapid heating & cooling without tube cracking;
- Tunable low coefficient of thermal expansion (CTE), compatible with brazing & sealing with common metals.
3.2 Excellent Electrical Insulation
- Ultra-high volume resistivity across wide temperature & frequency ranges;
- High dielectric strength and extremely low dielectric loss, perfect for high-voltage, high-frequency electronic insulation;
- Insulating performance remains stable at elevated temperatures where polymer plastics degrade rapidly.
3.3 Chemical & Vacuum Compatibility
- Resistant to most acids, alkalis, organic solvents and oils; only vulnerable to hydrofluoric acid and strong molten alkali metals;
- Ultra-low outgassing rate after baking, zero trapped gas pores — fully compatible with ultra-high vacuum (UHV) chambers for semiconductor and optical systems;
- Radiation stable under X-ray, gamma and particle irradiation, suitable for nuclear and aerospace equipment.
3.4 Mechanical & Safety Performance
- High compressive strength, rigid tubular structure with strong pressure resistance;
- Non-toxic clean inorganic material without volatile organics, safe for electronic and medical equipment;
- High hardness, wear-resistant inner and outer tube walls, long service life under fluid or gas flushing.
4. Key Limitations
- Not suitable for continuous long-term working environments above 800 ℃.
- Susceptible to corrosion and etching when exposed to hydrofluoric acid.
- Hardness and wear resistance are lower than alumina and silicon carbide ceramics, not the first choice for heavy-duty severe abrasion working conditions.
5. Main Industrial Applications
5.1 Vacuum & Semiconductor
UHV chamber fixing jigs, vacuum feedthrough insulating sleeves, heat conduction isolation spacers, wafer transfer and handling ceramic tubes.
5.2 Aerospace & Spacecraft
Satellite sensor supporting sleeves, space shuttle thermal insulation brackets, radiation-resistant hollow structural components.
5.3 High-Voltage Power Electronics
Coil insulating spools, power supply insulation sleeves, laser resonant cavity isolation tubes.
5.4 Optics & Precision Instruments
Optical platform base sleeves, reflector fixing tube fittings, precision metrology equipment insulating fixtures.
5.5 Medical & Nuclear Industry
Radiation test shielding tubes, non-contaminating laboratory precision positioning jigs, radiation protection insulation parts.
6. Material Positioning
Aluminum Nitride (AlN) ceramic tube fills the performance gap between plastics, metals and ordinary sintered ceramics. It delivers ceramic-grade stable thermal and electrical performance, while possessing unique hollow tubular structural design for heat conduction and insulation. Compared with machinable glass ceramic, AlN owns far superior thermal conductivity for heat dissipation scenarios, and outperforms plastics and metals on high-temperature insulation and vacuum compatibility. It is the preferred high-performance hollow tube material for customized precision parts with low-to-medium production volume, serving harsh working environments including high temperature, ultra-high vacuum and high voltage.
| Technical Data of AlN |
| Property Content |
Unit |
Property Index |
| Density |
g/cm3 |
≥3.30g/cm3 |
| Water absorption(%) |
% |
0 |
| Thermal conductivity |
(20 ℃,W/m.k) |
≥170 |
| Linear expansion coefficient |
(RT-400℃,10-6) |
4.4 |
| Flexural strength |
Mpa |
≥330 |
| Bulk resistance |
Ω.cm |
≥1014 |
| Dielectric constant |
1 MHz |
9.0 |
| Dissipation factor |
1 MHz |
3 x 10-4 |
| Dielectric strength |
KV/mm |
≥15 |
| Surface roughness |
Ra(μm) |
0.3~0.5 |
| Camber |
(~25.4(length)) |
0.03~0.05 |
| Appearance |
|
Dense |
Attention:
1.Surface roughness can be reached 0.1μm after polished.
2.Size tolerance can be controlled in +-0.10mm with laser machined
3.Special specifications can be supplied upon requests.
|
Note: The above data is only for your reference.
