High-Precision Thick-Film Circuit Substrate Stable Signal Transmission for Automotive Electronics

                                                                                            Product Details

1. Overview of Diatomite

1.1 Definition and Composition

Thick-Film Circuit Substrate stands as a high-reliability core component, specially engineered for automotive oil level sensor systems and adaptable to diverse industrial scenarios. Crafted to withstand the harshest engine compartment conditions—extreme temperature fluctuations, persistent vibration, and direct oil contamination—it leverages premium alumina ceramic substrate and high-performance aluminum nitride substrate, paired with precision manufacturing, to deliver exceptional stability. With robust customization capabilities covering passenger cars, commercial vehicles, and heavy-duty trucks, it ensures accurate oil level detection critical for engine protection and fuel efficiency, fully complying with ISO 16750 and AEC-Q200 automotive standards.

1.2 Material Types and Grades

Two primary substrate materials serve different application tiers:

Alumina ceramic substrate​ – the cost‑effective flagship, with flexural strength ≥350 MPa and thermal conductivity 15–30 W/(m·K). Its dense structure blocks oil and coolant penetration, making it ideal for mainstream automotive oil level sensors.

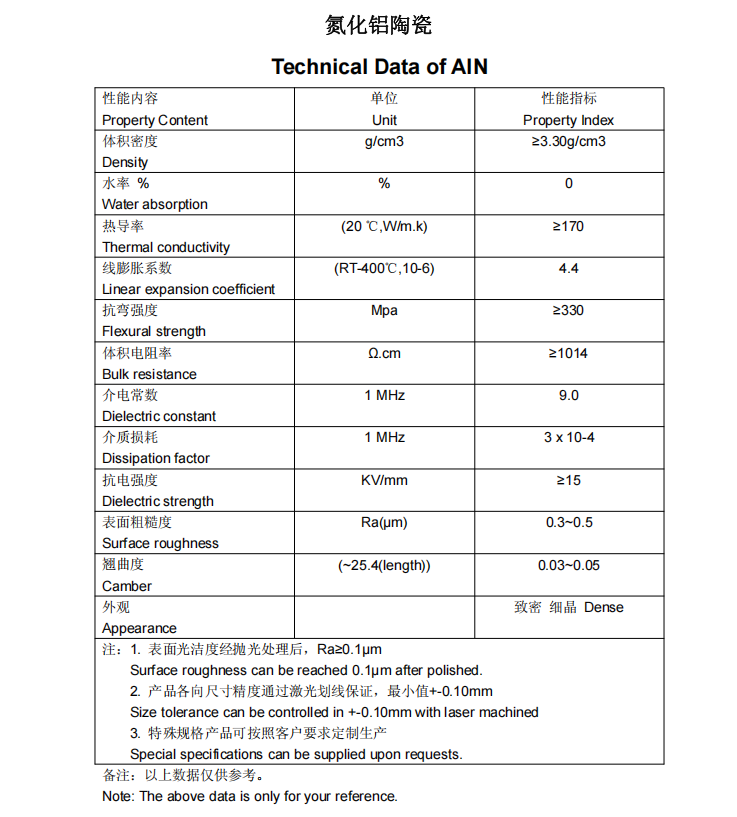

Aluminum nitride substrate​ – designed for high‑performance engines and extreme heat management, delivering 180–220 W/(m·K) thermal conductivity (10× that of FR4). It cuts sensor overheating risk by 60% and extends operational lifespan by 40%.

2. Core Characteristics of Thick‑Film Circuit Substrate

2.1 Physical and Dimensional Flexibility

Thickness options span 0.3 mm (ultra‑thin for compact modules) to 2.0 mm (heavy‑duty truck applications). Size ranges from 5 mm × 5 mm micro‑sensors to 50 mm × 50 mm integrated systems. Edge finishing (beveled, rounded, squared) ensures seamless assembly. Precision 0.5 mm hole drilling and laser etching achieve ±0.01 mm line width tolerance, enabling 0.1 mm oil level resolution that meets the strictest automotive sensing accuracy.

2.2  Thermal Performance

Alumina provides adequate heat dissipation for standard sensors, while aluminum nitride excels in high‑power systems. Both materials maintain stable performance under continuous oil immersion up to 150 °C.

2.3 Electrical and Chemical Properties

Custom metallization layers (NiPdAu, silver coatings) enhance corrosion resistance and solderability. Dielectric pastes deliver ≥20 kV/mm breakdown voltage, forming robust insulating layers that prevent oil‑induced short circuits and ensure long‑term reliability.

3. Advantages of Thick‑Film Circuit Substrate

3.1 Industry‑Leading Customization

Unlike off‑the‑shelf alternatives, our substrates address every unique sensor design requirement. Ultra‑thin 0.3 mm variants fit compact modules; 2.0 mm substrates handle heavy‑duty loads. Precision drilling and ±0.01 mm line width tolerance enable 0.1 mm oil level resolution. Edge finishing options guarantee perfect assembly.

3.2 Optimized Thick‑Film Paste Selection

Pastes are perfectly matched to substrate materials and sensor functions:

Silver (Ag) paste​ – conductivity ≥50 S/m, ideal for high‑sensitivity circuits ensuring rapid signal transmission.

Silver‑palladium (AgPd) paste​ – unmatched oxidation resistance for 150 °C continuous oil immersion, lasting 10,000+ hours (250% longer than standard silver).

Ruthenium oxide (RuO₂) paste​ – ±1%resistor tolerance across –40 °C to 125 °C, critical for consistent oil level calibration.

Dielectric pastes​ – low/high dielectric constant variants, ≥20 kV/mm breakdown voltage.

3.3 Tangible Value for Sensor Manufacturers

Compatible with SMT and reflow soldering, cutting assembly time by 30%.

150,000+ mile operational lifespan reduces warranty claim costs by 40%.

Flexible pricing from prototype batches (50 units) to mass production (100,000+ units/month).

Dedicated automotive thick‑film applications team provides end‑to‑end support: paste‑substrate matching, circuit simulation, and free prototype samples.

4. Future Trends and Applications

We stay ahead of automotive electrification trends:

Aluminum nitride substrate​ is optimized for EV gearbox oil level sensors, supporting high power densities and 48 V systems while maintaining efficient heat dissipation.

ADAS‑integrated sensors​ combine oil level detection with oil quality monitoring for predictive maintenance, enabled by precision patterning.

Ongoing R&D​ includes silver‑copper composite pastes reducing material costs by 20% without compromising conductivity, and 0.2 mm ultra‑thin alumina ceramic substrate variants for next‑generation miniaturized designs.

Backed by decades of thick‑film technology expertise and a global supply chain, we are a trusted partner for leading automotive sensor manufacturers worldwide. Whether you need a standard alumina substrate for mainstream oil level sensors or a custom aluminum nitride substrate for high‑performance applications, our product delivers the reliability, precision and value required by modern automotive systems.

5.To ensure customer satisfaction, we offer comprehensive support:

After-Sales Policy: 1-year warranty for regular products. For quality issues during warranty, we respond within 48 hours and complete maintenance/replacement within 7 days.

Featured Services: Customization according to your requirements ad drawings(size: 5-500mm diameter; shape: circular/irregular; porosity:30%-70%) with free design solutions.

New customers get 1-3 samples (15-30-day production cycle). Professional teams provide one-on-one installation guidance and free operation training.
