Metal mesh ozone sheet for Ozone generator

                                                                                                Product Details

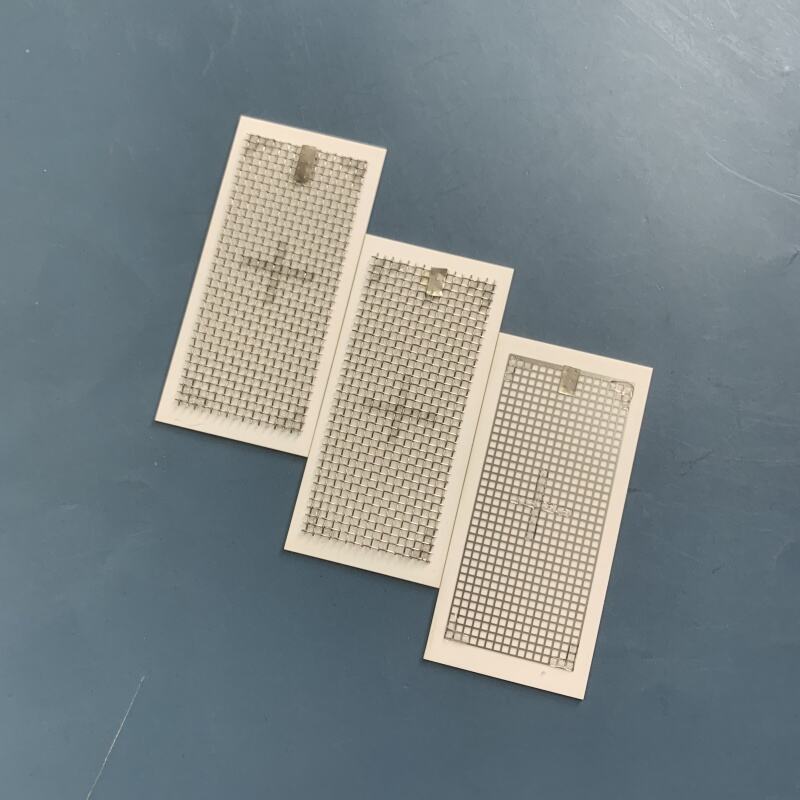

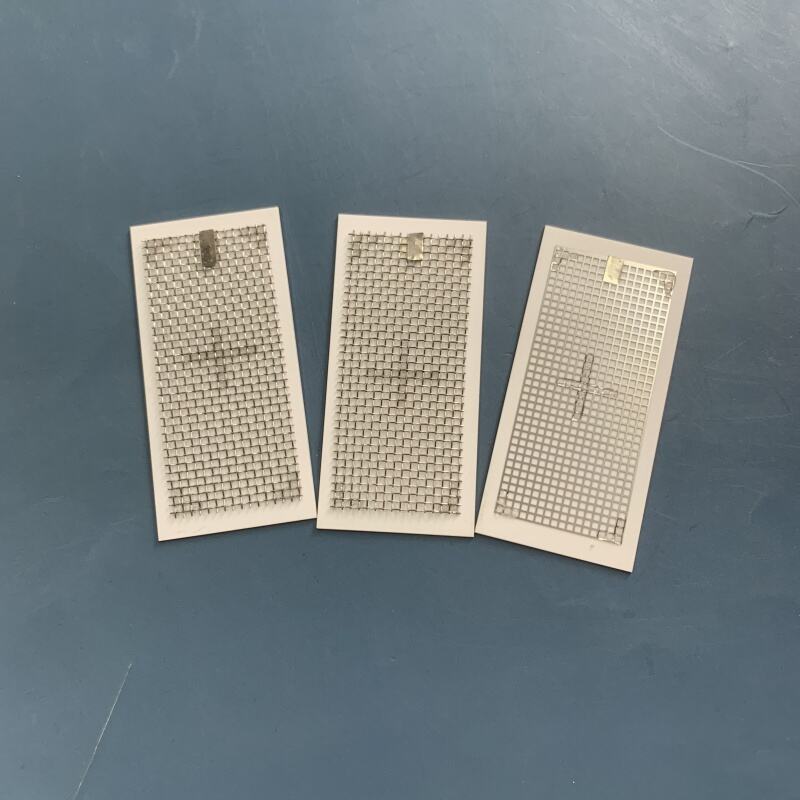

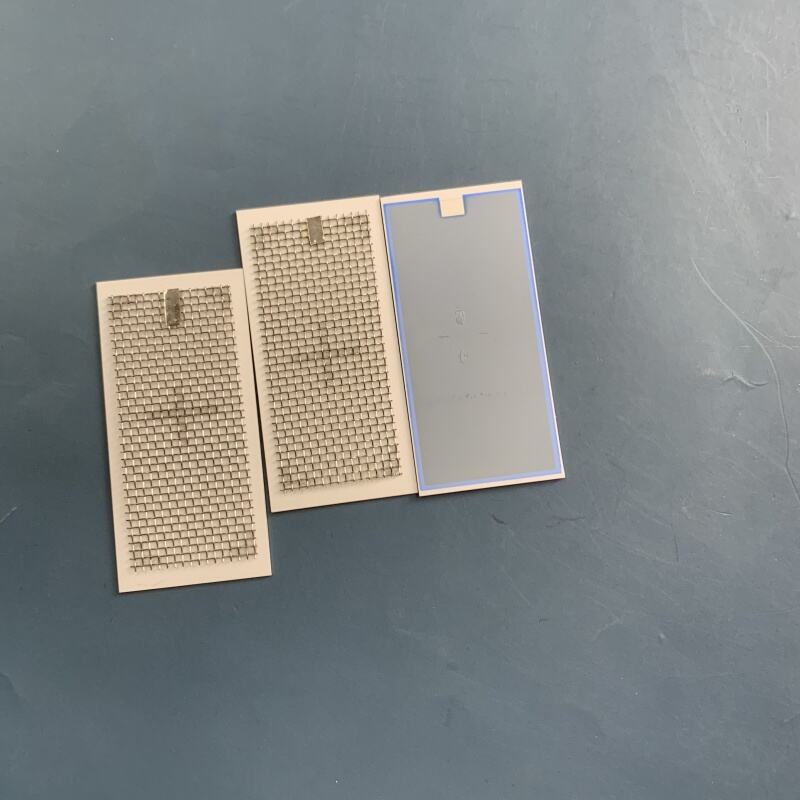

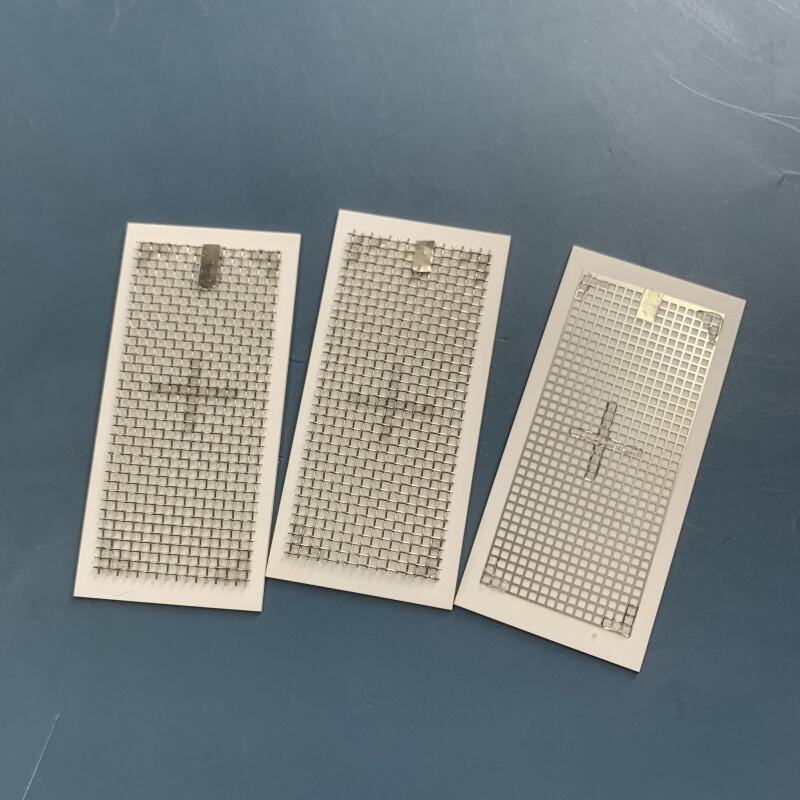

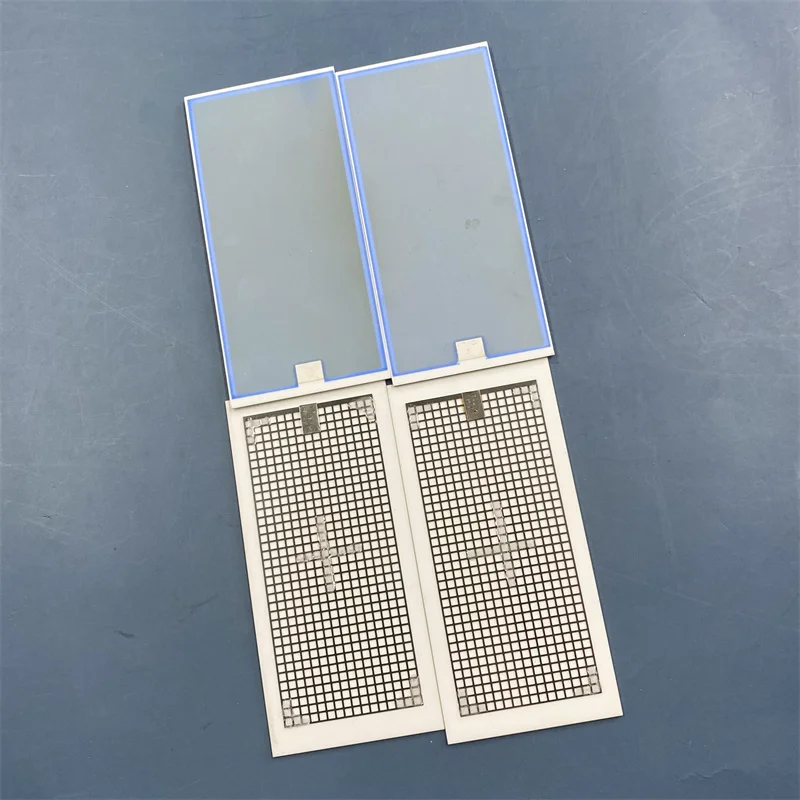

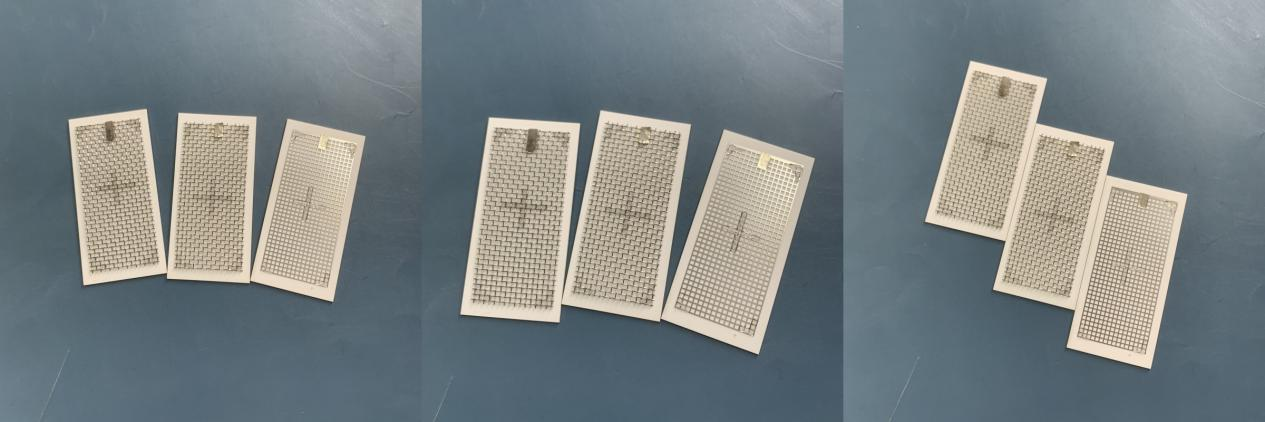

Metal Mesh Ozone Sheet

Metal mesh embedded ozone ceramic plates adopt high-purity alumina ceramic substrate with built-in metal mesh electrode structure, featuring stable dielectric strength, excellent thermal conductivity, outstanding ozone corrosion resistance, andstrong structural anti-breakage performance. The material is inert  to ozone, strong acids, alkalis and other corrosive media, adapting to long-term continuous high-voltage discharge working conditions.

A core highlight of metal mesh embedded ozone ceramic plates lies in its internal metal mesh integrated forming design. The built-in metal mesh is tightly bonded with the ceramic matrix, with a room-temperature volume resistivity higher than 10¹⁴ Ω·m and breakdown voltage up to 12–18kV/mm, which effectively avoids electrode falling off, local high-voltage breakdown and discharge short-circuit faults of ozone generators. It owns a low thermal expansion coefficient (7.0–9.0×10⁻⁶/℃),delivering excellent high-temperature dimensional stability; the dense ceramic surface is wear-resistant, paired with uniform discharge characteristics to ensure stable ozone output. The material features superior chemical stability against ozone strong oxidation environment, acid and alkali erosion, non-toxic and pollution-free, fully compliant with water treatment and food disinfection application requirements.

The core competitive advantage of metal mesh ozone ceramic plates is its high-density alumina ceramic plate + integrated metal mesh embedded structure, with alumina purity ≥96% , ultra-low impurity content of sodium, potassium and other alkali metal elements. No harmful substances will be precipitated under long-term high-temperature discharge and strong ozone oxidation environments, which makes it the ideal discharge core component for water treatment ozone generators, air disinfection ozone equipment, industrial waste gas treatment high-concentration ozone systems. At present, numerous ozone equipment manufacturers choose metal mesh embedded ceramic plates to replace traditional thick-film printed ozone ceramic sheets, single-sided silver electrode ceramic wafers, to greatly reduce electrode failure rate, extend equipment service life and improve the stability of ozone concentration output.

Metal Mesh Ozone Ceramic Plate Advantages

In terms of environmental adaptability, the ceramic substrate and embedded metal mesh both have strong tolerance to strong ozone oxidation, acid mist and alkaline water vapor. Compared with ordinary printed electrode ceramic plates, our product will not have electrode corrosion, oxidation and falling off in high-concentration ozone, humid wastewater treatment and other harsh working environments, with far superior anti-corrosion service performance. In addition, the finished ceramic plate has precise dimensional tolerance after CNC fine processing, flat and smooth surface, stable structural strength, excellent compression and impact resistance, which is not easy to crack during assembly, disassembly and installation. Its good structural stability greatly reduces the after-sales maintenance cost of equipment manufacturers.

Made of food-grade high-purity alumina raw materials, the whole product is non-toxic, odorless and free of volatile harmful substances. It complies with FDA and EU international food safety certification standards, and will not precipitate heavy metal impurities during long-term operation.  Thanks to the self-stable physical and chemical properties of ceramic materials, our metal mesh ozone ceramic plate will not age, deform or lose efficiency with the extension of service time, helping customers realize energy-saving and stable operation of equipment, and it has gradually become the preferred core discharge component to replace traditional ozone ceramic sheets in the global ozone industry.

1.Wide high-low temperature working adaptability

2.Ultra-high electrical insulation & stable high-voltage breakdown resistance

3.Excellent ozone, acid and alkali corrosion resistance

4.Built-in metal mesh not easy to fall off, uniform discharge

5.Stable dimensional precision & high mechanical anti-fracture strength

6.Non-toxic environmental material

Product Features of Metal Mesh  Ozone Ceramic Plate

Long service life: Integrated metal mesh and ceramic high-temperature sintered compact structure effectively avoids electrode peeling failure, the service life is 4–10 times longer than traditional thick-film printed electrode ozone ceramic plates.

High thermal conductivity: Dense low-porosity alumina ceramic substrate realizes efficient and uniform heat conduction, rapidly takes away discharge heat,prevents local high-temperature overheating and thermal breakdown of high-voltage electrodes.

Superior corrosion resistance: Far better than traditional printed silver electrode ceramic sheets in resisting ozone oxidation erosion, no electrode oxidation and failure under long-time high-concentration ozone working environment.

Stable anti-oxidation performance: High-temperature co-firing metal-ceramic composite process significantly promotes electrode anti-oxidation capacity,maintaining stable discharge efficiency and constant ozone output concentration during long-term uninterrupted continuous operation.

High mechanical strength: Dense ceramic internal structure provides excellent compression resistance, bending resistance and impact resistance, effectively avoiding ceramic cracking in assembly and operation.

Main Application Fields

They are widely used in household and commercial air disinfection ozone equipment, food workshop sterilization high-concentration ozone generators,semiconductor cleanroom deodorization ozone systems, medical disinfection equipment, laboratory high-voltage discharge test fixtures and other anti-corrosion insulating discharge components.

We can design and produce various shapes and sizes of boron nitride ceramic ring, please feel free to contact us if you have any question or inquiry. We will be glad to quote and service you.
