Silicon Nitride Ceramic Wire Guide Ring for Textile Machinery

Brief

This is a silicon nitride ceramic wire guide ring, featuring excellent wear resistance and high - temperature resistance. It is widely used in wire processing, textile machinery and other fields to ensure the stable transmission of wires and prolong the service life of equipment.

Details

Silicon nitride is an inorganic substance with the chemical formula Si3N4. It is an important structural ceramic material with high hardness, inherent lubricity, and wear resistance. It is an atomic crystal; Antioxidant at high temperatures. And it can also resist cold and hot shocks. When heated to over 1000 ℃ in air, it will not crack even after rapid cooling and heating. It is precisely because silicon nitride ceramics have such excellent characteristics that people often use them to manufacture mechanical components such as bearings, turbine blades, mechanical seal rings, permanent molds. If high-temperature resistant and heat-resistant silicon nitride ceramics are used to manufacture the heating surface of engine components, it can not only improve the quality of diesel engines, save fuel, but also increase thermal efficiency. China, as well as countries such as the United States and Japan, have developed this type of diesel engine.

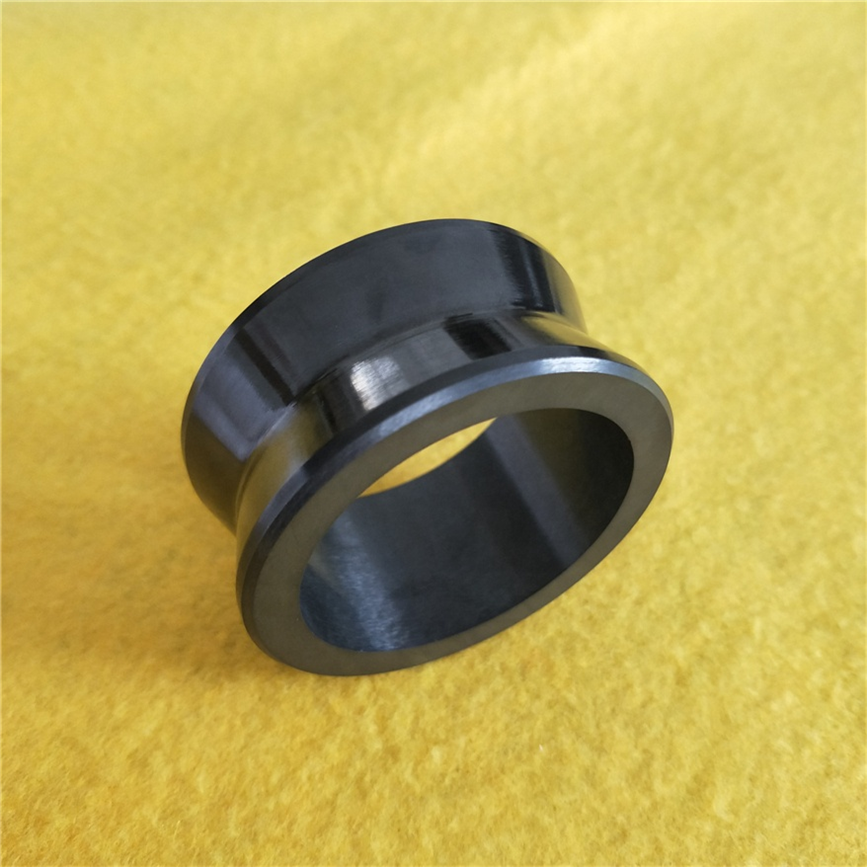

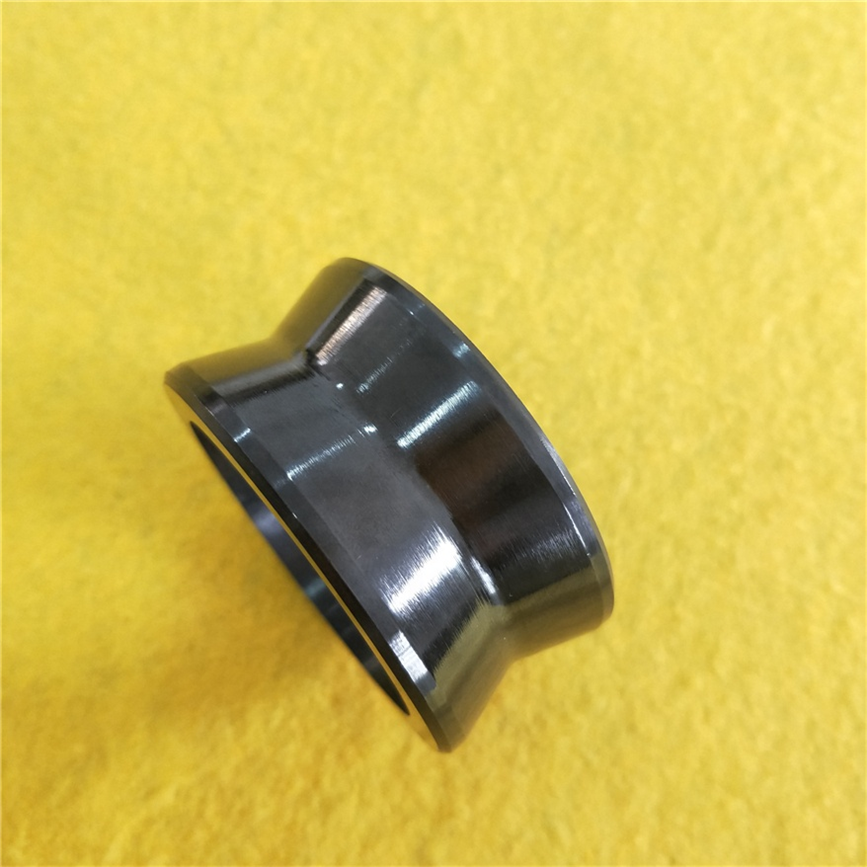

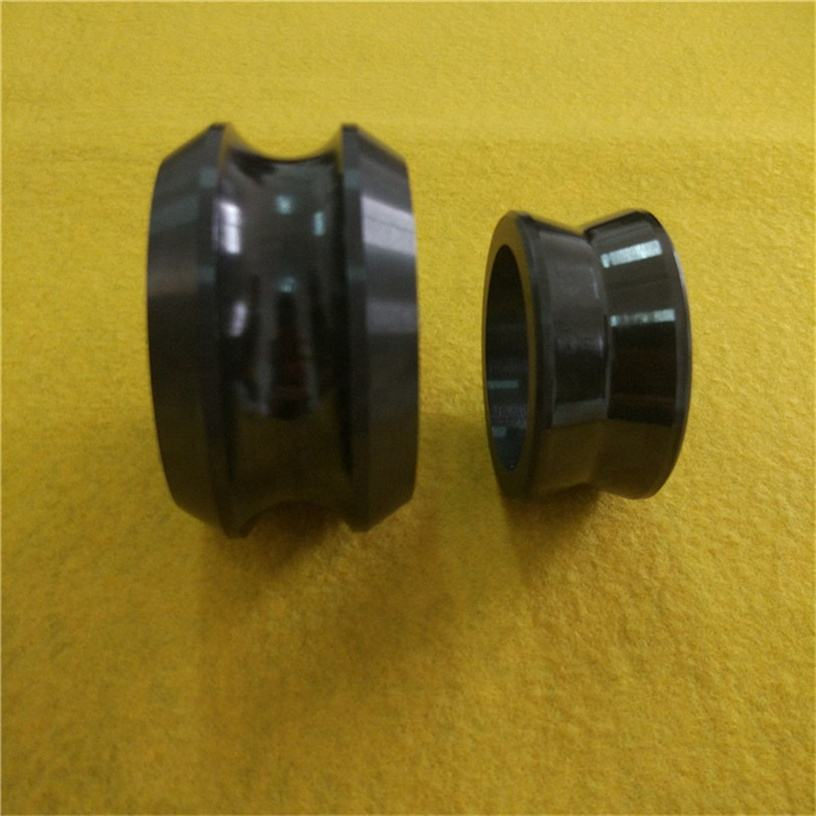

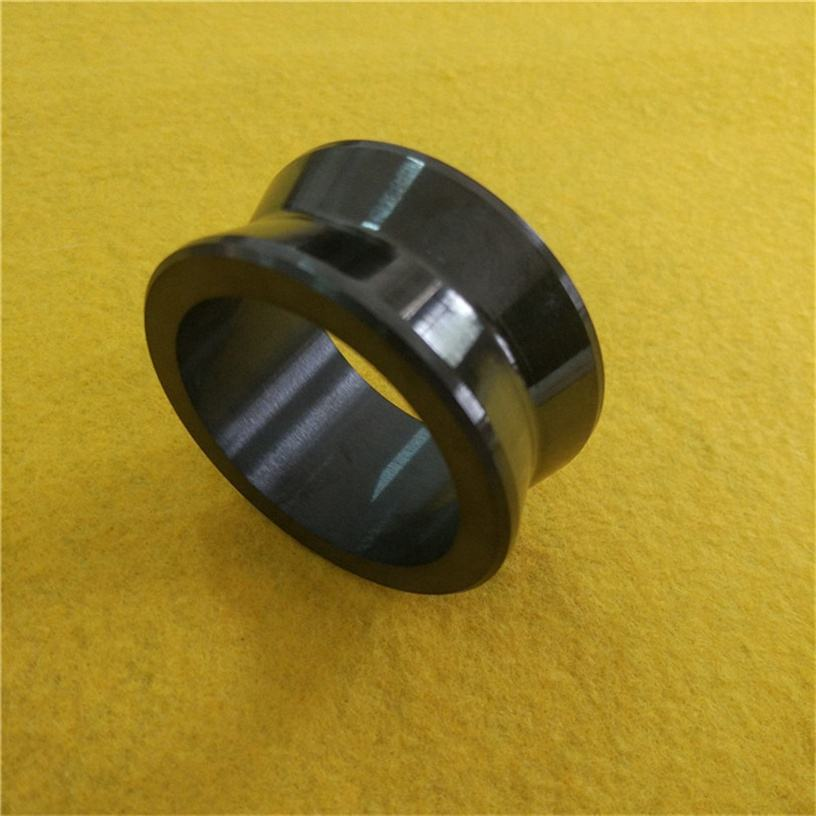

This ceramic wire guide ring is crafted from silicon nitride (Si3N4) ceramic, a material celebrated for its exceptional composite properties. Boasting high mechanical strength, remarkable hardness, superior thermal stability, and outstanding resistance to wear and corrosion, this thread guide ring is designed to excel in wire or cable guiding scenarios. The precisely machined, ultra-smooth surface of the ring guarantees minimal friction against passing wires, fibers, or cables, thereby effectively reducing abrasion and damage to the materials being guided. Furthermore, the intrinsic wear resistance of silicon nitride ceramic allows the ring to retain its structural integrity and functional precision over a prolonged service life, even when operating under high-speed and high-load conditions.

Well-suited for a broad spectrum of industrial equipment—including wire drawing machines, textile machinery, and cable manufacturing systems—this silicon nitride ceramic wire guide ring plays a vital role in boosting operational efficiency and reliability. Its excellent thermal stability enables consistent performance even in high-temperature environments, while its corrosion resistance ensures durability when exposed to harsh chemicals or moisture-rich atmospheres. By minimizing friction and wear, the ring not only extends the lifespan of the cables or wires being processed but also cuts down on equipment downtime and maintenance costs, as it seldom requires replacement due to wear-induced failures. This makes it a cost-effective and high-performance solution for precision thread guiding applications across various industries.

In terms of adaptability in application scenarios, the wire guide ring not only covers traditional fields, but also can meet special industrial needs: in the wire drawing machine, customized products with different aperture sizes can be provided for different materials of wire (soft aluminum wire, hard steel wire), and the inner wall adopts a "circular arc transition" design to avoid stress concentration caused by the right angle edge when the wire enters the ring; In the "insulation layer extrusion process" of the online cable manufacturing system, the guide wire ring can stably guide the bare wire through the molten polyethylene/polyvinyl chloride insulation material, and its high temperature resistance can resist the high temperature radiation during insulation material extrusion, avoiding deformation of the guide wire ring and cable eccentricity.

From the perspective of durability and economy, the wear resistance of silicon nitride ceramics makes their service life much longer than traditional alternatives: in high-frequency wire scenarios, their service life is longer and better than alumina. Can improve equipment utilization. At the same time, its corrosion resistance can cope with harsh working conditions: in the acid rust removal process of metal wire drawing, even if it comes into contact with trace amounts of acid mist, there will be no rusting problem of the metal guide wire ring; In the manufacturing of cables for marine engineering, stable performance can still be maintained in high salt spray environments, avoiding cable production scrap caused by guide wire ring failure.

In addition, from the perspective of green production, silicon nitride ceramic guide wire rings can be crushed, purified, and sintered again after being scrapped to produce low precision ceramic components (such as mechanical seal gaskets), with a material recovery rate of over 60%. Compared with non recyclable metal guide wire rings (which are prone to rust and scrap) and aging plastic guide wire rings, it is more in line with the concept of "circular economy". For enterprises pursuing precision manufacturing and cost optimization, this wire guide ring is not only a "key component" to improve product quality, but also an ideal choice to reduce long-term operating costs and achieve sustainable production.

Parameter
