Product Details
1. Overview of Ozone Disinfection Machine
1.1 Definition and Working Principle
This portable ozone generator is a compact sterilization and deodorization equipment adopting corona discharge technology. Taking ambient air as raw material, the machine applies high voltage to break oxygen molecules in the air. Split oxygen atoms recombine with other oxygen molecules to form ozone (O₃).
When ozone is released into closed spaces, its strong oxidizing property breaks the molecular structure of odor molecules, mold, bacteria and viruses. It destroys the cell structure of microorganisms to realize sterilization, and decomposes organic odor sources at the molecular level. After reaction, ozone automatically decomposes back into oxygen without persistent chemical residues. Ozone is recognized worldwide as a broad-spectrum oxidizing disinfectant for air purification. and odor elimination
1.2Product Structure & Core Features

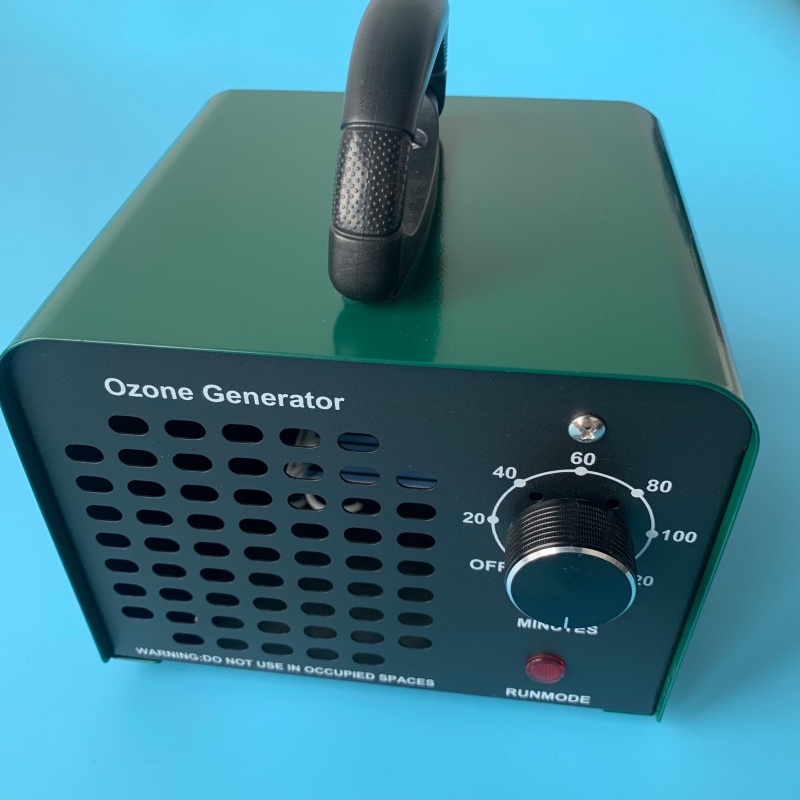

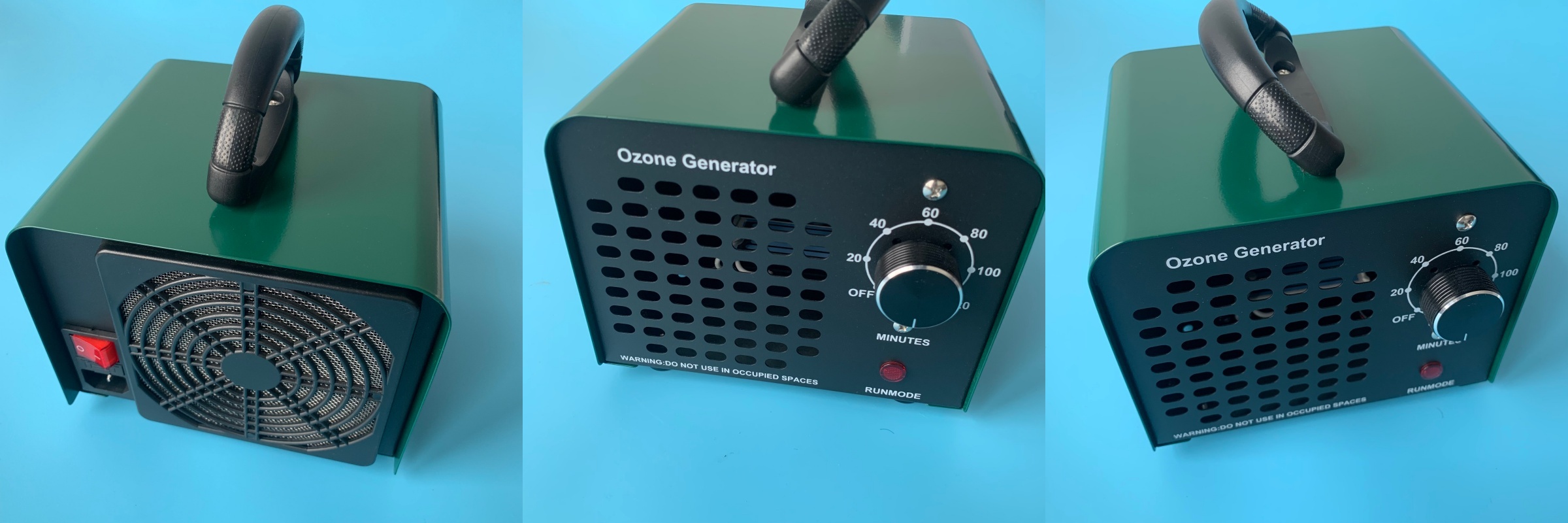

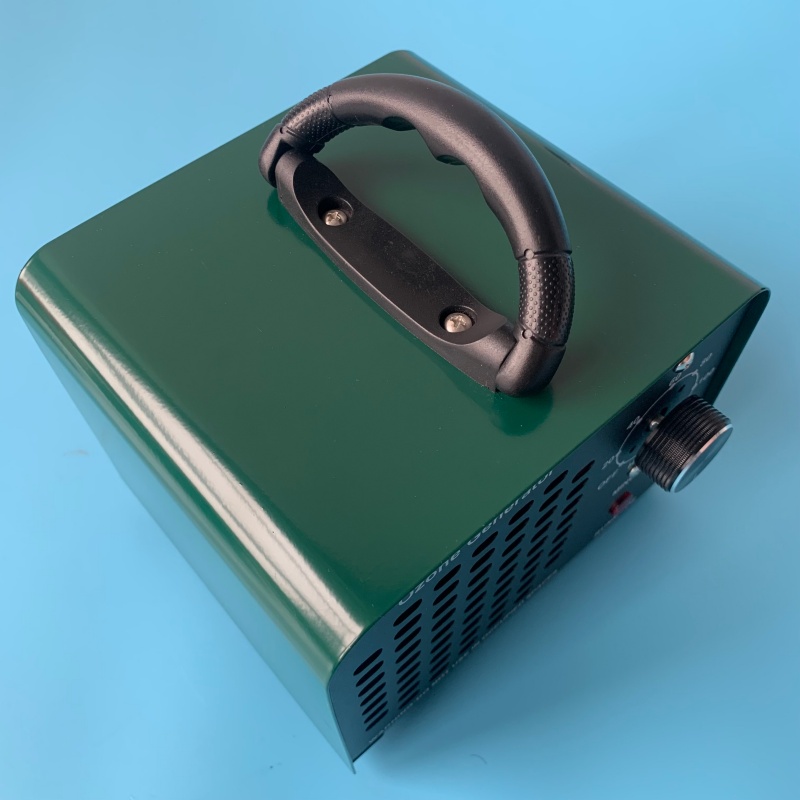

This portable ozone generator adopts metal shell with anti-corrosion coating and a built-in carrying handle for easy movement between different spaces.
-

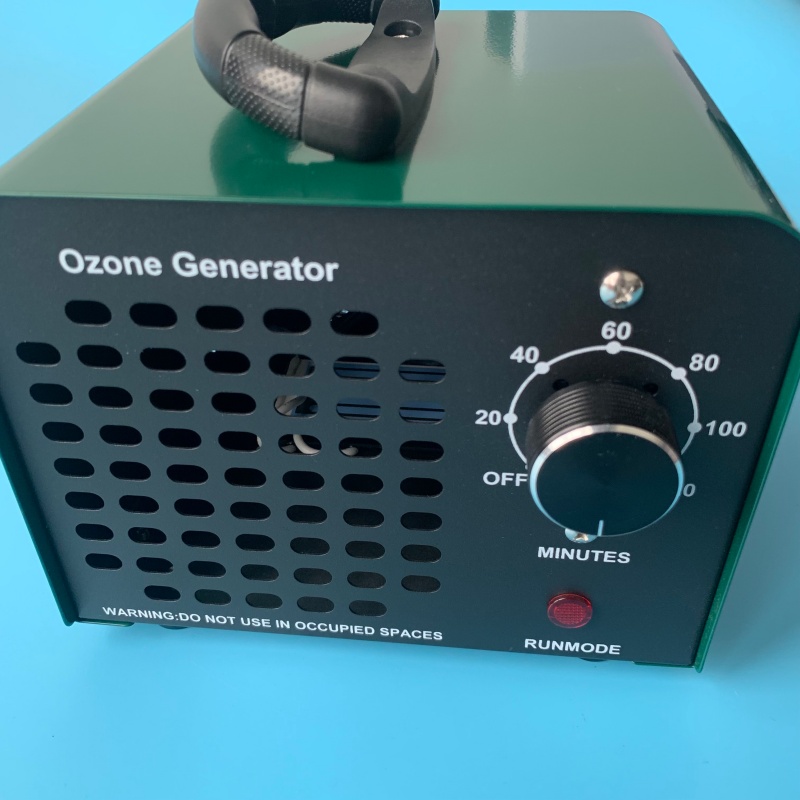

Timing control knob: Adjustable working time from 0 to 100 minutes with automatic shutdown once timing ends.
-

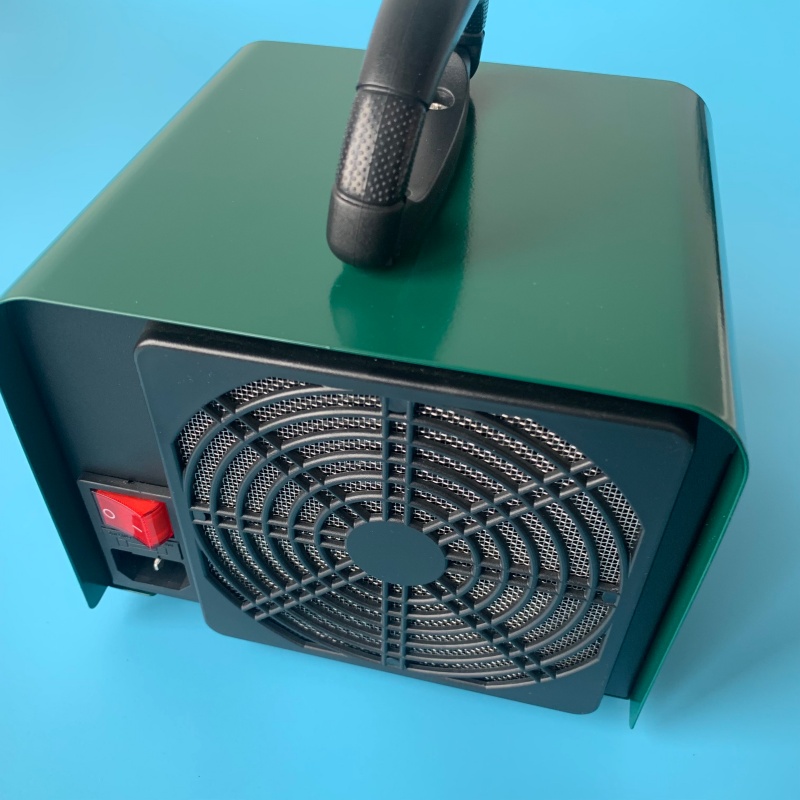

Cooling fan: Built-in air cooling system to keep the internal module stable during continuous operation.
-
Working indicator light: Red light on when the machine is running.
-
Safety warning label: Marked reminder that the equipment cannot run in occupied rooms.
Adopt air-source ozone generation module, compact size, low noise during operation. Built-in overload protection prevents damage caused by abnormal current, supporting intermittent shock disinfection in closed rooms, vehicles and small spaces.
2. SAFETY PRECAUTIONS
WARNING:
Ozone is an irritant gas. High concentration ozone will irritate respiratory tract, eyes and mucous membranes. Do NOT stay in the working room while the machine operates. Re-enter the area only after full ventilation.
- This machine is for professional closed-space treatment only. Not for use by children.
- All people, pets, birds and aquatic animals must leave the treatment space before startup.
- Do not use the unit under high temperature, heavy humidity, flammable, explosive or corrosive surroundings.
- Do not block air inlet and air outlet. Keep ventilation openings unobstructed to avoid overheating.
- Do not touch internal components or insert metal objects into the fan cavity to prevent electric shock.
- Disconnect power supply before maintenance. Do not touch power plug with wet hands.
- Never spray water directly onto the machine or soak the whole unit in liquid.
- Turn off power and unplug if the machine will not be used for a long time.
- If abnormal noise, burning smell or failure occurs, stop using it immediately and contact your supplier.
3. Advantages of Ozone Generation Technology
3.1 Portable & Space-Saving Design
Equipped with sturdy top handle and compact metal casing, the machine can be easily moved between houses, vehicles, stores and rental rooms. It occupies little storage space and is convenient for mobile disinfection service.
3.2 Timing Automatic Shutdown
Rotary timing knob supports customized working duration. After the set time is finished, the machine cuts off automatically. No need for manual shutdown, reducing the risk caused by forgetting to turn off the equipment.
3.3 Deep Penetration Without Cleaning Dead Corners
As gaseous disinfectant, ozone spreads freely all over closed space. It can penetrate into carpet gaps, sofa crevices, air ducts, cabinet interiors and hidden corners which cannot be reached by wiping or spraying. It realizes all-round disinfection for hard-to-reach positions.
3.4 Residue-Free Purification
After disinfection work completes, ozone decomposes naturally into oxygen within a period of time. No chemical residue, no lingering artificial fragrance, no secondary pollution to the environment.
4. Application fields
Residential houses & bedrooms Newly renovated rooms Basements & attics
Cars, vans & buses Pet rooms
Offices & retail shops Restaurants & cafes Rental housing
Storage rooms & wardrobes Hotel rooms Small workshops
5. Frequently asked questions
Q: What are the benefits of using this device?
A: The device is designed to reduce unpleasant odours in enclosed spaces, such as tobacco smoke, animal odours, cooking smells and organic odours.
Q: What is the difference between an ozone generator and an air filter?
A: Air filters work by mechanically trapping particles. An ozone generator works by temporarily producing ozone, which reacts with odour molecules in the air. These devices use different operating principles.
Q: Does ozone remove stains or nicotine deposits?
A: No. Ozone does not remove physical stains or deposits. It can only reduce the odour associated with a given substance without removing its physical form.
Q: Is a smell resembling chlorine or bleach normal?
A: During operation, the device generates ozone, which sometimes smells like chlorine. This is normal and occurs during operation of the device.
7. Technical specification
Shell Material |
202stainless steel or SGCC+electrostatic coating |
Fan model |
EC120. or other |
Air Flow |
170m3/H or other |
Timer |
60min,120min or 180min |
Input Voltage |
AC110V/60Hz or AC220V/50Hz |
Output Voltage |
2500-2700V |
Rated Power |
80-150W |
Control Mode |
Manual control or Touch control |
Applying Space |
20-400m2 |
Operating temperature range |
-10℃ to 70℃ |
Operating humidity range |
0% to 65% |
Development History
Patents and certification
We’ve obtained various global certifications including CE, EMC, LVD, RoHS, FDA, MSDS, ISO 9001, IATF16949, SGS and TUV. We also own eight registered trademarks and forty technical patents to support independent R&D.
Our proprietary core technologies run through all product lines: porous ceramics, industrial ceramic components, special glass, metallized ceramics, liquid absorption cotton, ozone generators and silicone goods. All products are manufactured in strict accordance with international quality standards, delivering reliable and high-performance solutions that have gained wide recognition and market trust worldwide.
Package
We adopt scientific and standardized packaging solutions tailored to product characteristics to effectively prevent collision, extrusion, dust and moisture damage. With mature global transportation system and strict shipment inspection procedures, we ensure all products remain intact and stable during long-distance delivery, providing customers with safe, efficient and reliable one-stop logistics service.
Services
Inquiry & Customization
We provide fast and accurate quotation response for all your inquiries. Flexible OEM & ODM customization solutions are available to meet your unique product design, packaging and branding requirements.
Order Quality Control
We keep clients updated with full production progress throughout the whole order cycle. Our QC team carries out strict comprehensive pre-shipment inspection to guarantee all goods comply with your quality standards before delivery.
Customs Document Support
We prepare a full set of standard export documents including commercial invoice, packing list, certificate of origin and other certification papers, to ensure smooth global customs clearance for shipments to all destinations worldwide.
One-Stop Logistics
Multiple shipping methods including sea freight, air freight and express delivery are offered to match your schedule and budget. We supply real-time cargo tracking service so you can monitor shipment status anytime.
Flexible Payment
We support a wide range of secure international payment terms such as T/T, L/C, Western Union and other mainstream cross-border settlement methods to reduce your cross-border transaction risks.
After-Sales Support
Our professional after-sales team offers timely technical and business support all year round. We maintain steady long-term stable supply capacity to fully back up your continuous market sales and project demands.
FAQ
01
Question: Can you produce based on customers’ drawings or physical samples?
Answer: Absolutely yes. We accept technical drawings in all mainstream file formats as well as actual physical samples. Before formal production, our engineering team will provide a full professional DFM feasibility evaluation for your reference.
02
Question: How long is the production lead time for custom orders?
Answer: Sample lead time: 3–7 working days. Custom mold lead time: 5–10 working days (we will confirm the cycle separately with you for complex molds). Mass production lead time: 7–20 working days, depending on product structure complexity and order quantity.
03
Question: What’s your minimum order quantity for custom products?
Answer: We provide flexible MOQ solutions for all customized items. We will try our best to set a low minimum order volume to support your small-batch trial orders, meanwhile we can handle stable mass production to satisfy your long-term bulk demands.
04
Question: What customization services can you provide?
Answer: We support comprehensive one-stop customization, including product size, shape, appearance, precision tolerance, surface treatment, hole grooving, bending, cutting and adjustable high-temperature resistant parameters. Custom engraved LOGO and exclusive customized packaging are also available as extra personalized options upon request.
05
Question: Do you accept third-party inspection of finished products?
Answer: Yes, we fully cooperate with all mainstream authorized third-party testing institutions. Well-known organizations such as SGS, BV and other internationally recognized inspection bodies are all acceptable. We can supply complete official inspection reports and material certification documents as you require.
06
Question: Can you customize raw material options for products?
Answer: Sure. We can select and match appropriate raw materials according to your application scenarios, working conditions and performance requirements, including alumina, zirconia, quartz, silicone and other special engineering materials, and adjust related performance parameters to meet your usage standards.
