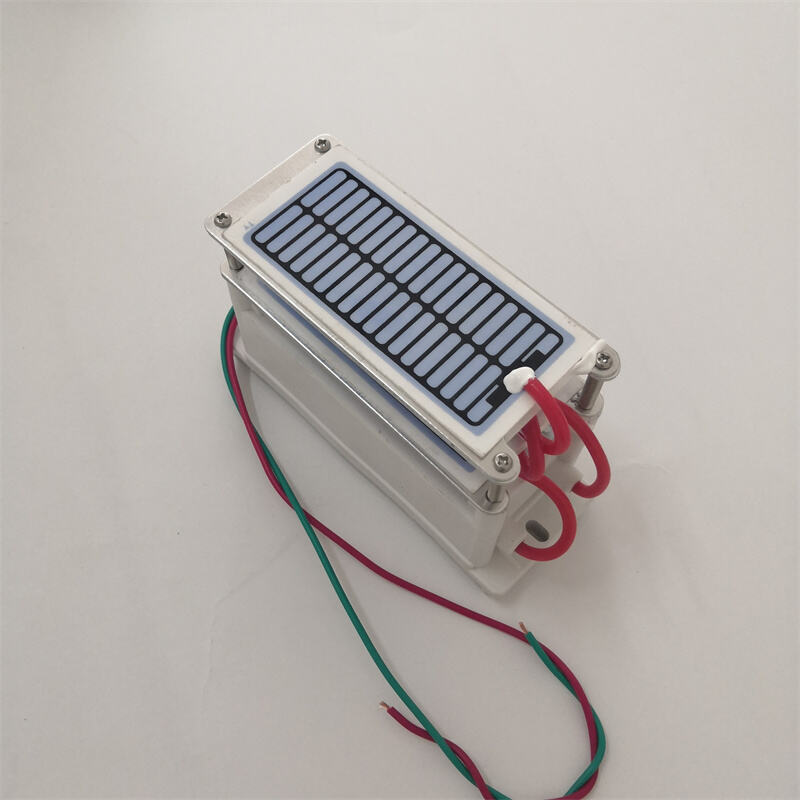

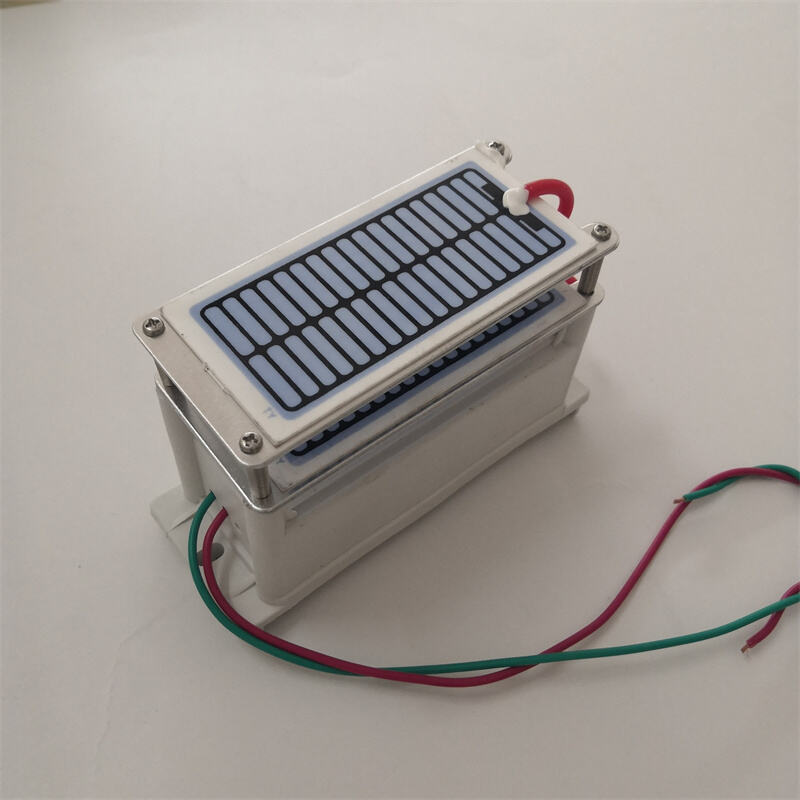

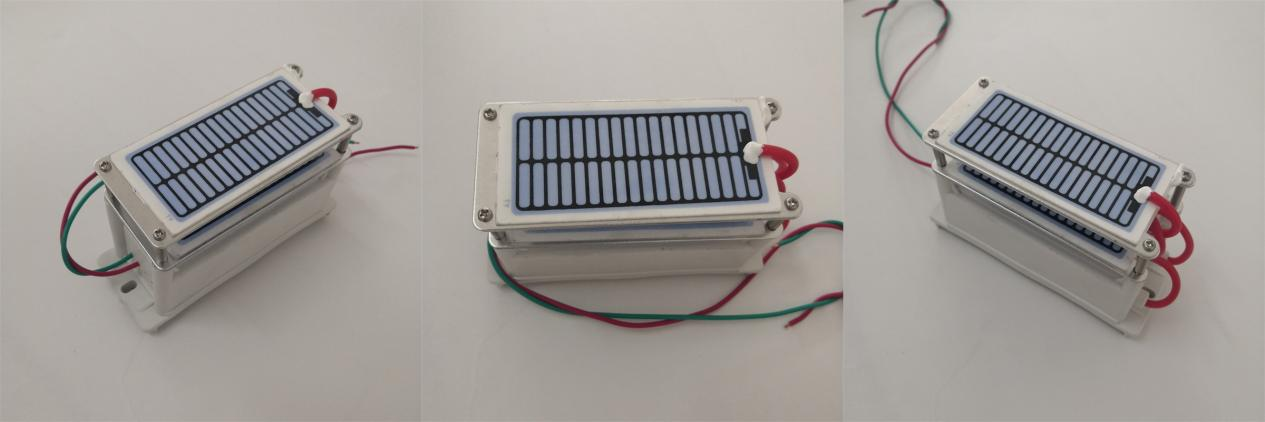

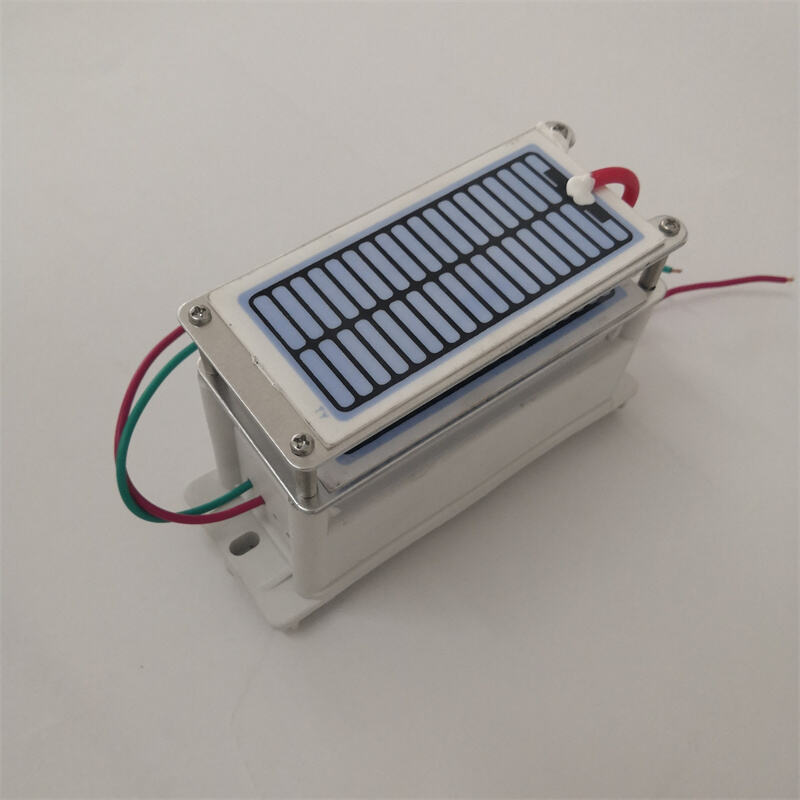

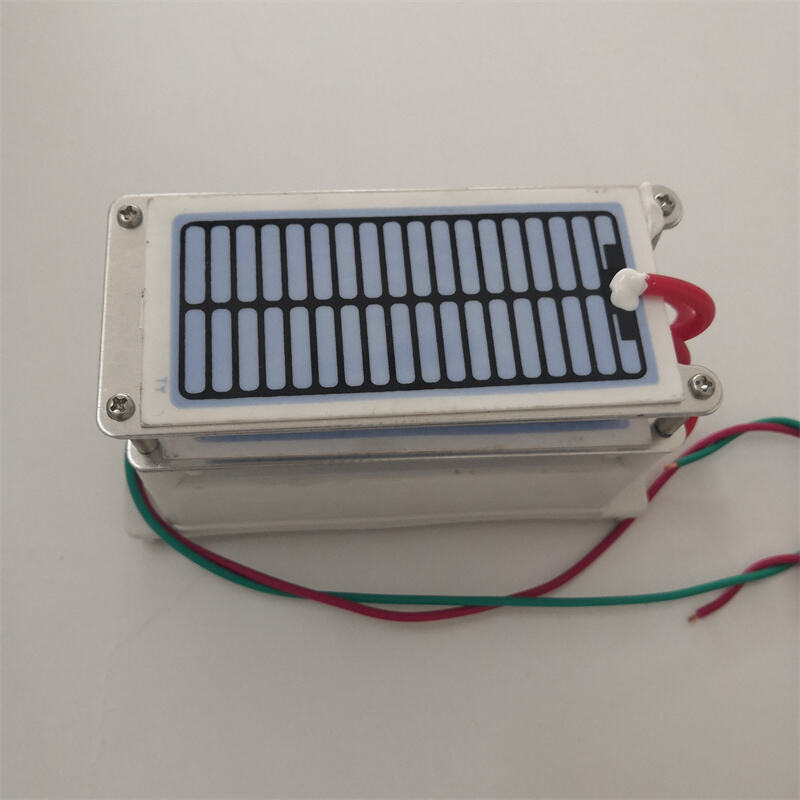

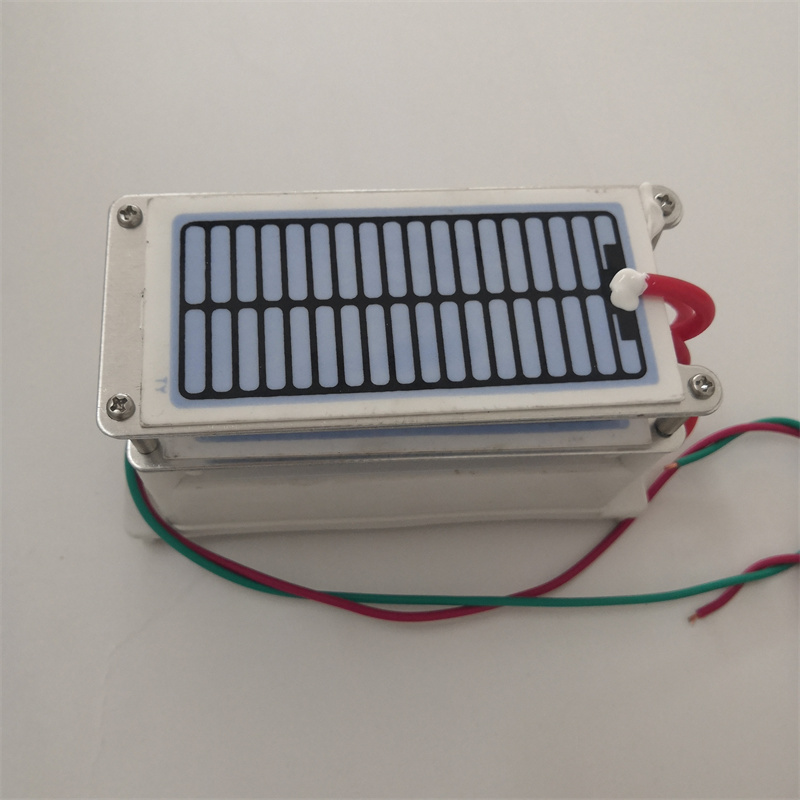

AC110V AC220V 10g/h Long Life Ceramic Plate Ozone module for air Purifying

Introduction to Ozone Module

The ceramic plate ozone module is an ozone-generating device based on a ceramic substrate, featuring high efficiency, stability, and long service life. It is widely used in fields such as air purification and water treatment.

• Portable, easy for professional use, safe and long lasting.
• Low power consumption, eliminates odors, freshens stale air.
• Easy to operate, safe, quiet and efficient.
• Function: Remove Microbes, Eliminates odors, Remove Formaldehyde, Absorbs Noxious Gases and Freshens stale air
• Feature highlights: This 10g/h ozone generator features a long-life ceramic plate design, ideal for air purification. It utilizes high-voltage and high-frequency corona discharge technology with a small transformer size for low electricity consumption. The epoxy-potted transformer ensures damp-proof, waterproof, and corrosion-proof performance. Easy to install and maintain, it is perfect for homes, hotels, offices, and industrial use. Customized services, OEM, and design support are available.

Working principle

Working Principle: Uses ceramic substrates as dielectrics. High-concentration ozone is generated through gas discharge (such as surface discharge or gap discharge) excited by a high-frequency and high-voltage power supply. Ceramic materials are high-temperature resistant and oxidation resistant, ensuring long-term stable operation.

Features and Advantages

• High Efficiency and Stability: Adopts advanced manufacturing processes (such as thick-film screen printing and high-temperature sintering). It has high concentration and excellent disinfection effect.
• Long-life ceramic plates are made through green production on 96% aluminum oxide ceramics, with silk-screen discharge resistance of tungsten and molybdenum and other agents, flattened and tin-treated on electrodes after co-firing to high temperature 1650 °C.High temperature co-firing electrodes and circuit is never fall off, and are with excellent moisture and oxidation resistance.
• High Safety: Ceramic dielectrics are high-voltage resistant and corrosion resistant, not easy to leak or break down. Suitable for use in dry environments.

Key Features:

• Efficient Catalysis

Metal oxide catalysts are loaded on the surface of some ceramic plates to accelerate ozone generation, with efficiency higher than that of ordinary materials.

• Power Supply Matching

High-frequency power supply (>10kHz) reduces corona inception voltage and improves yield. Multi-module combination enables different power outputs.

This principle is applicable to scenarios such as air purification and water treatment. On-site ozone generation is required as ozone easily decomposes.

Advantage1

• High-voltage and high-frequency corona discharge, small size transformer, low consumption rate of electricity.
• Epoxy potting, Damp proof, Waterproof, Corrosion proof transformer.
• Easy to maintain and install.

Advantage2:

• Honeycomb discharge design increases discharge area;
• Upgrade materials to improve sterilization efficiency and machine life;
• Improve anti-shock and anti-drop performance.

Application Fields

• Air Purification: Used for indoor sterilization and disinfection, formaldehyde removal, and odor elimination (such as homes, hospitals, workshops, etc.).
• Water Treatment: Suitable for small-scale water treatment equipment (such as swimming pools, landscape ponds), efficiently killing bacteria and decomposing organic matter.
• Industrial Scenarios: Applied in food processing, sewage treatment, etc., with customizable modules of various specifications.

Instructions for use

Just plug in power then you can generate ozone quick, ozone can eliminates odors, freshens air. It is recommended to add a fan to spread ozone effectively in a large space for long time use.

Usage and attention

• When disinfecting in the air, it is forbidden that the staff stay in the high ozone concentration environment . Use medium and high pressure hazards. Do not use water to wash and touch the ozone generator device due to high voltage; after working for a period of time,  use Alcohol cleans the dust on the ozone plate to ensure that ozone generates normally.
• To keep plate works well, recommend work 5-20mins each timer, do not work over 30mins , and need cool down first about 1 hour before switch on again .

Main function

• High performance and compact size
• Very stable performance and concentration
• Very easy installation with very reasonable design
• Fan cooling mode & with a big cooling fins area
• Low power consumption
• Easy operation.

Technical Specifications

Ozone Output: 5-8g/h

Discharge Technology: Ceramic Plate Gap Discharge

Power: 80-100W

Voltage: AC220V/110V

Dimension: 200*150*100mm (varies by model)

Application Recommendations and Precautions

Environmental Requirements: Suitable for relatively dry environments (humidity ≤ 80%RH).

For humid environments (e.g., cold storage), quartz tube modules are recommended to prevent shortened service life of ceramic plate.
