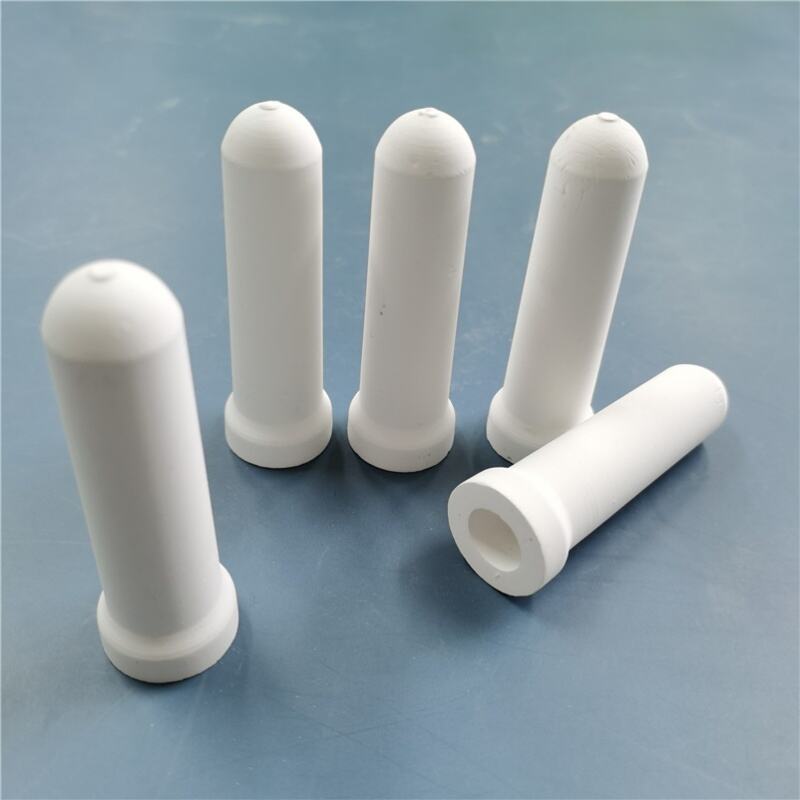

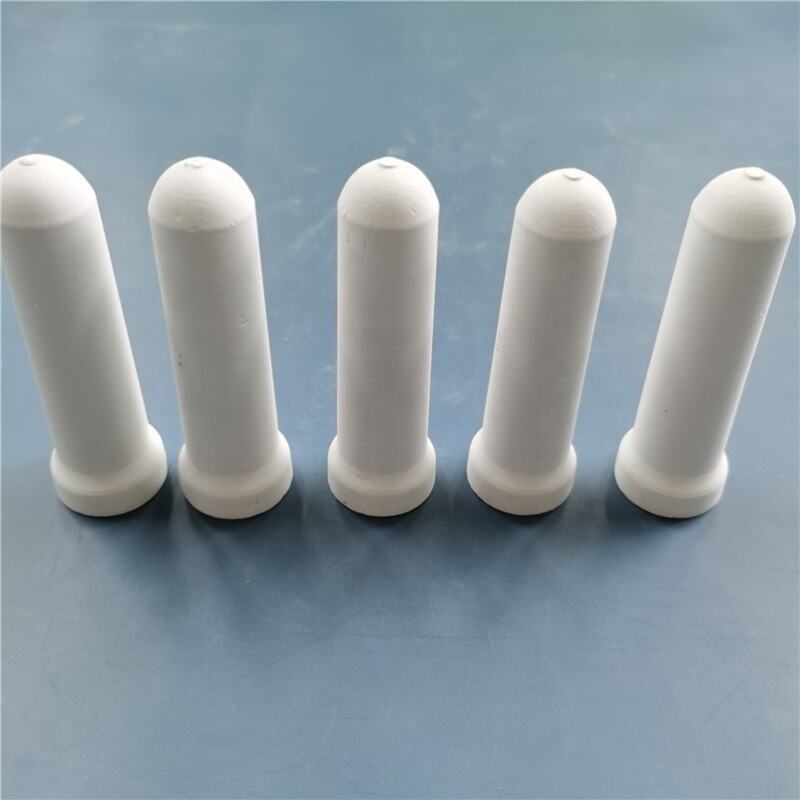

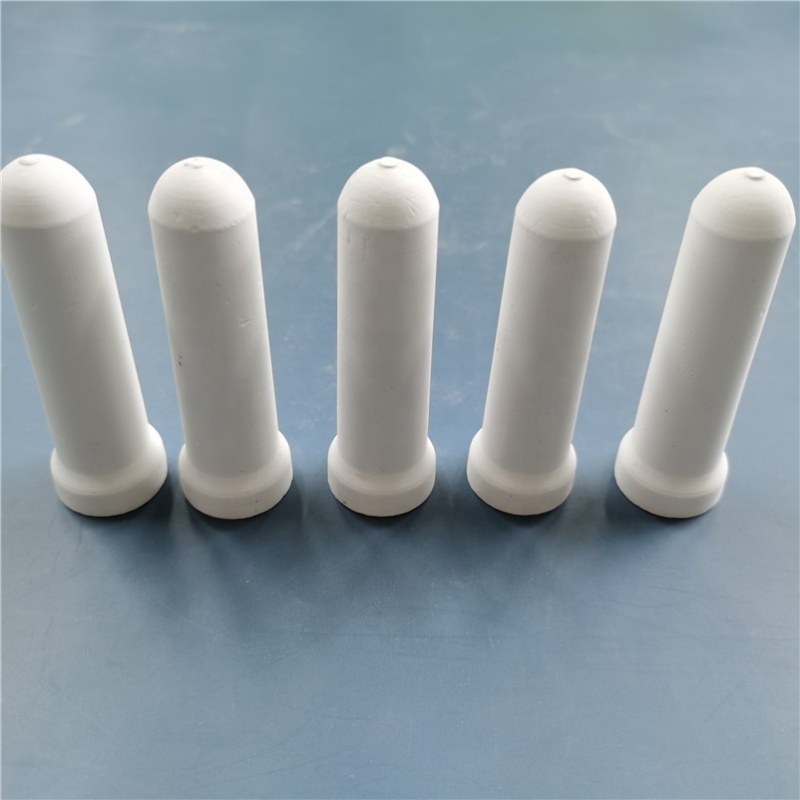

Micro porous ceramic clay head is a functional component made with micro porous ceramic material as the core, mainly used in environmental monitoring, industrial filtration and other fields.
Brief
Micro porous ceramic clay head is a functional component made with micro porous ceramic material as the core, mainly used in environmental monitoring, industrial filtration and other fields.
Details

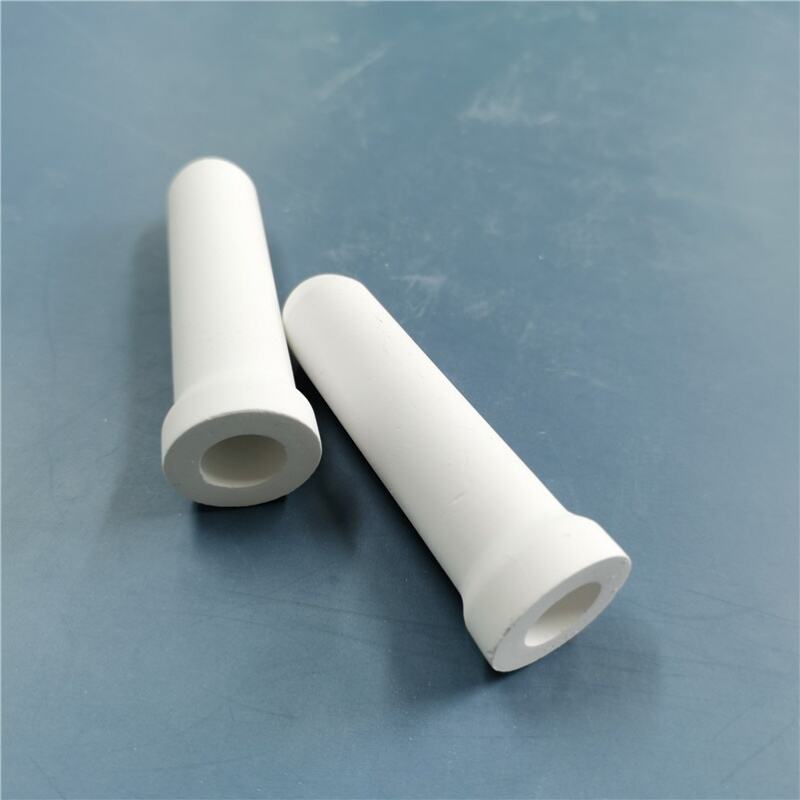

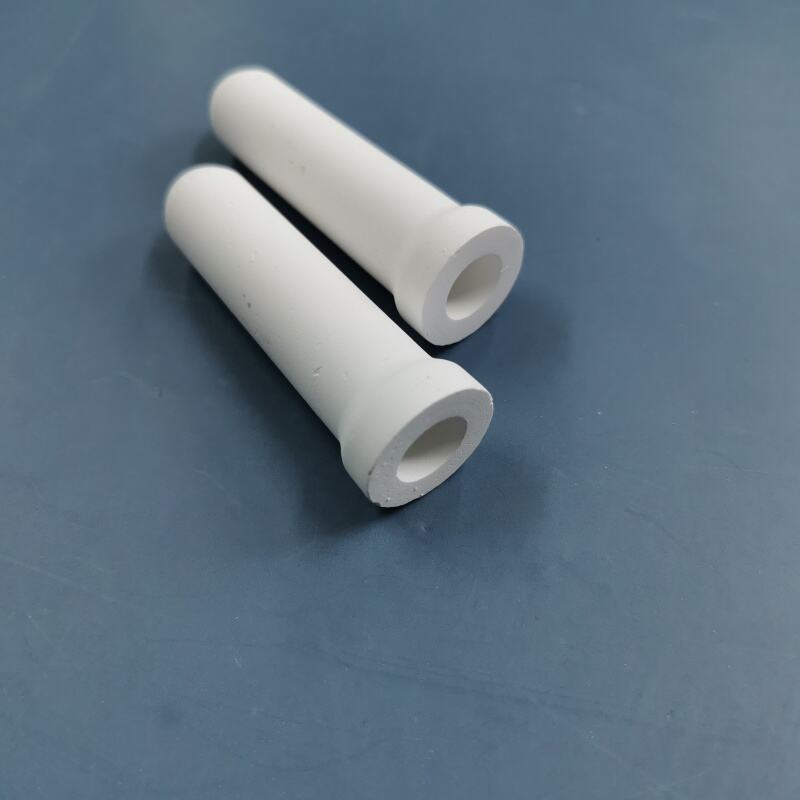

Micro porous ceramic tubes and rods for infiltration irrigation are suitable for infiltration irrigation systems and are the latest technology and materials for water-saving irrigation. Compared to traditional irrigation and popular sprinkler and drip irrigation in the market, it is more water-saving. Compared to other materials, it has the advantages of weathering resistance, acid and alkali resistance, and good hardness, making it suitable for various soil environments. It can also be used for automatic fertilization, where melted fertilizer is directly supplied to the roots of plants, achieving water-saving and fertilizer saving effects.
The entire system includes a filtration device, a pressure water storage device, a main pipeline, and a water distribution pipe. Micro porous ceramics are assembled on the water distribution pipe and buried in the roots of plants. According to the water demand of plants, the water pressure of the micro porous ceramic pipe is adjusted through the pressure water storage device to adjust the water infiltration rate of the micro porous ceramic pipe, and timely replenishment of water to the roots of plants can achieve the full utilization of water supply.
Parameter
| Item | Infiltration Cup |
Plant Water Absorbing Wick |
Electrode Wick | Ceramic Wick | Scented Ceramic | |
| White alumina | Silicon Carbide | |||||
| Density(g/cm³) | 1.6-2.0 | 0.8-1.2 | 1.8-2.2 | 0.8-1.2 | 1.6-2.0 | 1.7-2.0 |
| Open Porosity Rate (%) | 30-40 | 50-60 | 20-30 | 40-60 | 30-45 | 35-40 |
| Porosity Rate (%) | 40-50 | 60-75 | 25-40 | 60-75 | 40-50 | 40-45 |
| Water Absorption (%) | 25-40 | 40-70 | 10-28 | 40-70 | 25-40 | 25-35 |
| Pore Size (μm) | 1-5 | 1-3 | 1-3 | 1-3 | 1-5 | 1-10 |
