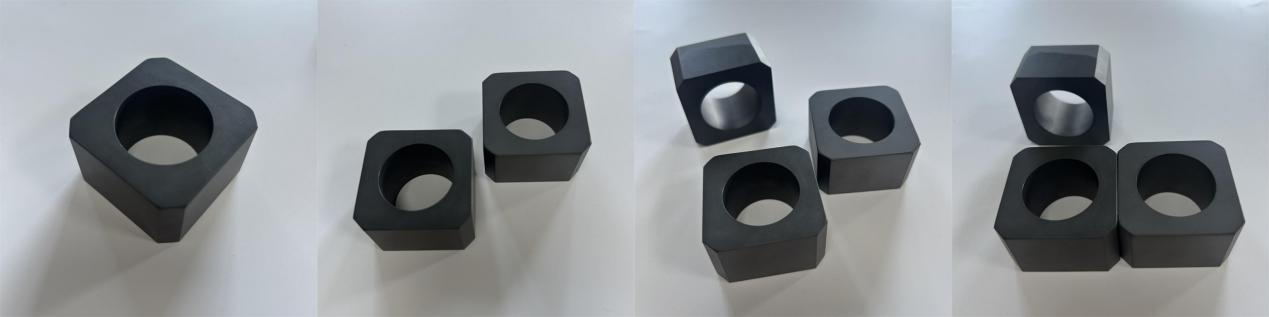

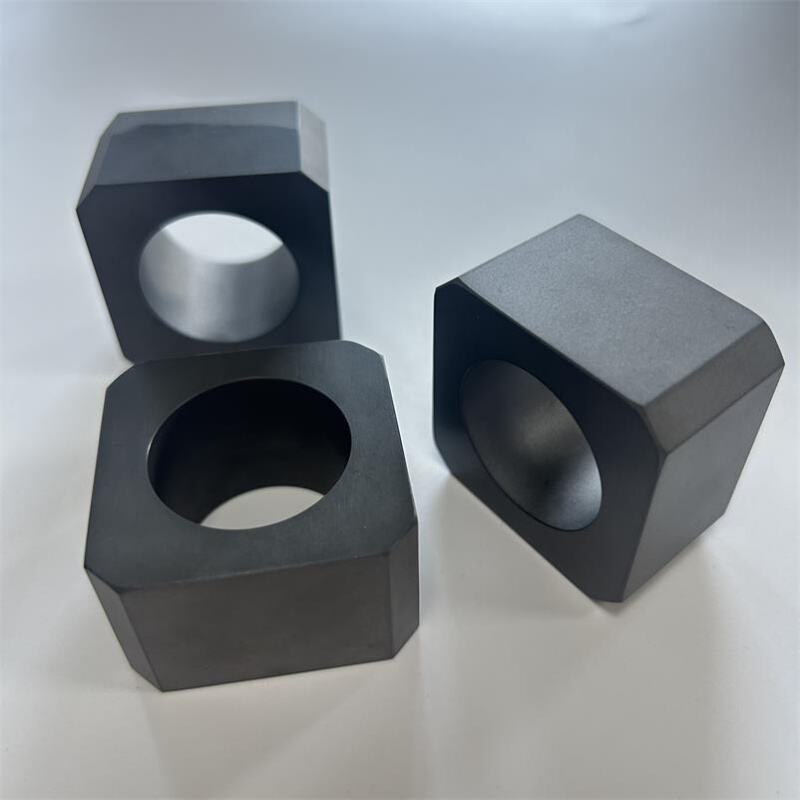

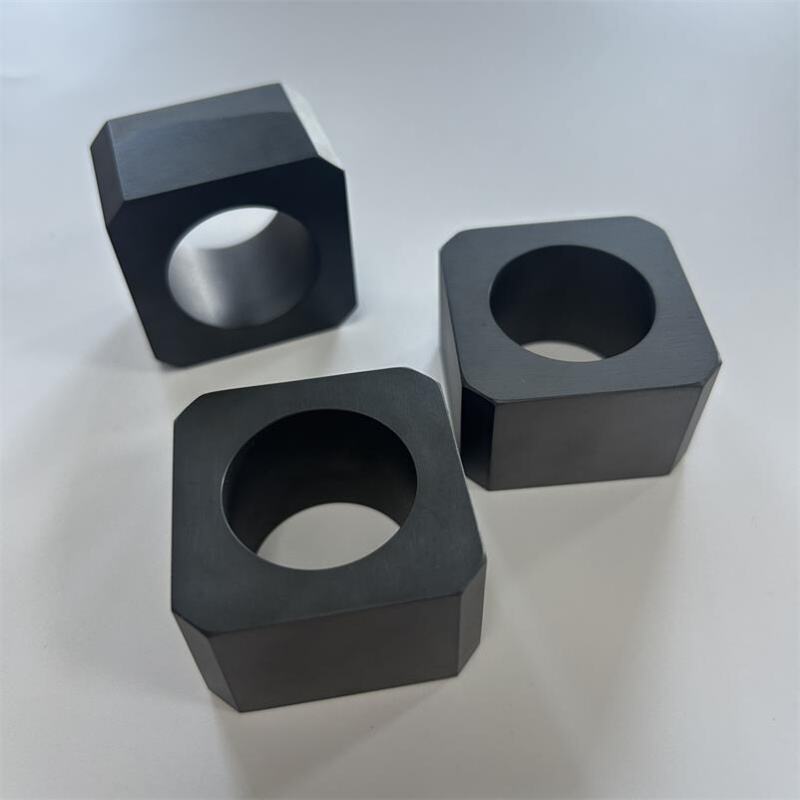

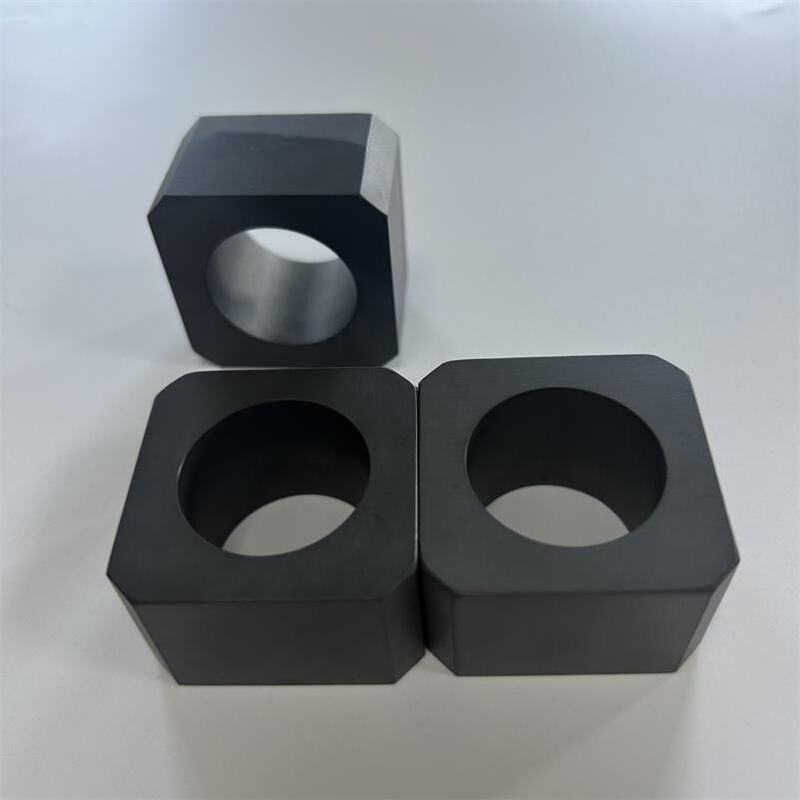

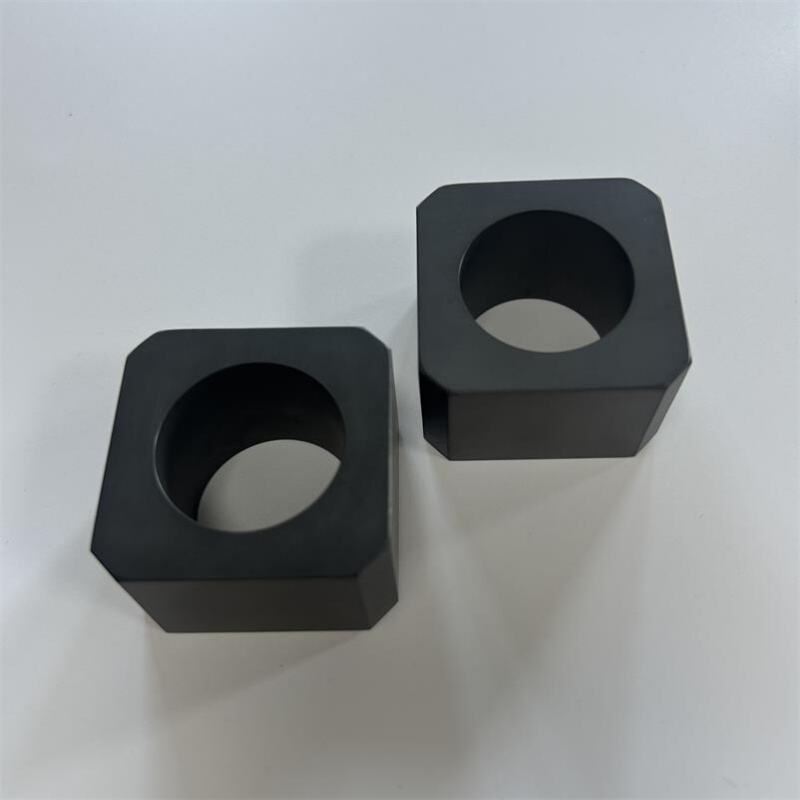

Boron Carbide B4C Neutron Shielding Block

B4C Neutron Shielding Blocks - Nuclear Power Boron Carbide Blocks

In the fields of nuclear energy, nuclear technology applications, and radiation protection, efficient and reliable neutron shielding is the final physical barrier to ensure safe operation. Boron carbide neutron shielding blocks, as an advanced material solution in this field, have become indispensable key components in nuclear reactor control, spent fuel management, and radiation protection equipment due to their excellent thermal neutron absorption capacity and stable physicochemical properties.

Nuclear-grade boron carbide materials can be applied in high-purity boron carbide neutron-absorbing spheres, high-purity boron carbide neutron-absorbing bricks, neutron detectors, neutron sensors, aluminum-based boron carbide materials, composite boron carbide neutron-absorbing spheres, boron-containing concrete, boron-containing carbon bricks, and more.

The company can mass-produce boron carbide control rod cores, boron carbide protective spheres, boron carbide shielding plates, boron carbide protective bricks, and other boron carbide products.

Products can be made in flat or curved shapes, with customizable dimensions ranging from 10-500mm, customizable thickness ranging from 0.2-80mm, and product density between 1.5-2.52g/cm3.

Product Details:

Natural boron (B) has two stable isotopes, B10 and B11. Among them, B10 has extremely high thermal neutron absorption capacity, with a cross-section up to 3837 barns, a wide absorption spectrum, and does not produce strong secondary radiation after neutron absorption, making post-processing convenient. It offers advantages such as highly efficient and stable neutron radiation absorption in the nuclear industry and no secondary radiation release.

The technology possessed by the company improves the material's purity. Additionally, the company has improved the sintering process, reducing the loss rate of boron carbide materials.

Advantages:

High-Efficiency Capture: The reaction cross-section is extremely large, which means that neutron flux can be efficiently attenuated even in very thin layers.

No Harmful Secondary Radiation: The ranges of the reaction products α and ⁷Li are extremely short (only micrometers in solids), and their energy is quickly dissipated as heat, producing no highly penetrating secondary γ rays. This greatly simplifies shield design and reduces the difficulty of subsequent radiation handling.

Product Features: Excellent Engineering Performance

Boron carbide shielding blocks are typically manufactured using advanced ceramic processes such as hot pressing or pressureless sintering, ensuring that the material meets the stringent performance requirements for nuclear applications:

High Absorption Efficiency: Through the use of ¹⁰B enrichment technology (enrichment can exceed four times that of natural boron), the neutron absorption capacity per unit mass is exponentially increased, forming the foundation for lightweight, compact shielding design.

Outstanding Physical Properties: Only second to diamond and cubic boron nitride in hardness, resistant to wear and abrasion; low density (about 2.5g/cm³), roughly one-third that of steel, effectively reducing equipment weight.

Excellent Environmental Stability: Resists high temperatures (can withstand above 1500°C for long periods in an inert atmosphere), thermal shock, and corrosion; shows minimal performance degradation under reactor high-temperature high-pressure water environments or long-term storage, resulting in a long service life.

High Customizability: Can be processed into plates, blocks, bricks, and various special shapes, and the thickness and boron content can be precisely designed according to neutron energy spectrum and spatial requirements, achieving an optimal balance between shielding performance and cost efficiency.

Manufacturing technique

In ceramic production, the company uses two processes: pressureless sintering and hot-press sintering. Products from different processes have different advantages and are suitable for various applications. Pressureless sintered ceramics offer high cost performance and are suitable for mass production. They are suitable for use as bulletproof materials, seals, nozzles, wear-resistant and heat-resistant materials, as well as commonly used nuclear power materials. Ceramics produced with hot-press sintering are suitable for small-scale production, can be made in larger sizes, and are suitable for use as nuclear power core materials, semiconductor materials, target materials, bulletproof materials, and more.

Compared with traditional shielding materials (such as boron-containing polyethylene, boron steel, and concrete), boron carbide shielding blocks have comprehensive advantages in high performance, long service life, and space efficiency. They are particularly suitable for critical situations where space is extremely limited, weight is a concern, or the working environment is harsh. They comply with relevant international standards such as ASTM C751, with stable and reliable quality, making them the preferred choice for high radiation fields and achieving precise radiation protection.

In summary, boron carbide neutron shielding blocks are not only the crystallization of advanced materials science but also the embodiment of nuclear safety culture.

Product Advantages:

• High purity
• Customizable specifications
• Stable quality
• High cost performance
• Flexible production schedule

Product Applications:

• Nuclear neutron shielding
• Nuclear power emergency avoidance
• Nuclear hazardous waste disposal
• Nuclear neutron detection
