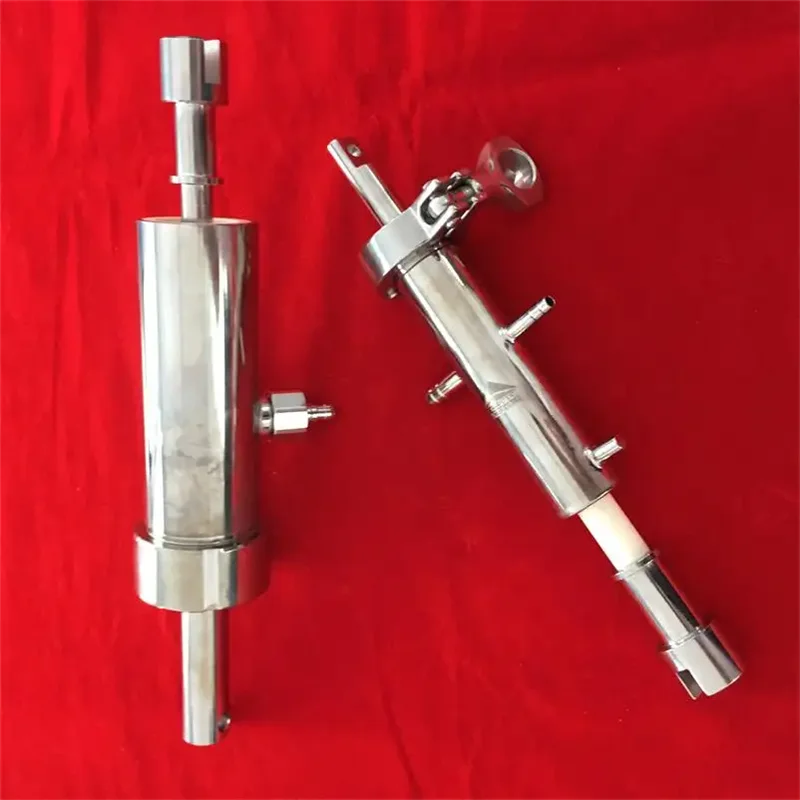

The reason ceramic dosing pump plungers last so long and keep accurate dosing is because they're made from special materials that beat regular metals hands down. Most plunger designs today rely on three main types of advanced ceramics: zirconia (which has the formula ZrO2), alumina (Al2O3), and silicon carbide (SiC for short). What makes these materials stand out? They have this super high Vickers hardness rating over 3.5 GPa, which basically means they won't bend or warp even when exposed to pressures above 50 MPa during operation. And let's talk numbers: ceramic plungers retain their shape about 98 percent better than stainless steel counterparts when subjected to repeated stress cycles. That kind of durability translates directly into fewer replacements and more consistent performance over time.
Thermal stability further enhances reliability. ZrO2 demonstrates near-zero thermal expansion (±2 ppm/K) between -20°C and 200°C, preventing microcracking and maintaining <0.1% dimensional variance—critical for repeatable dosing in fluctuating environments like chemical injection systems.
Precision machining amplifies these benefits. Using diamond grinding tools, manufacturers achieve ±1 μm tolerances, ensuring plunger diameters remain within 0.003% of specifications over 10,000+ hours. This micron-level consistency directly correlates with dosing accuracy, reducing volumetric drift to <0.5% annually in harsh chemical conditions, as noted in industry-leading research.
Ceramic dosing pump plungers leverage zirconia (ZrO2), alumina (Al2O3), and silicon carbide (SiC) for unmatched hardness and dimensional stability. These advanced ceramics achieve Vickers hardness values exceeding 1,500 HV, enabling precise fluid control even at pressures above 500 bar.
The high elastic modulus of alumina (380 GPa) and silicon carbide (420 GPa) minimizes radial expansion during operation. This ensures plunger-to-cylinder clearances stay within ±2 μm, directly contributing to dosing deviations below 0.5% across 10,000 cycles.
ZrO2 retains 95% of its room-temperature strength at 800°C, significantly outperforming metallic alternatives that lose 40–60% strength above 400°C. This thermal resilience prevents geometry changes in high-heat applications such as steam sterilization in pharmaceutical manufacturing.
Modern grinding techniques produce surface roughness (Ra) values of 0.05–0.1 μm on ceramic plungers. This sub-micron geometric accuracy reduces fluid slip losses by 18% compared to standard stainless steel components, according to ISO 22096:2022 pump efficiency benchmarks.
Zirconia (ZrO2) and alumina (Al2O3) demonstrate exceptional corrosion resistance when handling acids, alkalis, and solvents. Unlike metals, ceramics resist electrochemical degradation due to their covalent atomic bonds and lack of free electrons. They withstand exposure to 15% hydrochloric acid and pH 14 sodium hydroxide without pitting or material loss.
A 2024 comparative study found ceramic plungers outperformed stainless steel by 27–41% in sulfuric acid exposure over 500 operational hours. Their inert nature also eliminates galvanic corrosion risks in mixed-material systems—essential in chemical injection processes.
Unlike polymer-based plungers, which swell in organic solvents, ceramics maintain dimensional stability across pH 0–14. This prevents seal failures caused by expansion, a critical advantage in pharmaceutical systems handling acetone or ethanol. Ceramics also avoid hydrogen embrittlement issues common in titanium alloys during prolonged acid exposure.
By resisting chemical absorption and surface erosion, ceramic plungers preserve their original geometry and mass. This enables ±0.5% dosing accuracy over 10,000+ cycles in bleach dosing applications, compared to ±2.5% drift observed in PTFE components. Their stable surface chemistry prevents adsorption of reactive agents that could alter hydrodynamic behavior or plunger weight.
Zirconia and alumina ceramic plungers hold their shape down to the micron level even when subjected to pressures above 500 bar. With a Young's modulus ranging between 200 and 400 GPa, these materials resist bending or stretching, keeping displacement volume deviations below 1% after running through 10 million cycles. Unlike stainless steel alternatives, ceramics don't exhibit what engineers call the "spring effect" where components slightly rebound after compression. This matters because stainless steel plungers typically create dosing errors of around 0.3 to 0.5% when handling thick, viscous liquids. A study published last year in the Journal of Precision Engineering confirmed this finding, highlighting why many manufacturers are switching to ceramic solutions for critical applications.
Ceramic plungers retain 99.8% of their original surface finish after 5,000 hours of continuous operation, compared to 92% for hardened steel. This dimensional stability minimizes frictional variations that degrade dosing repeatability. In pH control systems, ceramic plunger pumps maintain ±0.25% flow consistency over 12-month intervals—outperforming metal variants by a 4:1 margin.
Advanced ceramics’ near-zero wear rates reduce calibration drift to <0.1% annually. Studies show ceramic plunger pumps maintain calibration accuracy within ±0.5% for over 50,000 service hours—three times longer than conventional materials. This level of stability is vital in pharmaceutical applications where USP <797> standards require less than 1% dosing variance in sterile compounding.
Ceramic dosing pump plungers are essential in high-precision industries such as pharmaceutical manufacturing and semiconductor fabrication. Their resistance to reactive fluids ensures reliable performance in water treatment for disinfectant dosing, maintaining ±0.5% accuracy over 10,000+ hours. In semiconductor wet etching, zirconia plungers deliver <5 μm dosing repeatability—necessary for nanoscale circuit patterning.
According to the latest market analysis for plunger dosing pumps in 2024, industries have seen around 22% yearly growth when it comes to using advanced ceramics instead of traditional materials. This is mainly because these ceramic components stand up much better against abrasive substances and harsh chemicals that would normally wear down metal parts. The food processing industry has started switching to silicon carbide plungers for those tough cleaning processes known as CIP systems. This change helps prevent any unwanted metal particles from getting into food products during production. In renewable energy fields too, we're seeing ceramics being used for measuring electrolytes in hydrogen generation setups. Metal parts just don't last long there since they corrode so quickly. Many manufacturers are now mixing CVD coatings with alumina bases to handle the really high temperatures required in biodiesel operations. As companies look for ways to improve efficiency while reducing maintenance costs, this trend toward ceramic solutions seems here to stay across multiple industrial applications.
