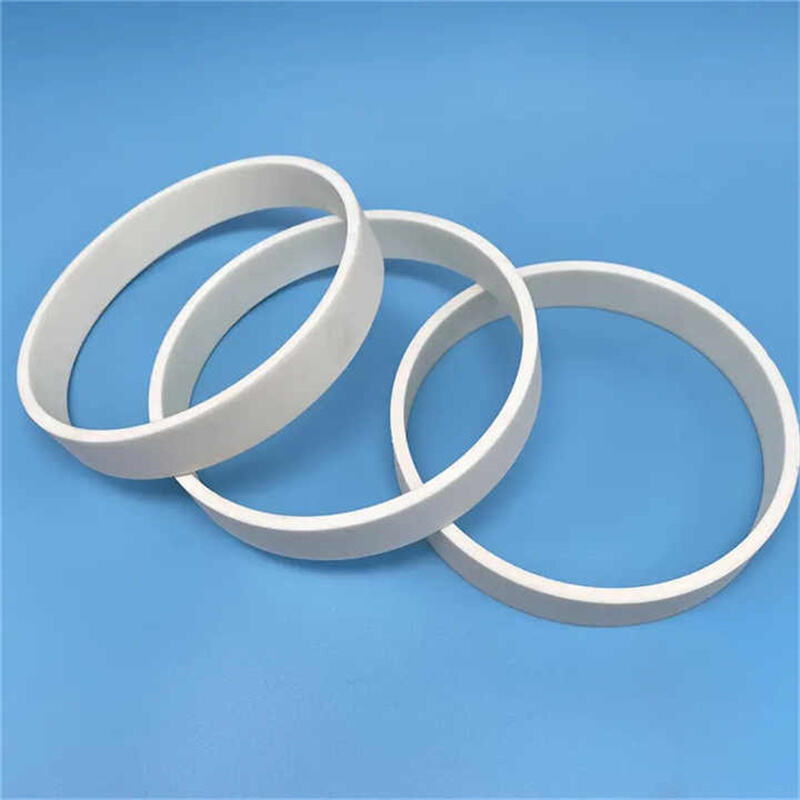

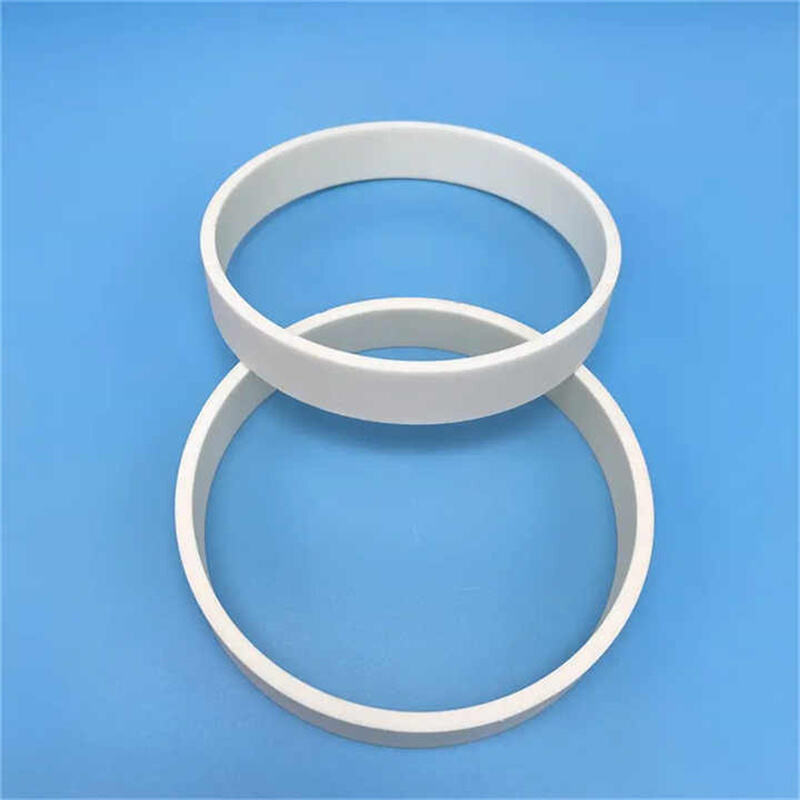

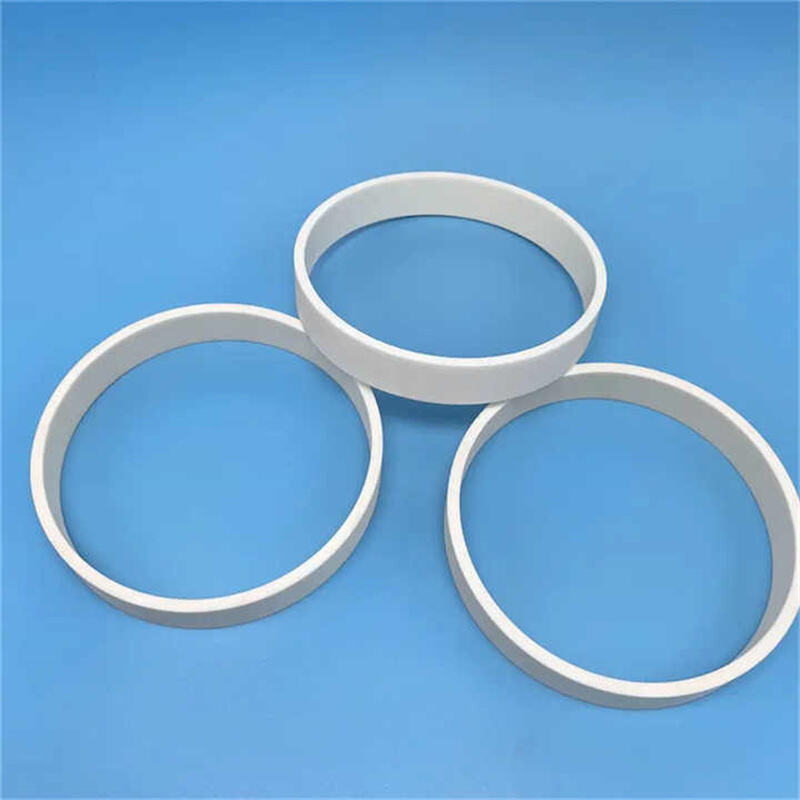

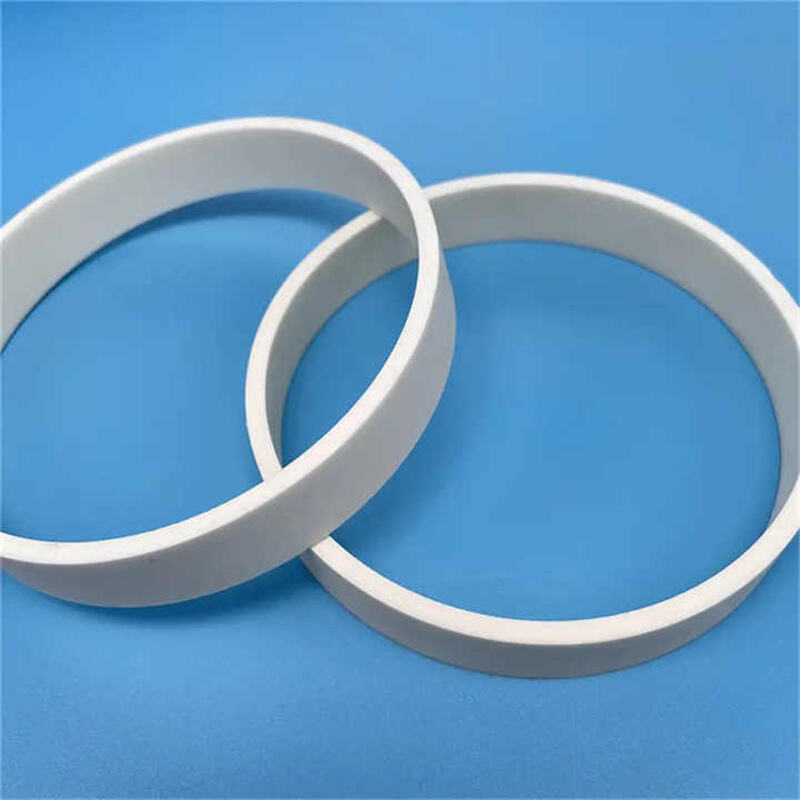

1. Overview of Alumina Ceramic Ring
1.1 Product Brief Introduction
The alumina ceramic ring is a precision structural ceramic component manufactured with high-temperature sintered alumina material. We supply 95%, 99% and 99.5% alumina grades. Different from ordinary metal and plastic rings, it integrates high mechanical strength, excellent high-temperature stability, superior insulation and corrosion resistance. It is a durable precision part tailored for high-temperature equipment, electronic insulation and mechanical wear-resistant assemblies. The product adopts integral sintering and precision machining molding, with compact structure and smooth burr-free surface. It can work stably under high temperature and corrosive atmosphere, solving the problems of oxidation, deformation and rapid abrasion of metal accessories in harsh working environments.
1.2 Production Technology
The alumina ceramic ring is manufactured through dry pressing and high-temperature sintering technology. High-purity alumina powder is shaped by mold pressing or isostatic pressing, then sintered at ultra-high temperature to achieve dense bulk density. After sintering, the blank undergoes precision grinding and inner/outer diameter polishing to guarantee high dimensional accuracy. All dimensional specifications including inner diameter, outer diameter, thickness and special grooves can be customized according to customer drawings, adapting to different industrial equipment.
2. Core Characteristics
2.1 Excellent High Temperature Resistance
99% alumina grade supports continuous working temperature up to 1600°C. It maintains stable physical properties under long-term high-temperature conditions and will not soften or deform inside heating devices.
2.2 High Flexural Strength
The flexural strength reaches up to 550 MPa for 99% alumina material. It owns outstanding structural rigidity and resists breakage under external pressure and mechanical load.
2.3 Zero Water Absorption & Dense Sintered Structure
95% and 99% alumina rings achieve zero water absorption. The compact body blocks penetration of corrosive gas and liquid, greatly improving service life in alkali and high-humidity environments.
2.4 Controlled Thermal Expansion Performance
The thermal expansion coefficient ranges from 7.0~7.9 ×10⁻⁶/°C (25-1000°C). Stable expansion performance reduces cracking risks caused by frequent heating and cooling cycles.
2.5 Superior Electrical Insulation
Alumina ceramic features high volume resistivity at high temperature, providing reliable electrical isolation. It effectively avoids short-circuit risks for electronic assemblies operating under high temperature.
2.6 Reliable Batch Consistency
High-temperature sintered alumina material delivers stable mechanical properties between batches. Each batch of alumina rings maintains uniform quality, which benefits stable equipment operation and standardized spare part management.
3. Core Advantages
3.1 Extended Service Life
The combination of high hardness, dense microstructure and corrosion resistance brings long-lasting wear performance. Under identical working conditions, it has a far longer service cycle than ordinary metal and plastic rings, lowering equipment shutdown and replacement frequency.
3.2 Stable Equipment Operation Accuracy
Precision machined smooth surface and stable dimensional property ensure consistent assembly accuracy during long-term continuous operation. It effectively reduces equipment jitter and assembly clearance changes.
3.3 Reduced Maintenance Cost
Alumina ceramic will not rust and resists most acid, alkali and oil mediums. It does not require frequent anti-corrosion treatment or lubrication maintenance, cutting long-term operation management costs.
3.4 Customized Dimensional Flexibility
We support full customization according to customer drawings, including inner diameter, outer diameter, thickness, step surface and groove structure. We can provide matched specifications for heating furnaces, electronic equipment and automation machinery.
3.5 Safe and Stable Operation
Good thermal shock resistance lowers fracture risks during temperature fluctuation. Excellent insulation avoids electric leakage risks, supporting safer continuous production.
4. Main Application Fields
4.1 High-Temperature Furnace Accessories
Used as positioning rings, isolation rings and support rings inside tube furnaces, box furnaces and industrial sintering kilns for high-temperature component separation and positioning.
4.2 Electronic & Semiconductor Equipment
Applied as insulating sealing rings and spacing rings for electronic components, power modules and thermal testing fixtures to achieve high-temperature electrical isolation.
4.3 Automation & Wear-Resistant Machinery
Serves as wear-resistant guide rings, limit rings for textile machinery, packaging equipment and precision automation assemblies.
4.4 Thermocouple & Temperature Measuring Equipment
Used as insulating positioning rings for temperature measuring probes, isolating thermocouple wires and preventing short circuits.
4.5 Chemical Corrosion Resistance Equipment
Suitable for medium isolation and mechanical positioning in low-melting molten liquid, oxidizing corrosive gas environment.
4.6 Equipment Spare Parts Supply
Supplied as replacement wear-resistant and high-temperature resistant spare parts for equipment upgrading and maintenance projects. Factories can replace vulnerable metal parts with alumina ceramic rings to reduce overall operating expenses.
5. Technical Data
| The main chemical ingredient |
|
|
Al2O3 |
Al2O3 |
Al2O3 |
| Bulk Density |
|
g/cm3 |
3.6 |
3.89 |
3.4 |
| Maximum Use Temperature |
|
|
1450°C |
1600°C |
1400°C |
| Water absorption |
|
% |
0 |
0 |
< 0.2 |
| Flexural strength |
20°C |
MPa (psi x 103) |
358 (52) |
550 |
300 |
| Coefficient of thermal expansion |
25 - 1000°C |
1×10⁻⁶/°C |
7.6 |
7.9 |
7 |
| Coefficient of thermal conductivity |
20°C |
W/m·K |
16 |
30 |
18 |
