99% Alumina Ceramic Roller Textile Yarn Guide Al2O3 Part For Textile Machining

99% Alumina Ceramic Roller Textile Yarn Guide Al2O3 Part For Textile Machining

1. Definition & Core Function Positioning

Textile ceramics are indispensable structural ceramic components widely applied in textile manufacturing equipment.

2. Material Basis & Fundamental Working Mechanism

Manufactured from high-hardness, low-friction alumina and zirconia ceramic materials, textile ceramics effectively guide and support high-speed running yarns, greatly reducing yarn wear and friction resistance of yarn paths.

3. Performance Advantages Over Metal & Plastic Fittings

Compared with traditional metal and plastic textile fittings, high-quality textile ceramics can boost the service life and surface precision of guiding parts by dozens to hundreds of times, while minimizing yarn breakage rate during high-speed spinning operation.

4. Practical Value for Textile Production Equipment

The above superior characteristics fundamentally improve the production efficiency of textile machinery and the surface quality of finished yarns, lowering routine maintenance frequency and long-term accessory replacement costs.

Introduction

Product Details

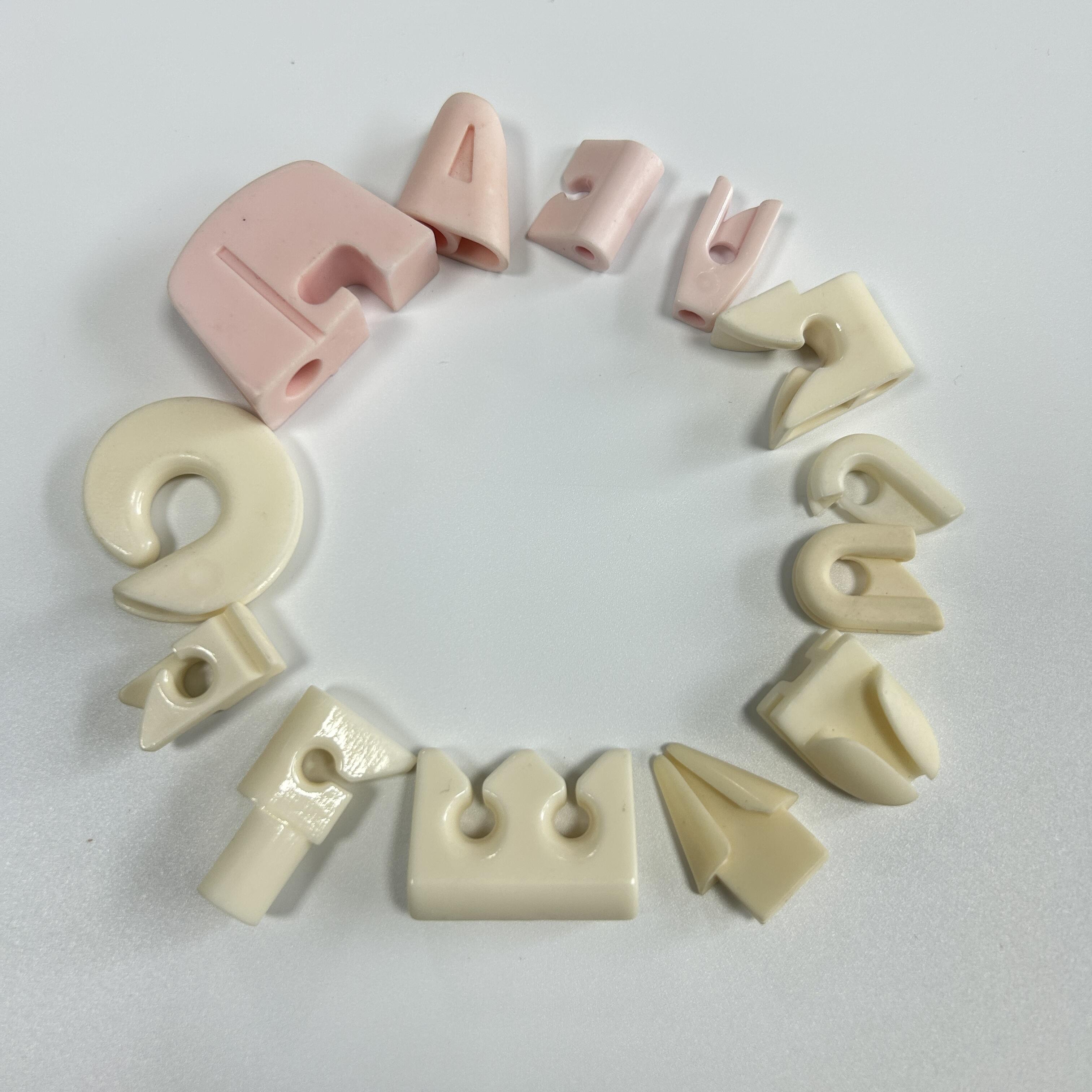

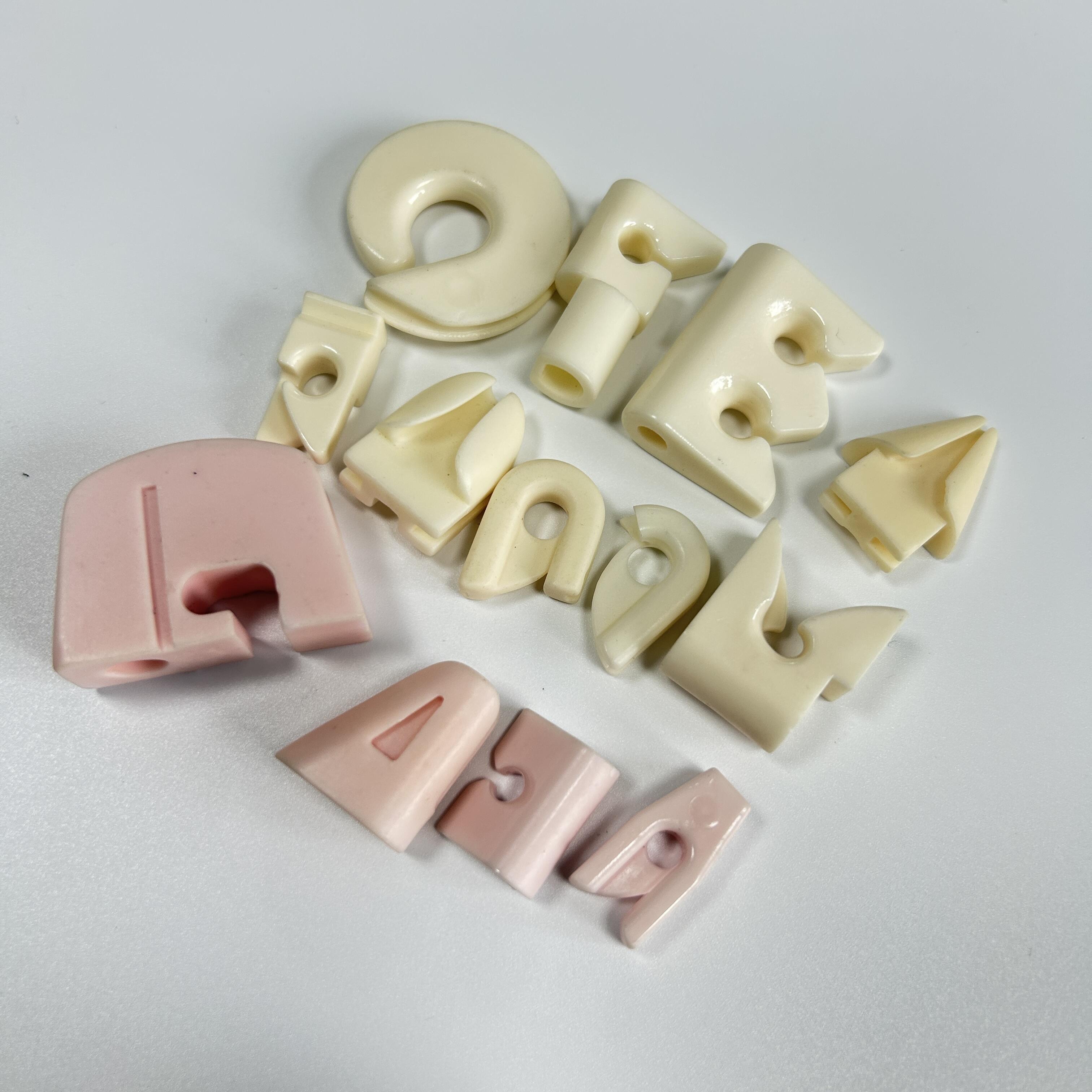

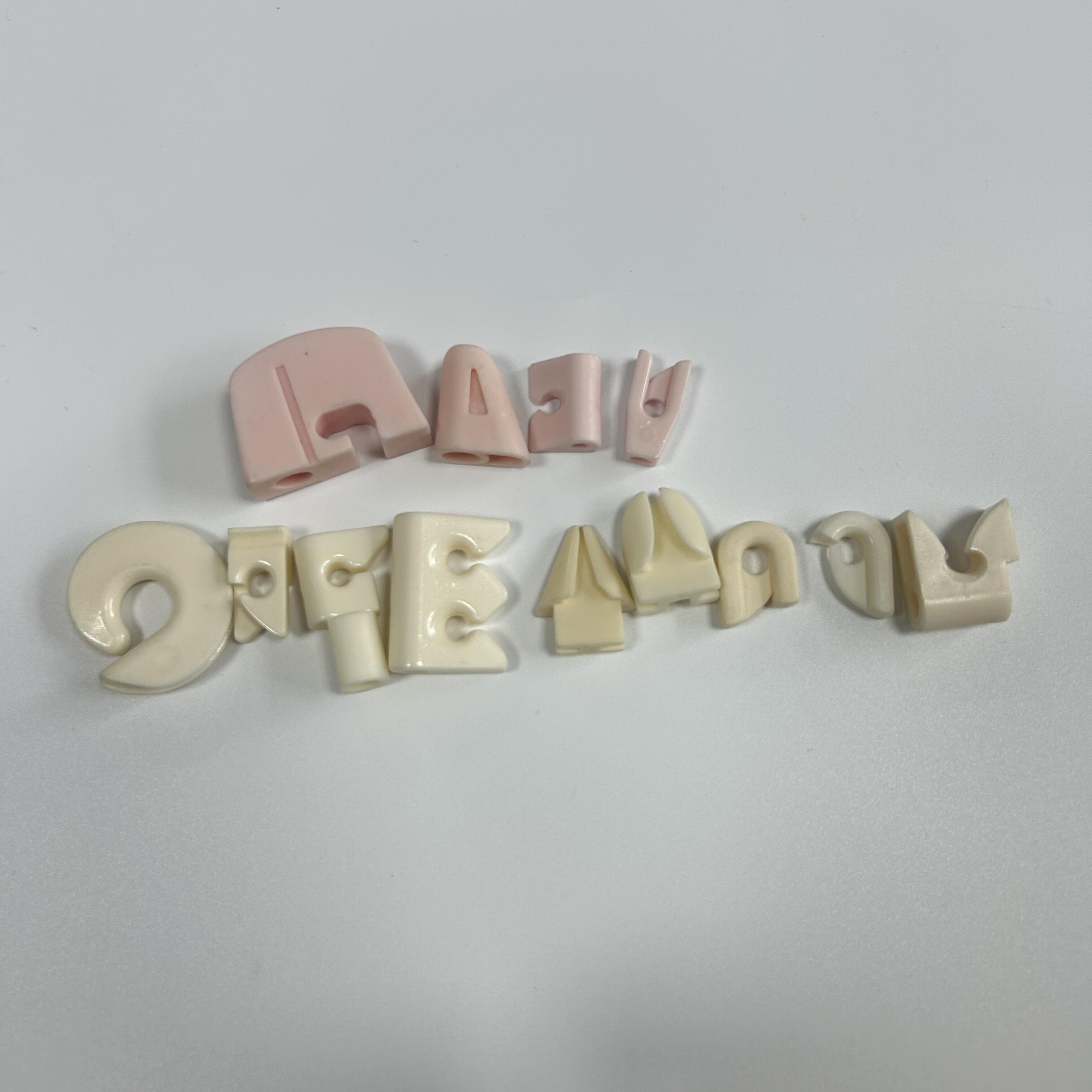

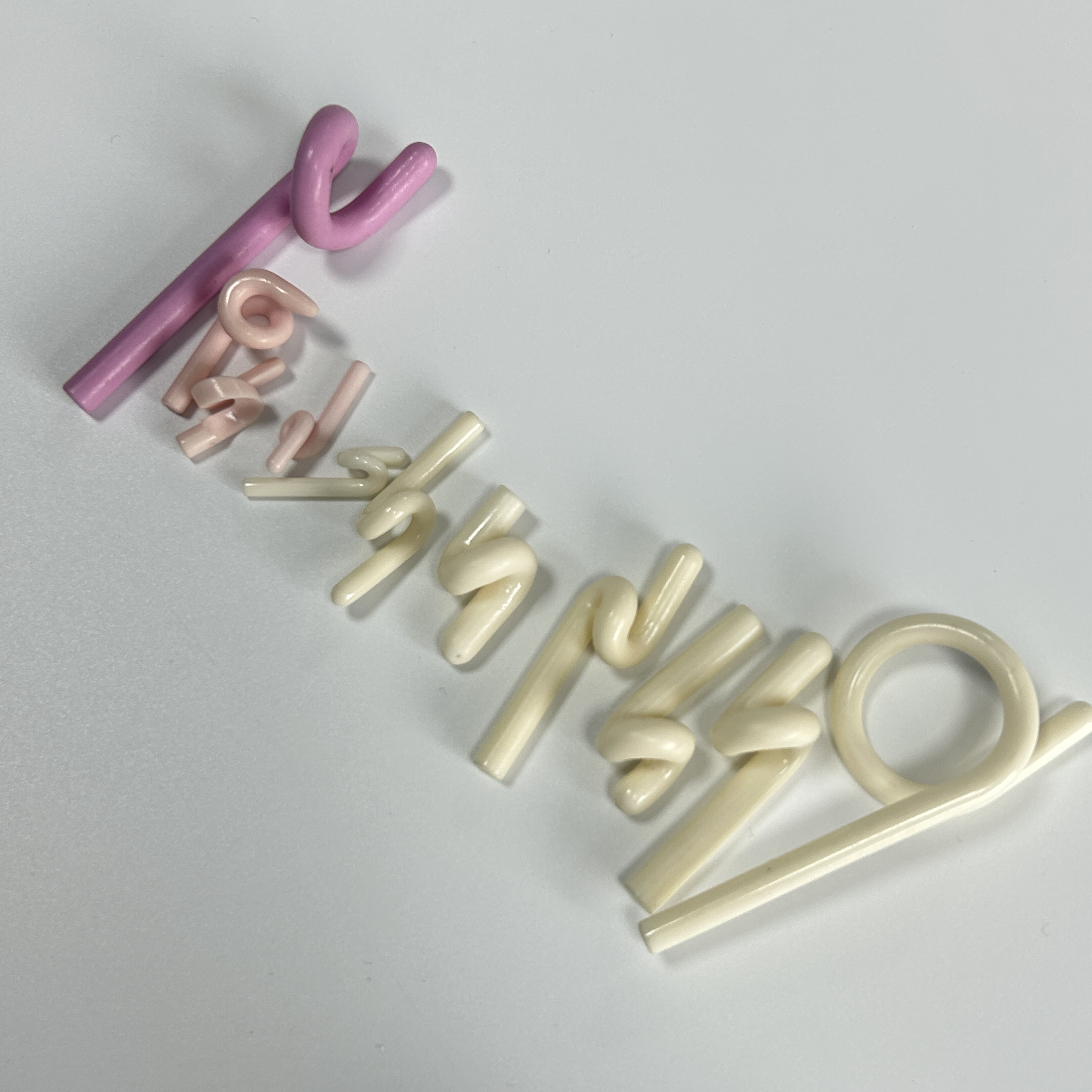

1. Overview of 99% Alumina Ceramic Textile Yarn Guide Roller

99% alumina ceramic yarn guide roller is a high-precision wear-resistant structural ceramic component widely applied in various textile manufacturing equipment. It is typically made of high-purity 99% Al₂O₃ ceramic raw material, manufactured through high-temperature isostatic pressing sintering, precision grinding and ultra-fine mirror polishing processes. By guiding, supporting and steering high-speed running yarns with an ultra-smooth, low-friction ceramic surface, this ceramic part significantly reduces yarn abrasion, end breakage rate and hairiness generation during continuous production. As a high-performance alternative to traditional metal and plastic yarn guiding fittings, it is one of the most fundamental and critical wear parts in spinning, weaving and chemical fiber processing lines, directly determining the operating efficiency of textile machinery and the surface quality of finished yarn products.

2. Core Characteristics of 99% Al₂O₃ Ceramic Yarn Guides

2.1 Ultra-High Surface Hardness & Wear Resistance

99% alumina ceramic reaches Mohs hardness level 9, far exceeding stainless steel, chrome-plated metal and engineering plastic materials. This superior hardness endows the yarn guide roller with exceptional long-term abrasion resistance. Under long-term continuous friction with high-speed yarns, the ceramic surface is not prone to scratches, grooves or surface peeling, and can maintain its initial smooth surface precision for a long time, ensuring consistent yarn guiding trajectory and stable performance throughout the entire service cycle.

2.2 Ultra-Low Friction Coefficient & Yarn-Friendly Surface

The working surface of the ceramic yarn guide is processed by ultra-precision mirror polishing, with a surface roughness Ra controlled below 0.2μm. The burr-free, flawlessly smooth ceramic surface delivers an extremely low friction coefficient, which will not hook or scratch delicate yarns. It effectively reduces friction resistance during yarn running, minimizes yarn hairiness generation, and avoids yarn strength loss caused by abrasive contact with hard guiding parts.

2.3 Stable Dimensional Precision & High Rotation Balance

High-precision ceramic yarn guide rollers are manufactured through tight-tolerance forming and finish machining, with dimensional accuracy controlled at the micron level. The product features excellent coaxiality and circular runout precision, maintaining outstanding dynamic balance performance under high-speed rotation. It will not generate eccentric vibration, thus ensuring uniform and stable yarn tension, and avoiding yarn tension fluctuation and end breakage caused by component jitter during high-speed operation.

2.4 Excellent Chemical Corrosion Resistance

99% alumina ceramic has stable chemical inertness and can resist erosion from various textile oils, sizing agents, dyestuffs and weak acid/alkali environments in textile production. The ceramic surface will not rust, oxidize or produce corrosion spots after long-term contact with textile auxiliaries, always maintaining a smooth working surface and eliminating yarn contamination caused by rust impurities from metal parts.

2.5 Outstanding Thermal Stability Under High-Speed Operation

Alumina ceramic features excellent thermal shock resistance and thermal stability. Under local temperature rise caused by continuous high-speed friction, it will not suffer from thermal deformation, performance degradation or cracking. Its physical properties remain stable across a wide temperature range, making it fully adaptable tocontinuous high-temperature operating conditions of high-speed spinning machines and high-speed looms.

3. Key Advantages Over Traditional Metal & Plastic Yarn Guides

3.1 Drastically Improve Production Running Efficiency

By optimizing the wear resistance and low-friction performance of the yarn guiding contact surface, ceramic yarn guide rollers greatly reduce yarn running resistance and cut down equipment downtime caused by frequent yarn breakage. Compared with ordinary metal yarn guiding parts, they effectively improve equipment operating rate, reduce the frequency of yarn joining operations for operators, and support continuous, high-speed textile production.

3.2 Extend Service Life & Reduce Maintenance Costs

The wear service life of ceramic material is dozens of times that of chrome-plated metal yarn guides, and hundreds of times that of plastic yarn guiding fittings. The ultra-long service life greatly reduces the replacement frequency of yarn guiding components, lowers spare parts procurement costs and time loss from equipment shutdown maintenance, helping textile enterprises cut long-term production and operation costs.

3.3 Improve Finished Yarn Surface Quality

The smooth, damage-free ceramic guiding surface significantly reduces yarn hairiness, neps and scratch defects, and improves yarn evenness and surface smoothness. The appearance quality of finished yarns and their downstream weaving performance are obviously improved, which directly upgrades the quality grade of end fabrics and enhances the market competitiveness of textile products.

3.4 Adapt to Harsh & Complex Processing Environments

Ceramic yarn guide rollers are not affected by harsh working conditions such as humidity, oil contamination, chemical auxiliaries and high/low temperatures. They maintain stable performance even in harsh environments like high-temperature chemical fiber spinning and wet dyeing and finishing processes. Its insulating and anti-static properties also reduce static accumulation on yarns, lowering the interference of static electricity on yarn running and workshop production.

4. Global Industrial Application Scenarios

4.1 Chemical Fiber & Filament Spinning Lines

Applied in spinning machines, winders and texturing machines for various chemical filament yarns such as polyester, nylon and spandex, adapting to the strict working conditions of high-speed spinning and ensuring smooth and low-loss yarn guiding process for filament products.

4.2 Cotton & Wool Short Fiber Spinning Equipment

Matched with roving, spinning and winding processes of cotton and wool spinning equipment including ring spinning, open-end spinning and vortex spinning systems, reducing hairiness and breakage of staple fiber yarns and improving the quality of spun yarns.

4.3 High-Speed Warping & Sizing Machines

Used as yarn guiding and yarn separating parts on warping machines and sizing machines, ensuring uniform warp yarn arrangement and consistent tension, avoiding yarn adhesion and abrasion during sizing, and guaranteeing the smooth progress of subsequent weaving processes.

4.4 Textile Dyeing & Finishing Processing Lines

Adapted to dyeing machines, setting machines and stenters in dyeing and finishing plants, withstanding dyestuffs and high-temperature humid-heat environments, avoiding fabric contamination caused by rust of metal parts, and ensuring the appearance quality of finished dyed and finished products.

4.5 Technical & Specialty Textile Manufacturing

Applied in production and processing equipment for high-performance specialty fibers such as glass fiber, carbon fiber and aramid fiber, meeting the high-strength, high-wear-resistance yarn guiding demands, and supporting stable production of high-end industrial textiles.

Product Parameter Table

Item	Unit Symbol	95% Alumina Ceramics	99% Alumina Ceramics	99.7% Alumina Ceramics
Maximum Using Temperature	℃	1450	1600	1600
Water Absorption	%	0	0	0
Hardness	Gpa	≥85	≥89	≥89
Flexural Strength	MPa (psi x 103)	336	550	550
Compressive Strength	MPa (psi x 103)	2000	2500	2500
Fracture Toughness	Mpa	4~5	5.6	6
Thermal Conductivity	W/m °K	18-25	30	30.4
Thermal Shock Resistance	°C	220	180-220	180-220
Dielectricity Constant		9.4	9.8	9.8

Surface Finish	Material	Surface Roughness(μm)	Main Application
Standard	SA-101	0.4-0.6	High quality guides
	SA-102	0.4-0.8	Thread guides
	SA-103	0.8-1.8	Thread guides
Smooth Polish	SA-101	0.2-0.4	High quality guides
	SA-102	0.2-0.4	Thread guides
	SZA-201	0.2-0.4	High quality guide
	SBT-302	0.2-0.4	Thread guides
High Polish	SA-101	<0.2	High quality guides
	SA-102	<0.2	High quality guides
	SYT-301	<0.2	Thread guides
Special Finish	SA-101	0.3-0.4	Special quality guides

Development History

Patents and certification

We’ve obtained various global certifications including CE, EMC, LVD, RoHS, FDA, MSDS, ISO 9001, SGS and TUV. We also own eight registered trademarks and forty technical patents to support independent R&D.

Our proprietary core technologies run through all product lines: porous ceramics, industrial ceramic components, special glass, metallized ceramics, liquid absorption cotton, ozone generators and silicone goods. All products are manufactured in strict accordance with international quality standards, delivering reliable and high-performance solutions that have gained wide recognition and market trust worldwide.

新建 PPTX 演示文稿_02.png

Package

We adopt scientific and standardized packaging solutions tailored to product characteristics to effectively prevent collision, extrusion, dust and moisture damage. With mature global transportation system and strict shipment inspection procedures, we ensure all products remain intact and stable during long-distance delivery, providing customers with safe, efficient and reliable one-stop logistics service.


FAQ

01 Question: Can you produce based on customers’ drawings or physical samples?

Answer: Absolutely yes. We accept technical drawings in all mainstream file formats as well as actual physical samples. Before formal production, our engineering team will provide a full professional DFM feasibility evaluation for your reference.

02 Question: How long is the production lead time for custom orders?

Answer: Sample lead time: 3–7 working days. Custom mold lead time: 5–10 working days (we will confirm the cycle separately with you for complex molds). Mass production lead time: 7–20 working days, depending on product structure complexity and order quantity.

03 Question: What’s your minimum order quantity for custom products?

Answer: We provide flexible MOQ solutions for all customized items. We will try our best to set a low minimum order volume to support your small-batch trial orders, meanwhile we can handle stable mass production to satisfy your long-term bulk demands.

04 Question: What customization services can you provide?

Answer: We support comprehensive one-stop customization, including product size, shape, appearance, precision tolerance, surface treatment, hole grooving, bending, cutting and adjustable high-temperature resistant parameters. Custom engraved LOGO and exclusive customized packaging are also available as extra personalized options upon request.

05 Question: Do you accept third-party inspection of finished products?

Answer: Yes, we fully cooperate with all mainstream authorized third-party testing institutions. Well-known organizations such as SGS, BV and other internationally recognized inspection bodies are all acceptable. We can supply complete official inspection reports and material certification documents as you require.

06 Question: Can you customize raw material options for products?

Answer: Sure. We can select and match appropriate raw materials according to your application scenarios, working conditions and performance requirements, including alumina, zirconia, quartz, silicone and other special engineering materials, and adjust related performance parameters to meet your usage standards.
