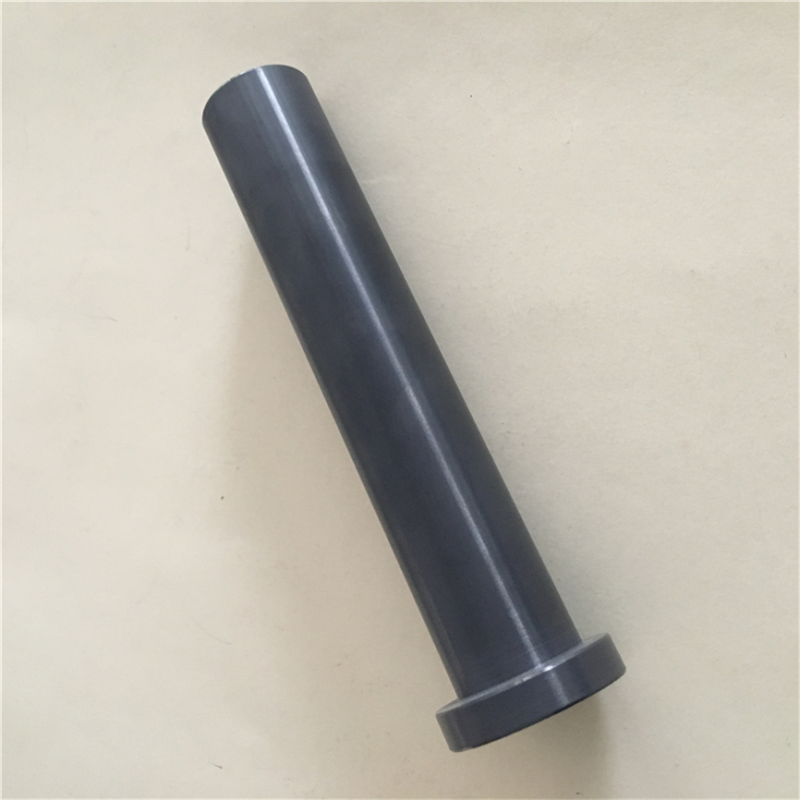

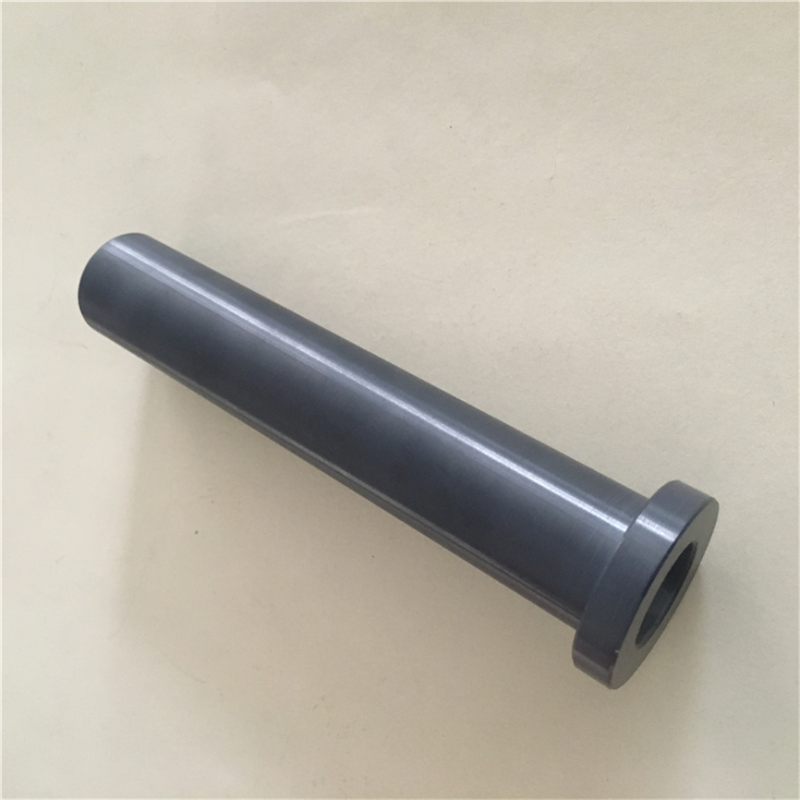

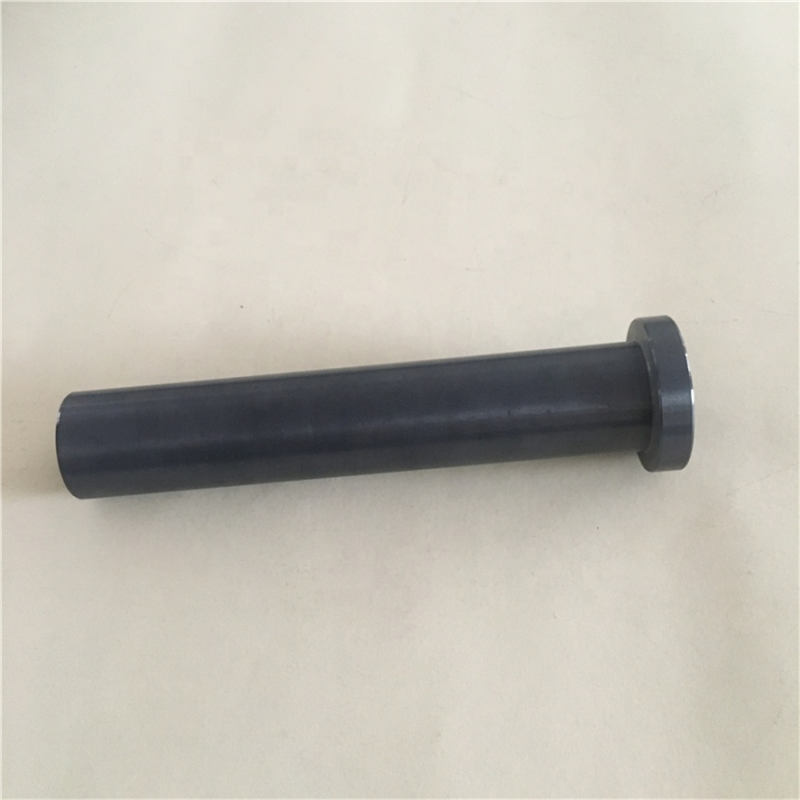

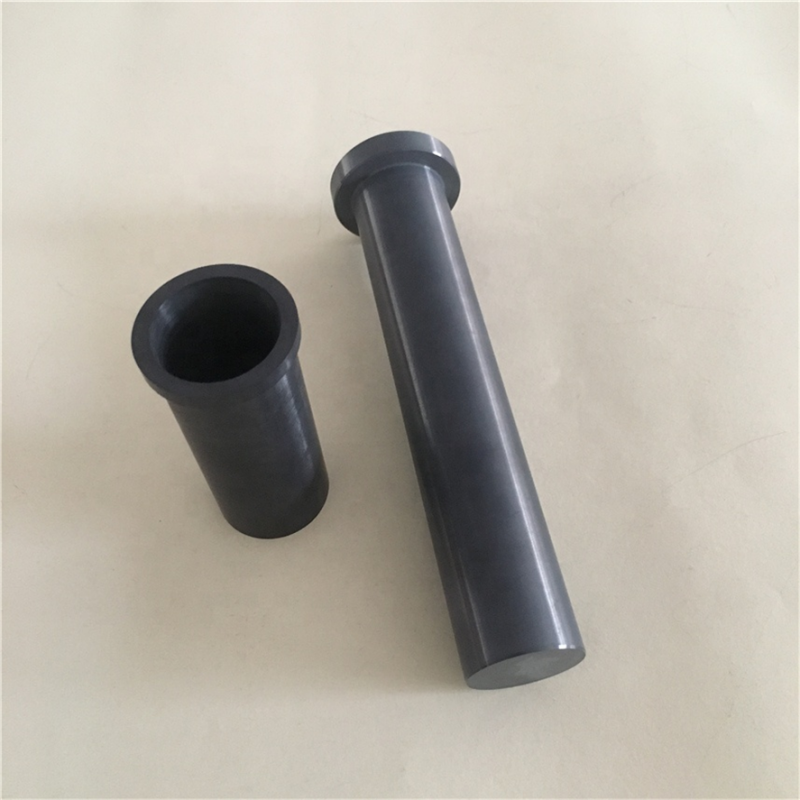

High Temperature Resistant Silicon Nitride Riser Tube for Low Pressure Casting

Brief

Silicon nitride riser tube is formed by isostatic pressing and sintered under gas pressure, which has excellent compactness and maintain high mechanical strength under high temperature conditions. It can effectively avoid the risk of damage and air leakage during use, which lifetime can be more than ten times that of traditional riser tubes. It not only can improve the quality of castings, but also can reduce the operating cost of aluminum casting significantly.

Details

Silicon nitride riser tubes are pivotal components in low - pressure casting systems, specially designed to enable the controlled transfer of molten metals (including aluminum, magnesium, and their alloys) from holding furnaces to casting molds. Manufactured from high - purity silicon nitride ceramic, these tubes demonstrate exceptional thermal stability. This remarkable heat resistance is combined with superior corrosion resistance against aggressive molten metals, ensuring minimal wear and an extended service life even in the harsh environments of casting processes. In contrast to traditional metal or inferior ceramic alternatives, silicon nitride riser tubes retain their structural integrity under thermal cycling, thus reducing the risk of cracks or breakage that might interrupt production.

Furthermore, the high mechanical strength and hardness of silicon nitride contribute to excellent abrasion resistance, which is crucial for enduring the constant flow and friction of molten metal during the casting process. This durability leads to fewer replacements, lower maintenance costs, and enhanced operational efficiency for foundries. The precision manufacturing of these riser tubes guarantees tight dimensional tolerances, allowing for seamless integration with casting machinery and facilitating consistent, high - quality casting outcomes. Whether utilized in the production of automotive components, such as engine blocks, wheel hubs, or the manufacturing of aerospace parts, silicon nitride riser tubes provide reliable performance. They help to improve casting precision, reduce defect rates, and optimize the overall productivity of low - pressure casting operations.

Compared to traditional metal pipes: such as heat-resistant steel and cast iron, or inferior ceramic alternatives (such as ordinary alumina ceramics), the core advantage of silicon nitride riser pipes is more reflected in their thermal cycle stability: after 200-300 thermal cycles, the pipe wall of traditional metal pipes is prone to cracking due to thermal stress, while silicon nitride riser pipes can maintain structural integrity even after more than 1000 cycles of cold and hot alternation, reducing the production interruption rate caused by pipe fracture from over 15% of traditional pipes to less than 2%, significantly improving the continuous operation capacity of the production line.

From the perspective of application scenarios, the adaptability of silicon nitride riser far exceeds that of basic fields: in the production of automotive parts, in addition to engine cylinder blocks and wheel hubs, it can also be used for casting aluminum alloy shells for new energy vehicle motors; In the aerospace field, for precision castings such as turbine blade blanks and fuselage structural components, the smooth inner wall can reduce turbulence during metal liquid filling and reduce defect rates such as porosity and inclusions by more than 30%; In the field of rail transit, the fatigue resistance of aluminum alloy connectors for high-speed railway carriages can withstand many production cycles per day, ensuring the consistency of performance of batch castings.

Parameter
